Fortinet FortiGate-80F-BYPASS with 3-Year FortiCare & FortiGuard Bundle

VENDOR: FORTINET Mfg Part#: FG-80F-BYPASS-BDL-809-36
1 3

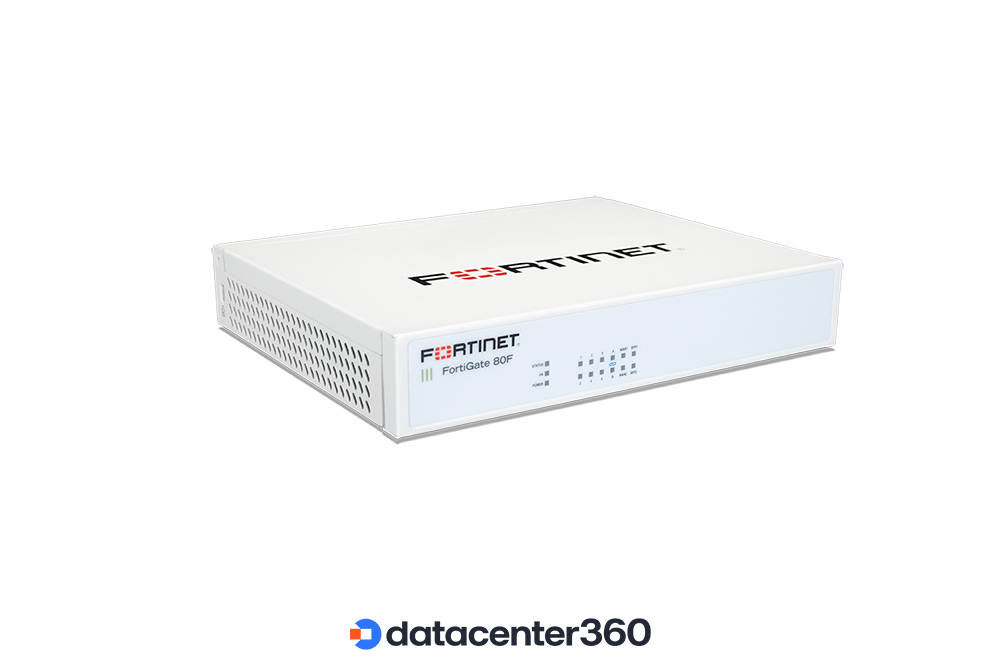

Photo is for illustration purposes only. Actual product may be different.
$3,998.31
$3,998.31
Sale Sold out
MSRP: $5,459.82
Shipping calculated at checkout.
  • Form factor: Desktop with 14 Ethernet ports
  • Supports 1.5 million concurrent sessions and 45,000 new sessions/sec
  • 1.4 Gbps intrusion prevention throughput and 6.5 Gbps IPSec VPN performance
  • Gigabit Ethernet connectivity with 1 Gbps data transfer rate
  • Includes 3-Year FortiCare Premium and FortiGuard Enterprise Protection
  • Low power consumption (15.4W) and compact size (8.5" x 7" x 1.6")

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-grade performance with up to 6.5 Gbps VPN throughput and 1.4 Gbps IPS, ideal for securing high-throughput environments.
  • Comprehensive 3-Year bundle with FortiCare Premium and FortiGuard Enterprise ensures long-term protection and premium support.
  • Efficient, compact, and low-power design supports flexible deployment in space-constrained or remote office environments.

Product Overview

The Fortinet FortiGate-80F-BYPASS is a high-performance desktop firewall designed for organizations seeking enterprise-grade security in a compact form. Featuring 14 Ethernet ports and handling up to 1.5 million sessions, it delivers strong throughput performance with 6.5 Gbps VPN and 1.4 Gbps IPS capacities. Bundled with a 3-year FortiCare Premium and FortiGuard Enterprise license, it ensures up-to-date threat protection and responsive support. Low power consumption and versatile power input options make it ideal for medium-sized networks prioritizing security and uptime.

Specifications

Product Overview
Product Type Network Device
Model FG-80F-BYPASS
Form Factor Desktop
Networking Type Ethernet
Connectivity Technology Wired
Max Power Consumption 15.4 Watt
Power / Voltage Required 100-240V AC;12V DC
New Sessions Per Second 45000
Concurrent Sessions 1.5 Million
Users Qty 200

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 1.6 Inch
Rack Mountable Optional (with kit)
Weight 2.54 lbs (1.15 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Operating Humidity 10% - 90% non-condensing
Storage Humidity 5% - 95% non-condensing
Cooling Type Fanless

Cloud Management & Licensing
Service & Support Type 3 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION
Management Interface FortiOS with FortiManager support
Cloud Management FortiCloud Support
Licensing Included 3-Year FortiCare Premium + FortiGuard Enterprise Protection

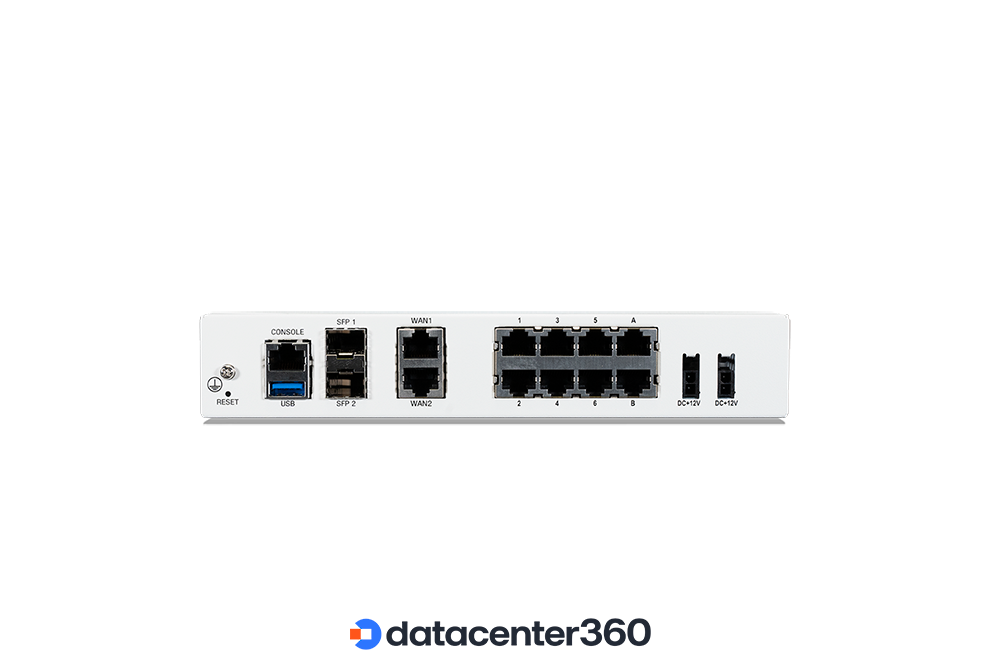

Interfaces
Networking / Ports Qty 14
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
LAN Ports (10/100/1000) 12 x RJ45
WAN Ports 2 x RJ45
Bypass Ports Included on 2 ports
USB Ports 1 x USB 3.0
Console Port 1 x RJ45 Console

Compliance & Origin
COO Inquire
TAA compliance Inquire
Certifications FCC Part 15 Class B, CE, RCM, VCCI, UL/cUL, CB
RoHS Compliance Yes

Advanced Security Features
Firewall Throughput 10 Gbps
IPS Throughput 1.4 Gbps
VPN Throughput (IPSec) 6.5 Gbps
Threat Protection Throughput 900 Mbps
NGFW Throughput 1 Gbps
Application Control Yes
Intrusion Prevention System (IPS) Yes
Antivirus Yes
Web Filtering Yes
SSL Inspection Yes
Sandboxing Capability Yes (via FortiSandbox)
Malware Protection Yes
Content Filtering Yes
