| Product Type | Network Device |
| Model | FG-80F-DSL |
| Form Factor | Desktop |
| Type | Next-Generation Firewall |
| Weight | 1.36 kg |
| Power Requirements | 100-240V AC, 50/60 Hz; 12V DC |
| Max Power Consumption | 31.6 Watt |

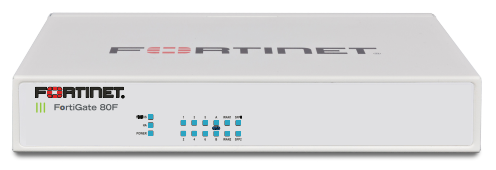

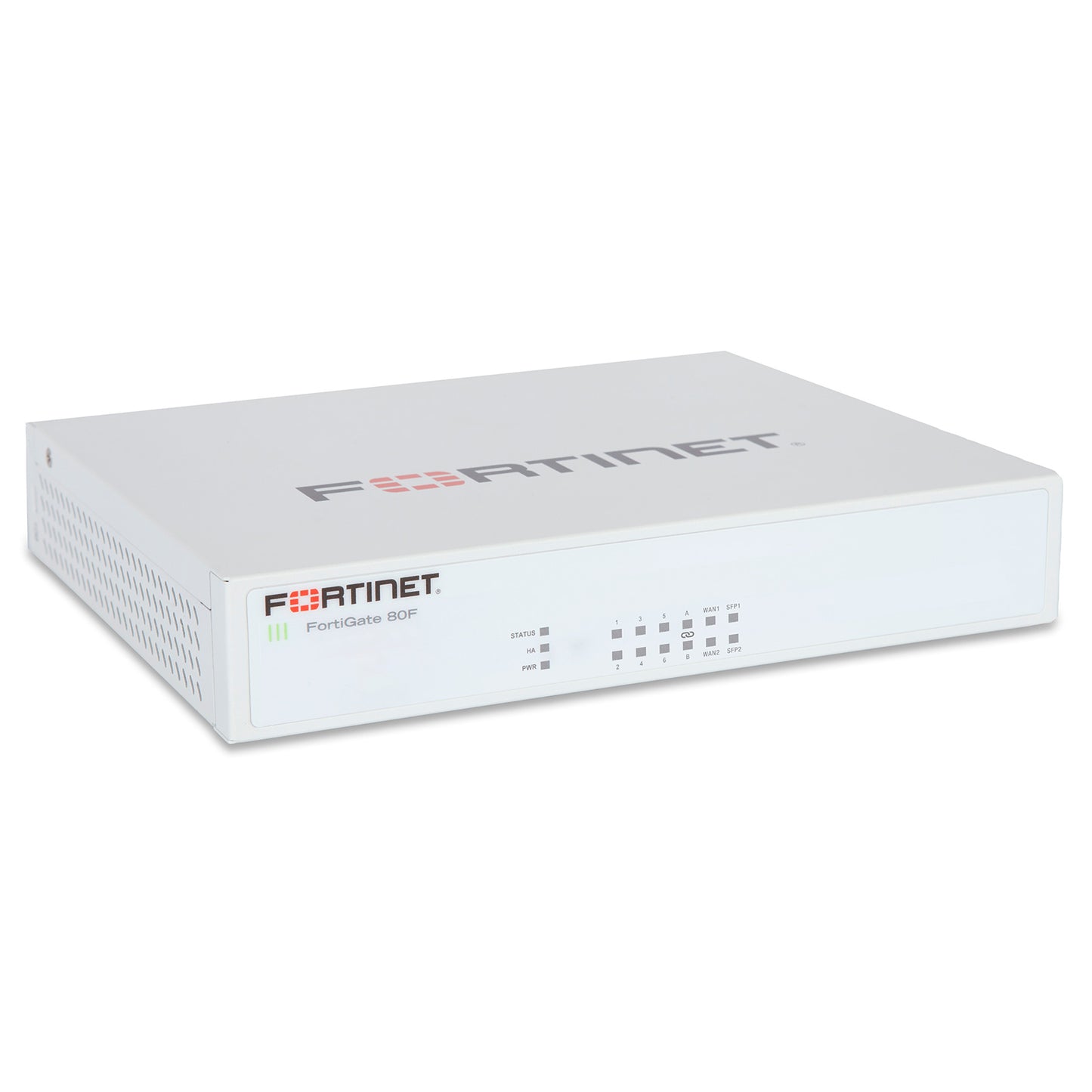

Fortinet FortiGate-80F-DSL + 3YR FortiCare Premium Bundle
Photo is for illustration purposes only. Actual product may be different.
Regular price
$3,740.28
Regular price
Sale price
$3,740.28
Unit price
per
MSRP: $5,107.25
Shipping calculated at checkout.
Couldn't load pickup availability
- Desktop form factor with 15 Gigabit Ethernet ports for flexible deployment
- Up to 1 Gbps IPS throughput and 4.4 Gbps VPN IPSec performance
- Supports 700,000 concurrent sessions and 35,000 new sessions per second
- Includes 3-year FortiCare Premium and FortiGuard Enterprise Protection service
- Low power consumption (maximum 31.6W) with dual voltage power support
- Supports up to 200 users for mid-sized network environments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Provides high-throughput firewall and VPN performance ideal for scaling businesses
- Bundled 3-year FortiCare Premium and FortiGuard Enterprise reduces total cost of ownership
- Compact, energy-efficient design supports versatile installations in limited spaces
Product Overview
The Fortinet FortiGate-80F-DSL is a high-performance desktop security appliance featuring Gigabit Ethernet connectivity with up to 1 Gbps throughput. It supports 700,000 concurrent sessions and delivers 4.4 Gbps VPN IPSec throughput for demanding networks. With 15 ports, it allows flexible wired configurations and can manage up to 35,000 new sessions per second. The appliance is energy-efficient at just 31.6 watts max power draw and is bundled with 3 years of FortiCare Premium and FortiGuard Enterprise protection for complete threat coverage and expert support.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| Country of Origin (COO) | Inquire |
| TAA Compliance | Inquire |
| Certifications | FCC Class A, CE, RCM, VCCI, UL/cUL, CB |
Advanced Security Features
| Firewall Throughput | 10 Gbps |
| VPN IPSec Throughput | 4.4 Gbps |
| IPS Throughput | 1 Gbps |
| Concurrent Sessions | 700,000 |
| New Sessions Per Second | 35,000 |
| Users Qty | 200 |
| Threat Protection Throughput | 700 Mbps |
| SSL Inspection Throughput | 900 Mbps |
| Firewall Type | Stateful Inspection, Deep Packet Inspection, NGFW |
| Intrusion Prevention System (IPS) | Yes |
| Application Control | Yes |
| Web Filtering | Yes |
| Antivirus / Antimalware | Yes |
| Sandboxing Support | Yes, via FortiSandbox/FortiGuard |
Interfaces
| Networking Type | Ethernet |
| Connectivity Technology | Wired |
| Networking / Ports Qty | 15 |
| Data Link Protocol | Gigabit Ethernet |
| Transport Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| 10/100/1000 Ports | 12 x GE RJ45 |
| SFP Ports | 2 x GE SFP |
| DSL Port | 1 x VDSL2/ADSL2+ (RJ45) |
Physical & Environmental
| Width | 8.5 Inch |
| Depth | 7 Inch |
| Height | 2.4 Inch |
| Dimensions (Metric) | 216 x 178 x 55 mm |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -35 to +70°C (-31 to +158°F) |
| Humidity Range Operating | 10% to 90% non-condensing |
| Humidity Range Storage | 5% to 95% non-condensing |
| Cooling Type | Fanless |
Cloud Management & Licensing
| Management Interface | FortiOS, Web UI, CLI, FortiManager, FortiCloud |
| Included Licensing | 3-Year FortiCare Premium and FortiGuard Enterprise Protection |
| Subscription Duration | 36 months |
| Cloud Features | Cloud-based management, analytics, logging |
