Fortinet FortiGate-80F with 1YR FortiCare Premium & FortiGuard Enterprise

VENDOR: FORTINET Mfg Part#: FG-80F-BDL-809-12 UPC#: 195875222241
1 3

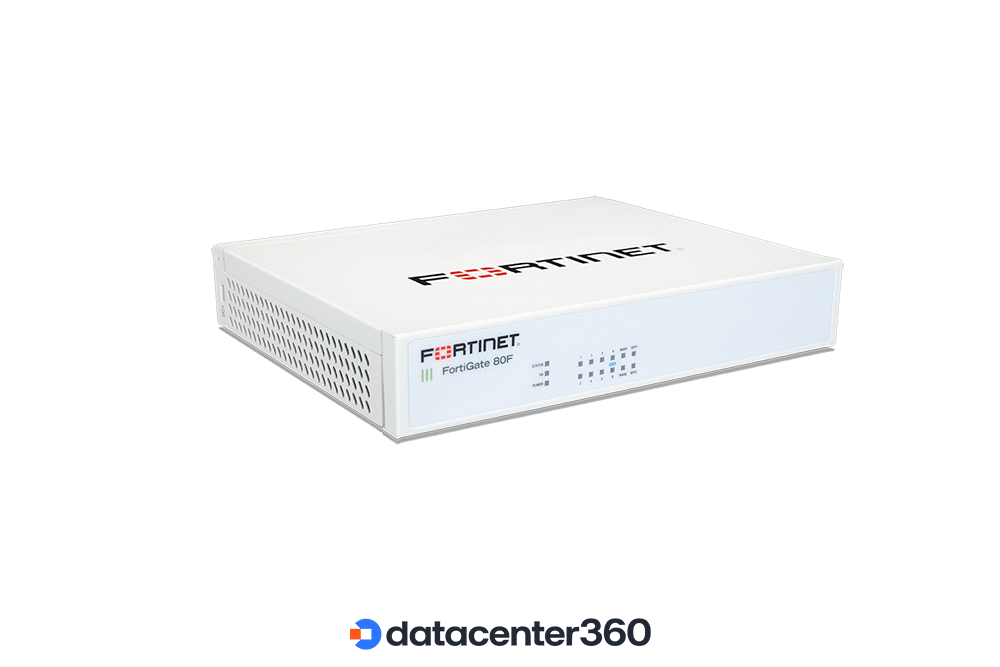

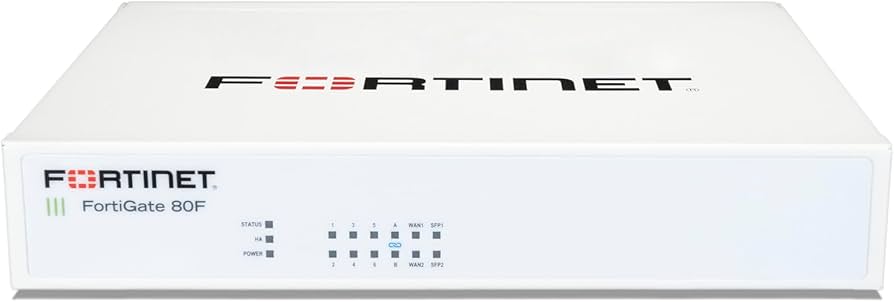

Photo is for illustration purposes only. Actual product may be different.
$2,073.88
$2,073.88
Sale Sold out
MSRP: $2,830.50
Shipping calculated at checkout.
  • Up to 1.5 million concurrent sessions, supporting 45,000 new sessions per second
  • High VPN IPSec throughput of 6.5 Gbps and IPS throughput of 1.4 Gbps
  • Includes 1-year FortiCare Premium and FortiGuard Enterprise Protection services
  • 14 networking ports with wired Gigabit Ethernet connectivity
  • Compact desktop form factor: 8.5"W x 7"D x 1.6"H
  • Energy-efficient with max power consumption of 15.51W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes full-year FortiCare Premium and FortiGuard Enterprise Protection for comprehensive security and support
  • Delivers enterprise-grade performance in a compact, energy-efficient form suitable for SMB or branch office deployments
  • Supports high traffic environments with 1.5 million concurrent sessions and 45,000 new connections per second

Product Overview

The Fortinet FortiGate-80F is a powerful desktop security appliance designed for enterprise-grade protection. It delivers 6.5 Gbps VPN IPSec and 1.4 Gbps IPS throughput, supports up to 1.5 million concurrent sessions, and handles 45,000 new sessions per second. Bundled with 1 year of FortiCare Premium and FortiGuard Enterprise Protection, it ensures continuous threat updates and top-tier support. Energy-efficient with a 15.51W max power draw and a compact 8.5 x 7 x 1.6-inch design, it is well-suited for modern, space-constrained IT environments.

Specifications

Product Overview
Product Type Network Device
Model FG-80F
Form Factor Desktop
Networking Type Ethernet
Connectivity Technology Wired
Users Supported 200
Max Power Consumption 15.51 Watt
Power / Voltage Required 100-240V AC;12V DC
Service & Support Type 1 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION

Advanced Security Features
IPS Throughput 1.4 Gbps
VPN IPSec Throughput 6.5 Gbps
Concurrent Sessions 1.5 Million
New Sessions Per Second 45000
Firewall Throughput 10 Gbps
Threat Protection Throughput 1 Gbps
NGFW Throughput 1.2 Gbps
Antivirus Yes (licensed with FortiGuard)
Intrusion Prevention System (IPS) Yes (licensed with FortiGuard)
Application Control Yes
Web Filtering Yes (licensed with FortiGuard)
Malware Protection Yes
SSL Inspection Yes (including TLS 1.3)
SD-WAN Capabilities Yes

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 1.6 Inch
Weight 2.75 lbs (1.25 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity Range Operating 10% to 90% non-condensing
Humidity Range Storage 5% to 95% non-condensing
Cooling Type Fanless

Interfaces
Networking / Ports Qty 14
Port Types 1x Console, 2x GE RJ45 WAN, 1x GE RJ45 DMZ, 7x GE RJ45 Internal, 2x GE SFP Slots, 1x GE RJ45 Management
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Cloud Management & Licensing
Management Interface FortiOS with Web-Based GUI, CLI, FortiManager, FortiCloud
Centralized Management Supported via FortiManager/FortiCloud
Included Licensing 1 Year FortiCare Premium and FortiGuard Enterprise

Compliance & Origin
Country of Origin TAIWAN
Certifications FCC, CE, RCM, VCCI, UL/cUL, CB
RoHS Compliance Yes
Safety Compliance UL 62368-1, IEC 62368-1
