Fortinet FortiWiFi-80F-2R-3G4G-DSL + 3YR FortiCare & Enterprise Protection

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-3G4G-DSL-S-BDL-809-36
1 3
Photo is for illustration purposes only. Actual product may be different.
$8,206.64
$8,206.64
Sale Sold out
MSRP: $11,209.59
Shipping calculated at checkout.
  • Supports up to 4.4 Gbps IPSec VPN throughput for secure high-speed tunneling
  • Dual-radio wireless (2.4 GHz and 5 GHz) with 3x3 MIMO and SMA connectors
  • Handles up to 700,000 concurrent sessions and 35,000 new sessions per second
  • Includes 15 networking ports and supports Ethernet, Gigabit Ethernet, and Wi-Fi
  • Integrated LTE cellular support for 3G/4G failover or remote sites
  • Low power consumption at 34.31W with 100–240V power compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with 3-year FortiCare Premium and FortiGuard Enterprise Protection for comprehensive security and support
  • Expandable wireless and cellular capabilities make it ideal for static or mobile deployment
  • High session capacity and VPN throughput ensure long-term scalability for growing enterprise needs

Product Overview

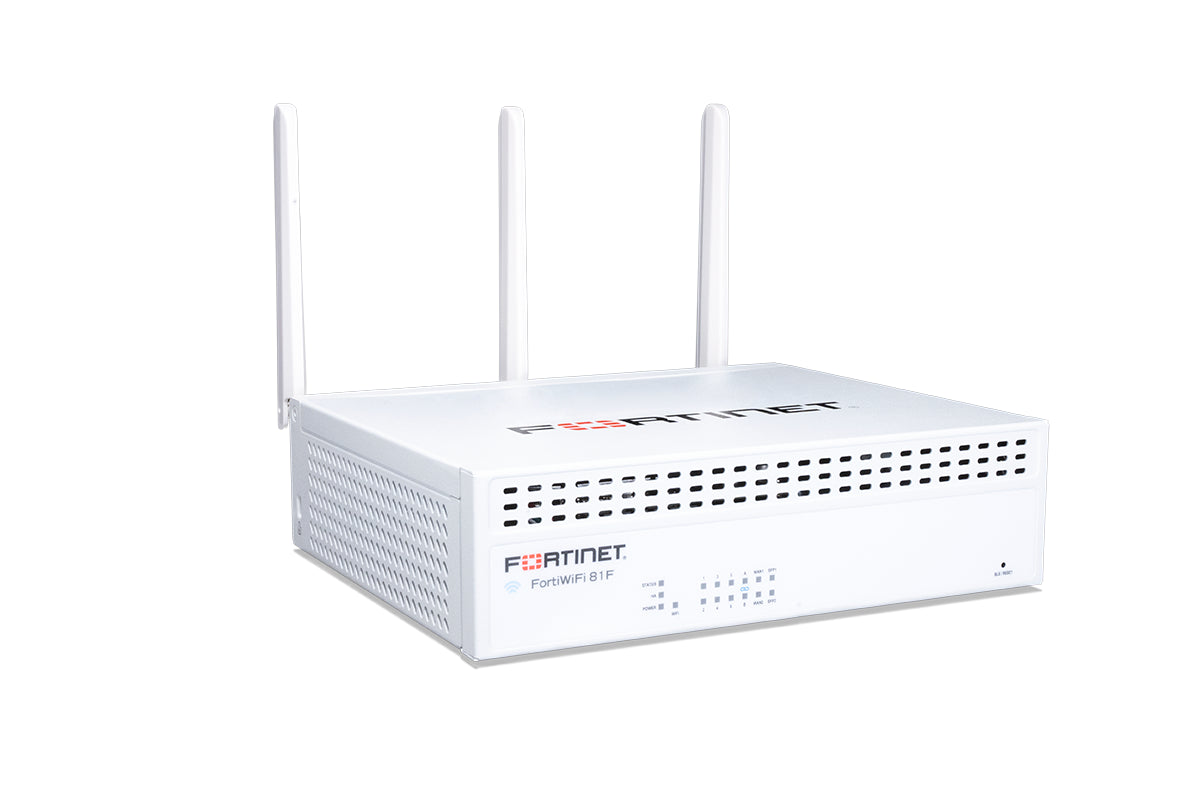

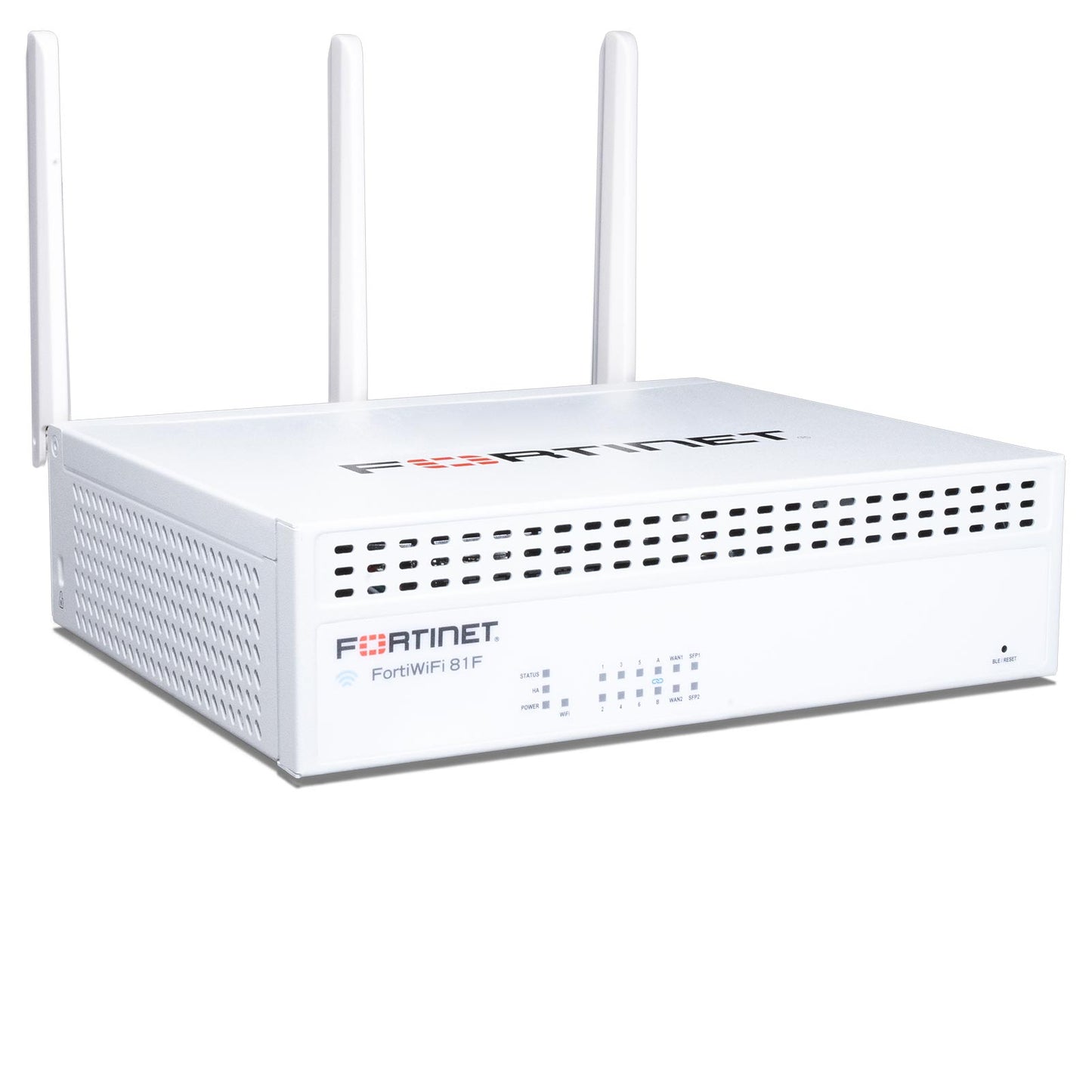

The Fortinet FortiWiFi-80F-2R-3G4G-DSL is a compact network security appliance that features dual-radio wireless connectivity on the 2.4 GHz and 5 GHz bands with 3x3 MIMO support and SMA antenna connectors. It delivers up to 4.4 Gbps IPSec VPN throughput and supports up to 700,000 concurrent sessions, making it ideal for secure, high-capacity enterprise environments. With LTE/3G/4G failover support and wired Ethernet options (15 ports), it ensures flexibility and resilience. The package includes 3 years of FortiCare Premium and FortiGuard Enterprise Protection, enhancing protection and support. Designed for efficient deployment, it operates within a 100–240V power range and consumes under 35W.

Specifications

Product Overview
Product Type Network Device
Model FORTIWIFI-80F-2R-3G4G-DSL
Form Factor Desktop
Max Power Consumption 34.31 Watt
Power / Voltage Required 100-240V
Weight 1.36 kg
Rack Mountable No
Product Family FortiWiFi
Included Services 3 Year FortiCare Premium and FortiGuard Enterprise Protection

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
MIMO Type 3x3 MIMO
Antenna Connectors SMA
Antenna Type Multiple external antennas

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, CE, UL/cUL, RCM, VCCI
RoHS Compliant Yes

Advanced Security Features
Firewall Throughput 10 Gbps
VPN IPSec Throughput 4.4 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000
IPS Throughput 1 Gbps
Threat Protection Throughput 900 Mbps
Application Control Yes
Web Filtering Yes
Anti-Malware Yes
Intrusion Prevention System (IPS) Yes
NGFW Throughput 1 Gbps
SSL Inspection Throughput 950 Mbps
Sandboxing Support Yes (requires subscription)

Interfaces
Networking Type Ethernet
Data Link Protocol 1 Gigabit Ethernet
Data Link Protocol 2 Wi-Fi
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 15
Ethernet Interfaces 2x GE RJ45 WAN, 12x GE RJ45 Switch Ports, 1x GE RJ45 DMZ
Console Port 1x RJ45 Console Port
USB Ports 1x USB Port
DSL Interface 1x VDSL/ADSL Port

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 0°C to 40°C
Storage Temperature -35°C to 70°C
Humidity Range Operating 10% to 90% non-condensing

Cloud Management & Licensing
Management Interface FortiOS Web Interface, CLI, FortiCloud
Subscription Services Included FortiCare Premium, FortiGuard Enterprise Protection
Cloud Management Support Yes
Licensing Term 3 Years
