Fortinet FortiWiFi-80F-2R-3G4G-DSL with 5-Year FortiCare & FortiGuard

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-3G4G-DSL-I-BDL-809-60
1 3
Photo is for illustration purposes only. Actual product may be different.
$11,486.74
$11,486.74
Sale Sold out
MSRP: $15,691.73
Shipping calculated at checkout.
  • VPN IPSec throughput of 4.4 Gbps for high-speed secure communications
  • Support for up to 700,000 concurrent sessions and 35,000 new sessions per second
  • Integrated dual-radio (2.4 GHz and 5 GHz) Wi-Fi with 3x3 MIMO for strong wireless performance
  • Built-in LTE (3G/4G) connectivity with SMA antenna connectors for cellular redundancy
  • Desktop form factor with 15 Ethernet ports providing flexible wired connectivity
  • Low power footprint with maximum power consumption of 34.31 Watts

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes 5 years of FortiCare Premium and FortiGuard Enterprise Protection for comprehensive support and security intelligence
  • Dual WAN connectivity options—Wi-Fi and LTE—provide resilient network access for remote or mobile deployments
  • High VPN and session performance ensures reliable throughput and minimal latency in demanding environments

Product Overview

The Fortinet FortiWiFi-80F-2R-3G4G-DSL is a high-performance wireless firewall appliance that provides secure networking over Gigabit Ethernet, Wi-Fi, and LTE (3G/4G) networks. Built with dual-band 3x3 MIMO Wi-Fi, 15 Ethernet ports, and SMA antenna connectors, it offers exceptional connectivity and reliability. Key metrics include 4.4 Gbps VPN throughput, 700,000 concurrent sessions, and up to 35,000 new sessions per second. The unit comes bundled with 5 years of FortiCare Premium support and FortiGuard Enterprise Protection for unified threat management and proactive service. Ideal for demanding SOHO and branch deployments, this device delivers enterprise-grade security in a compact desktop format.

Specifications

Product Overview
Product Type Network Device
Model FORTIWIFI-80F-2R-3G4G-DSL
Form Factor Desktop
Max Power Consumption 34.31 Watt
Power / Voltage Required 100-240V
Weight 1.98 kg
Firewall Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 900 Mbps
VPN IPSec Throughput 4.4 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
MIMO Type 3x3 MIMO
Antenna Type Detachable External Antennas
Cellular Technology LTE
Cellular Generation 3G/4G
SIM Slots 1x Mini SIM slot

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, RoHS

Advanced Security Features
Firewall Type Stateful Inspection with Deep Packet Inspection
Intrusion Prevention System (IPS) Yes
Antivirus Yes
Web Filtering Yes
Application Control Yes
Advanced Threat Protection Yes
SSL Inspection Yes
Sandboxing Supported via FortiSandbox
Malware Protection Yes
Botnet Protection Yes

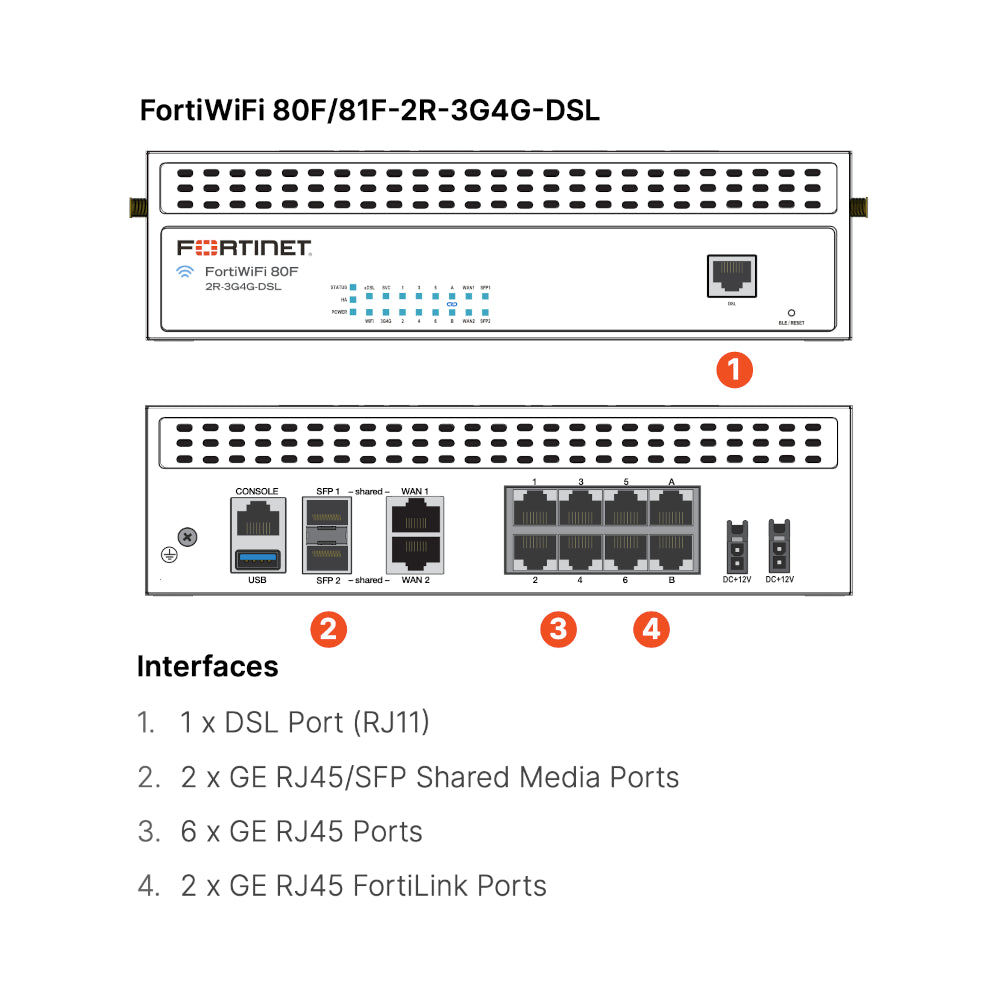

Interfaces
Networking / Ports Qty 15
Ethernet Interfaces 12x GE RJ45 ports
WAN Interfaces 2x GE RJ45 WAN ports, 1x GE SFP shared media port
DSL/VDSL Port 1x DSL port (RJ11)
Antenna Connectors SMA
USB Ports 1x USB 3.0
Console Port 1x RJ45

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 0°C to 40°C
Storage Temperature -35°C to 70°C
Operating Humidity 10% to 90% non-condensing

Cloud Management & Licensing
Centralized Management FortiManager, FortiCloud
Licensing Included 5-Year FortiCare Premium & FortiGuard Enterprise Protection
Zero Touch Provisioning Supported
