Fortinet FortiWiFi-80F-2R-3G4G-DSL with 5YR Enterprise Protection

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-3G4G-DSL-B-BDL-809-60
1 3

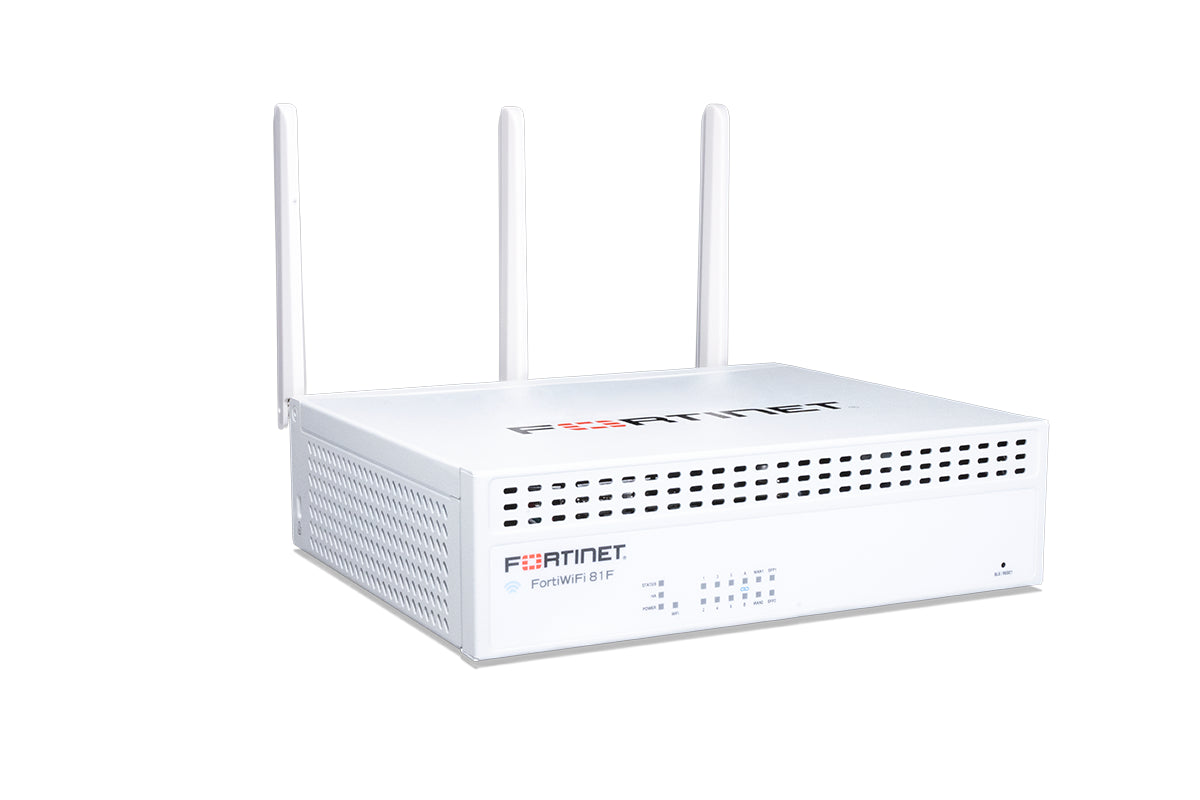

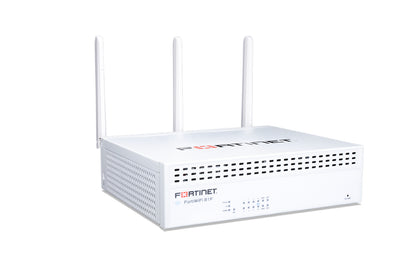

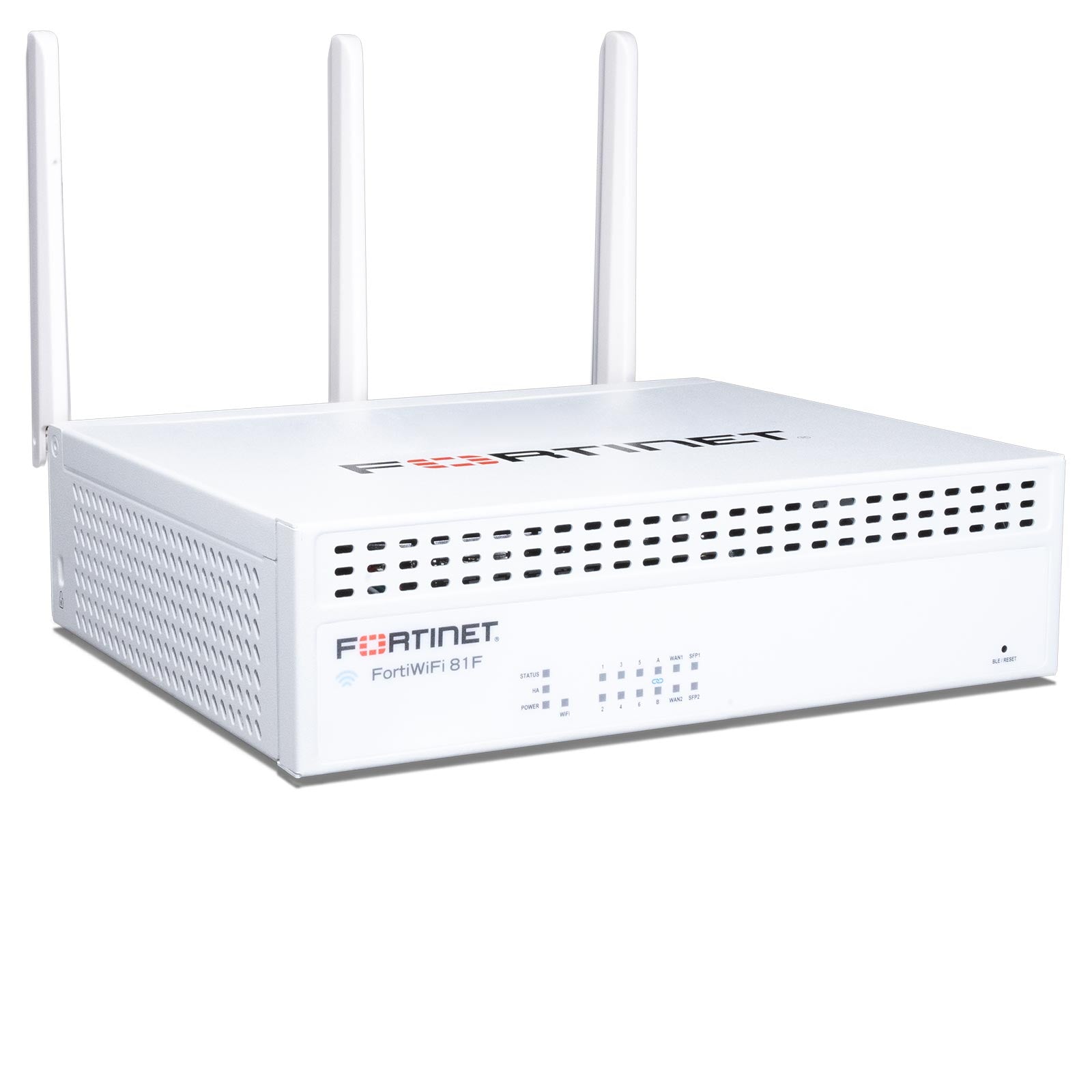

Photo is for illustration purposes only. Actual product may be different.
$11,486.74
$11,486.74
Sale Sold out
MSRP: $15,691.73
Shipping calculated at checkout.
  • Supports Ethernet and Wi-Fi with dual-radio on 2.4 GHz and 5 GHz bands
  • IPSec VPN throughput rated at 4.4 Gbps for high-performance secure connections
  • Capable of maintaining up to 700,000 concurrent sessions
  • Integrated 3G/4G LTE connectivity with SMA antenna connectors
  • 3x3 MIMO wireless configuration for enhanced throughput and coverage
  • Includes 15 networking ports and maximum power consumption of 34.31W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes 5-Year FortiCare Premium and FortiGuard Enterprise Protection, offering extended support and threat intelligence
  • Compact desktop form factor with robust connectivity options including LTE, making it ideal for remote or branch deployments
  • High-performance capabilities with 4.4 Gbps VPN throughput and 35,000 new sessions per second ensure scalable protection for growing businesses

Product Overview

The Fortinet FortiWiFi-80F-2R-3G4G-DSL is an advanced security appliance integrating Ethernet and Wi-Fi (2.4 GHz and 5 GHz) with 3x3 MIMO, offering robust wireless performance. It supports Gigabit Ethernet, has 15 ports, and is LTE-ready with support for both 3G and 4G cellular networks via SMA antenna connectors. With an IPSec VPN throughput of 4.4 Gbps and the ability to handle 700,000 concurrent sessions, it is built for demanding environments. Included is a 5-year FortiCare Premium and FortiGuard Enterprise Protection plan, delivering proactive security updates and support services. Its desktop form factor and 34.31W max power consumption make it an efficient choice for branch deployment or SMBs seeking reliable network protection.

Specifications

Product Overview
Product Type Network Device
Model FORTIWIFI-80F-2R-3G4G-DSL
Manufacturer Part Number FWF-80F-2R-3G4G-DSL-B-BDL-809-60
Form Factor Desktop
Networking Type Ethernet
Transport Protocol Gigabit Ethernet
Max Power Consumption 34.31 Watt
Power / Voltage Required 100-240V
Service & Support Type 5 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
MIMO Type 3x3 MIMO
Antenna Type Antenna
Antenna Connectors SMA

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, CE, UL, IC
Environmental Standards RoHS Compliant

Advanced Security Features
Firewall Throughput 10 Gbps
VPN IPSec Throughput 4.4 Gbps
IPS Throughput 1 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000
Application Control Yes
Content Filtering Yes
Antivirus Yes
Intrusion Prevention System (IPS) Yes
Web Filtering Yes
Anti-Spam Yes
Malware Protection Yes
SSL Inspection Yes
Sandboxing FortiSandbox Cloud Supported

Interfaces
Networking / Ports Qty 15
Data Link Protocol Gigabit Ethernet
WAN Ports 2
LAN Ports 12
Console Ports 1
Management Port 1x RJ45 Management Port
USB Ports 1x USB 3.0
SMA Antenna Connectors 2

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Weight 2.8 lbs (approx)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Operating Humidity 10% to 90% non-condensing

Cloud Management & Licensing
Management Interface FortiOS
Cloud Management FortiCloud
Licensing Included 5-Year FortiCare Premium and FortiGuard Enterprise Protection
Logging & Reporting Local Logging & FortiAnalyzer Support
