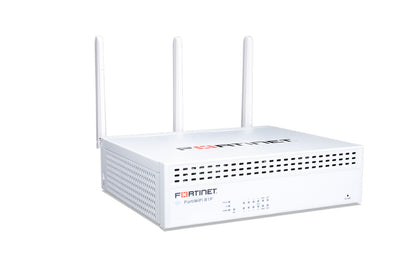

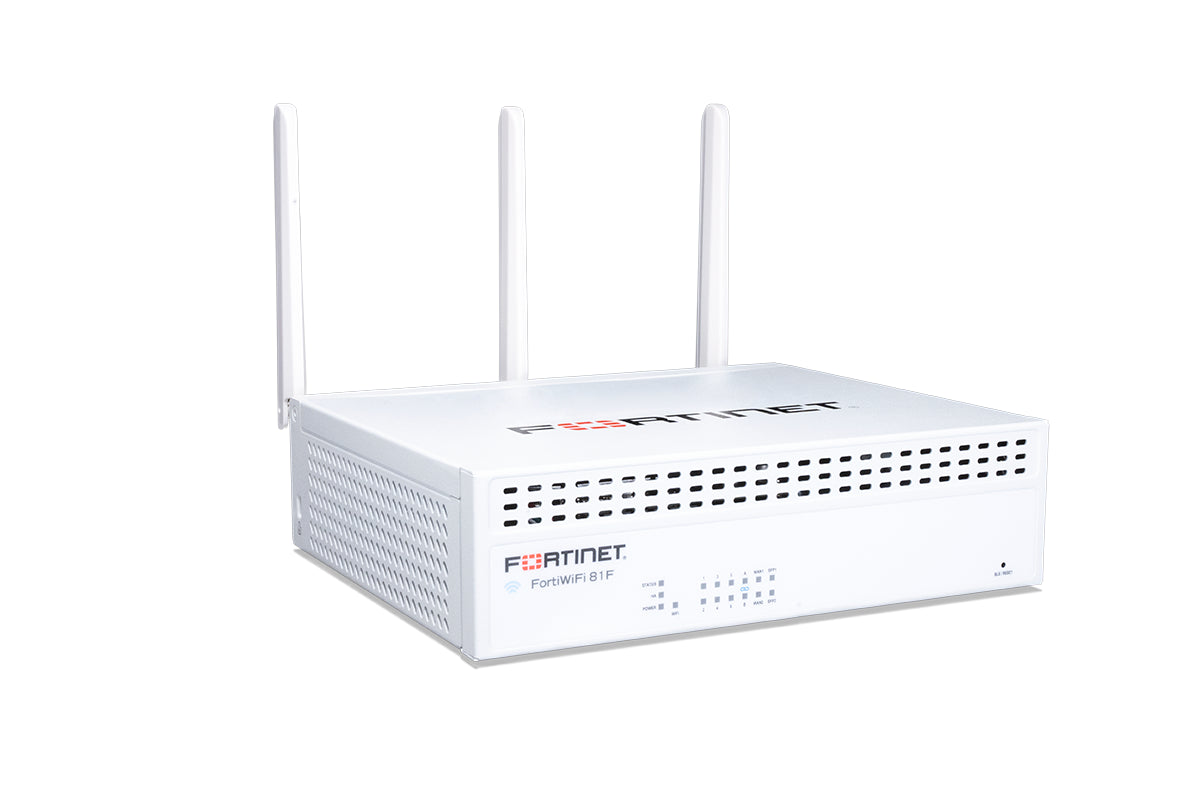

Fortinet FortiWiFi-80F-2R with 5-Year FortiCare & FortiGuard Protection

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-T-BDL-809-60
1 3
Photo is for illustration purposes only. Actual product may be different.
$6,436.98
$6,436.98
Sale Sold out
MSRP: $8,791.43
Shipping calculated at checkout.
  • Desktop security appliance with 14 Ethernet ports and wireless capabilities
  • 2x2 MU-MIMO dual-band (2.4 GHz & 5 GHz) Wi-Fi with SMA antenna connectors
  • IPS throughput rated at 1.4 Gbps for high-performance threat detection
  • Supports up to 1.5 million concurrent sessions and 45,000 new sessions per second
  • Gigabit Ethernet transport and data link protocols for reliable networking
  • Max power consumption of 27.9W with 100–240V AC input range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes 5-year subscription to FortiCare Premium and FortiGuard Enterprise Protection—ensuring long-term security updates and technical support
  • Supports dual-band 2.4 GHz and 5 GHz Wi-Fi with MU-MIMO technology for high-speed wireless access
  • Scalable performance with high session capacity (1.5M concurrent) and robust IPS throughput (1.4 Gbps)

Product Overview

The Fortinet FortiWiFi-80F-2R is a powerful desktop security appliance designed for secure connectivity in enterprise and branch environments. It features Gigabit Ethernet, 14 ports, and dual-band 2x2 MU-MIMO wireless, supporting up to 1.5 million concurrent sessions. With an IPS throughput of 1.4 Gbps and efficient 27.9W max power consumption, this device balances speed and sustainability. Bundled with a 5-year FortiCare Premium and FortiGuard Enterprise Protection, it provides ongoing threat intelligence and technical support for a secure and resilient network.

Specifications

Product Overview
Product Type Security Appliance
Model FWF-80F-2R
Manufacturer Part Number FWF-80F-2R-T-BDL-809-60
Form Factor Desktop
Max Power Consumption 27.9 Watt
Power / Voltage Required 100-240V AC
Concurrent Sessions 1.5 Million
New Sessions Per Second 45000

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac Wave 2
MIMO Type 2x2 MU-MIMO
Antenna Type Antenna
Antenna Connectors SMA
Max Wi-Fi Data Rate 867 Mbps

Compliance & Origin
Country of Origin
TAA Compliance
Certifications FCC, CE, RCM, VCCI, BSMI, ICES
RoHS Compliance Yes

Advanced Security Features
IPS Throughput 1.4 Gbps
Firewall Throughput 5 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 600 Mbps
IPSec VPN Throughput 4.4 Gbps
SSL VPN Throughput 900 Mbps
SSL Inspection Capacity 750 Mbps
Firewall Policies 10,000
VPN Tunnels 2000
Virtual Domains (VDOMs) 10
Threat Intelligence Powered by FortiGuard Labs
Security Services IPS, Application Control, Web Filtering, Antivirus, Anti-Spam, DLP, Sandboxing

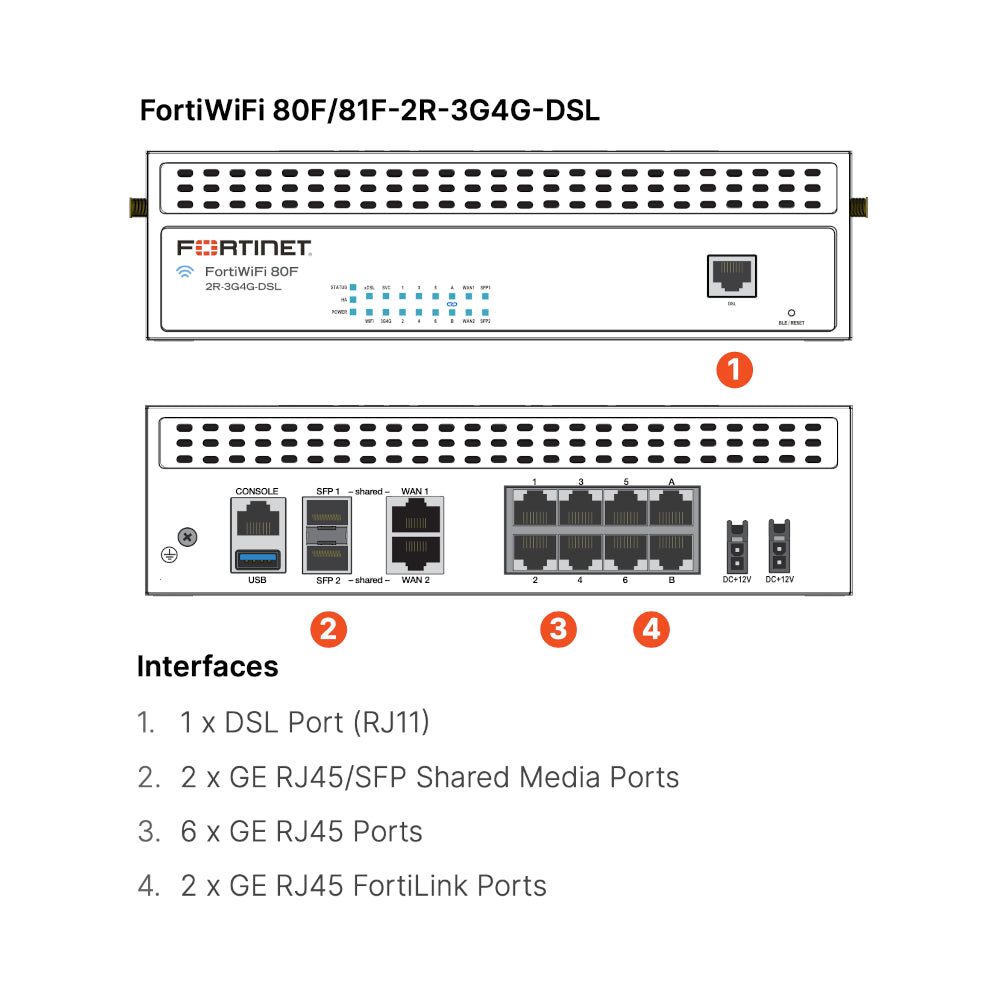

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 14
Ethernet Ports 14 x Gigabit Ethernet
USB Ports 1 x USB
Console Port 1 x RJ-45 Console Port
WAN Ports 2 x GE RJ45
LAN Ports 12 x GE RJ45

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Weight 2.87 lbs (1.3 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity (Operating) 10% to 90% non-condensing
Humidity (Storage) 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface FortiOS with FortiCloud Central Management
License Type 5-Year FortiCare Premium and FortiGuard Enterprise Protection
Included Support 24x7 FortiCare and real-time updates from FortiGuard
