Products Network Stuff Fortinet FortiWiFi-80F-2R w...

Fortinet FortiWiFi-80F-2R with 5Y FortiCare & FortiGuard

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-S-BDL-809-60
1 3

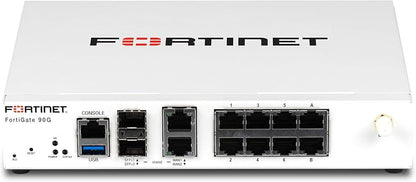

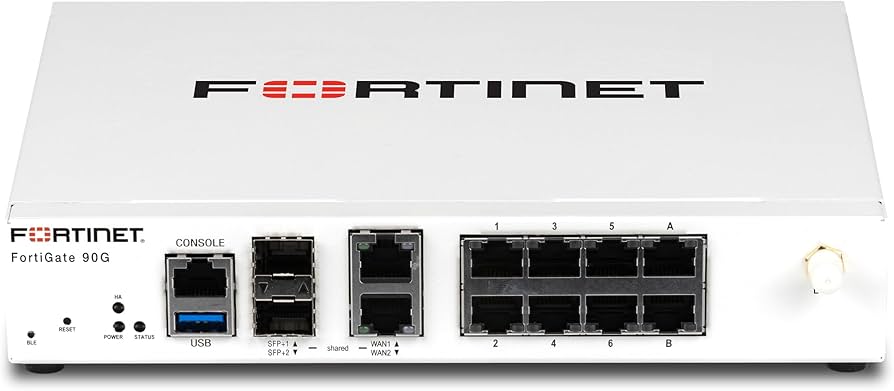

Photo is for illustration purposes only. Actual product may be different.
$6,436.98
$6,436.98
Sale Sold out
MSRP: $8,791.43
Shipping calculated at checkout.
  • 1. Integrated security appliance with 1.4 Gbps IPS throughput and 1.5 million concurrent session support
  • 2. Dual-band wireless across 2.4 GHz and 5 GHz using 2x2 MU-MIMO for optimized Wi-Fi performance
  • 3. 14 Ethernet ports for extensive wired connectivity
  • 4. Gigabit Ethernet protocol with support for 45,000 new sessions per second
  • 5. Desktop form factor and low power consumption at 27.9 watts
  • 6. Includes SMA antenna connectors for flexible deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Includes 5 years of FortiCare Premium and FortiGuard Enterprise Protection for top-tier security and support
  • High throughput and session capacity enable it to handle growing traffic demands in enterprise or branch environments
  • Flexible deployment with dual-band wireless, 14 ports, and compact, efficient desktop form factor

Product Overview

The Fortinet FortiWiFi-80F-2R security appliance is a robust solution engineered for next-generation firewall protection, delivering exceptional performance in a compact desktop form factor. Designed for enterprise environments and branch office deployments, this integrated device supports up to 1.4 Gbps of IPS throughput and can manage 1.5 million concurrent sessions, making it well-suited for handling intense network traffic with high reliability.

Equipped with dual-radio Wi-Fi supporting both 2.4 GHz and 5 GHz frequency bands and 2x2 MU-MIMO technology, the FortiWiFi-80F-2R offers high-performance wireless connectivity. With 14 Ethernet ports and advanced traffic management through protocols like Gigabit Ethernet, the appliance ensures versatile network integration. Features like SMA antenna connectors and a max power consumption of 27.9 watts contribute to efficient and flexible installations.

This bundle includes a five-year subscription to FortiCare Premium support and FortiGuard Enterprise Protection, ensuring continuous updates, proactive threat detection, and responsive technical support. The comprehensive service package adds substantial value for organizations looking to maintain a secure posture across evolving network threats, while streamlining administrative overhead with centralized controls.

Specifications

Product Overview
Product Type Security Appliance
Form Factor Desktop
Model FWF-80F-2R
Power / Voltage Required 100-240V AC
Max Power Consumption 27.9 Watt
Weight 1.26 kg
Architecture SPU NP6XLite and CP9 acceleration processors
Firewall Throughput 10 Gbps
VPN Throughput 1.1 Gbps
IPS Throughput 1.4 Gbps
NGFW Throughput 900 Mbps
Threat Protection Throughput 700 Mbps

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
MIMO Type 2x2 MU-MIMO
Wi-Fi Standards 802.11a/b/g/n/ac
Antenna Type External removable antennas
Antenna Connectors SMA

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB, RoHS

Advanced Security Features
Firewall Type Stateful inspection and deep packet inspection
Intrusion Prevention System (IPS) Included
Application Control Included
Web Filtering Included
Malware Protection Included via FortiGuard
Antivirus Included
SSL Inspection Supported (including TLS 1.3)
VPN Support IPSec, SSL VPN
Concurrent Sessions 1.5 Million
New Sessions Per Second 45000

Interfaces
Networking / Ports Qty 14
Ethernet Ports 2x GE RJ45 WAN ports, 1x GE RJ45 DMZ port, 10x GE RJ45 internal ports, 1x GE SFP shared media port
Interface Types RJ-45, SFP
USB Ports 1x USB 3.0
Console Port 1x RJ-45 Serial Console
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 0 °C to 40 °C
Storage Temperature -35 °C to 70 °C
Operating Humidity 10% to 90% non-condensing

Cloud Management & Licensing
Service & Support Type 5 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION
Management Interface FortiOS with centralized FortiManager/FortiAnalyzer integration
Cloud-Based Management Supported via FortiCloud
Licensing Model Subscription-based (included 5-year UTM bundle)
