Fortinet FortiWiFi-80F-2R with 5YR FortiCare & FortiGuard Protection

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-Y-BDL-809-60
1 3

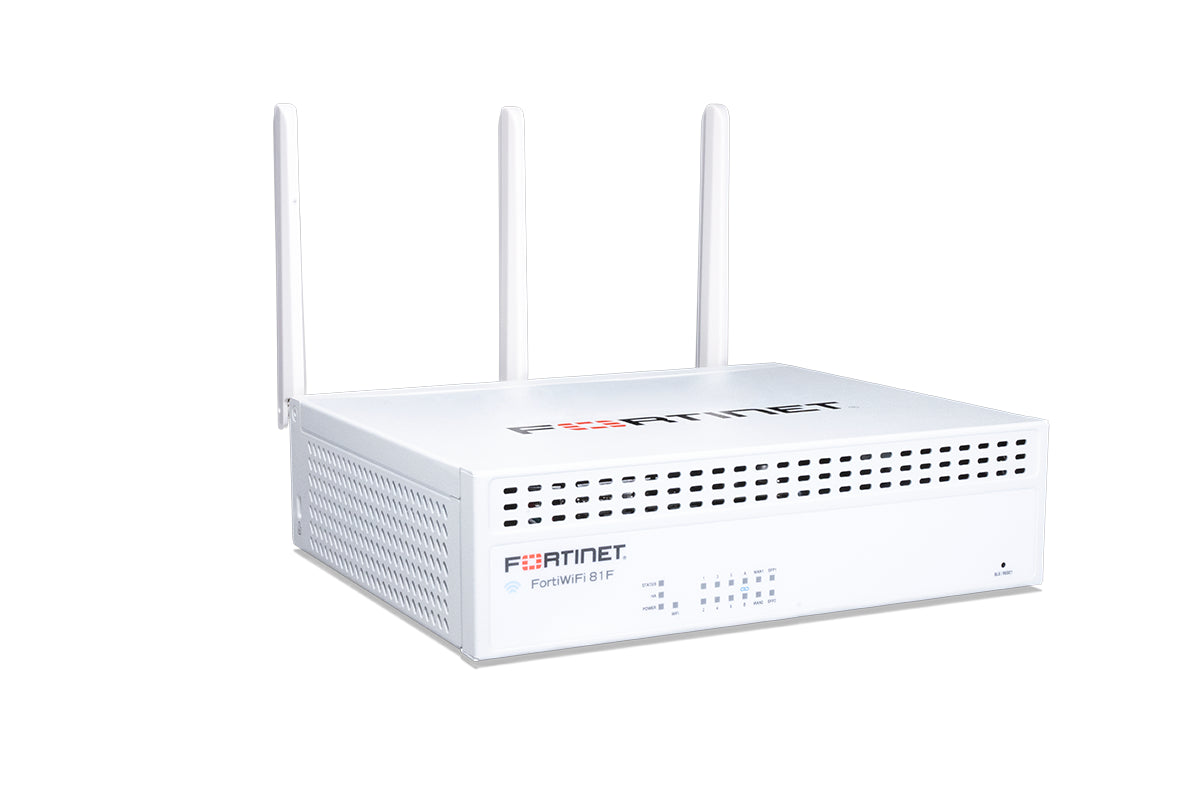

Photo is for illustration purposes only. Actual product may be different.
$6,436.98
$6,436.98
Sale Sold out
MSRP: $8,791.43
Shipping calculated at checkout.
  • IPS throughput up to 1.4 Gbps for high-performance threat detection
  • Supports 1.5 million concurrent sessions and 45,000 new sessions/sec
  • Dual-band wireless with 2x2 MU-MIMO for enhanced signal reliability
  • 14-port Ethernet interface for versatile network connectivity
  • Max power consumption of just 27.9W for energy-efficient operation
  • Includes 5-Year FortiCare Premium and FortiGuard Enterprise Protection

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Integrated 5-year security and support package reduces need for separate software subscriptions and lowers TCO
  • High session capacity and throughput ensure reliable performance for demanding enterprise environments
  • Dual-band wireless with MU-MIMO improves connectivity for mobile and wireless devices

Product Overview

The FortiWiFi-80F-2R from Fortinet is a compact, high-performance security appliance built for enterprise-class protection in branch office or small business deployments. It combines robust firewall security with a built-in wireless access point supporting 2x2 MU-MIMO on both 2.4 GHz and 5 GHz bands. The device supports 1.4 Gbps IPS throughput, 1.5 million concurrent sessions, and 45,000 new sessions per second, making it effective in high-demand environments.

With 14 Ethernet ports, Gigabit Ethernet capabilities, and SMA antenna connectors, it offers flexibility and strong wireless performance. Energy-efficient at 27.9 watts max consumption, it operates on 100-240V AC. Its bundled 5-year FortiCare Premium and FortiGuard Enterprise Protection ensures proactive threat detection, updates, and expert-tier technical support.

This integrated package delivers long-term value, strengthened cybersecurity posture, and reduced operational overhead for growing business networks.

Specifications

Product Overview
Product Type Security Appliance
Model FWF-80F-2R
Form Factor Desktop
Weight 1.54 kg
Power Requirements 100-240V AC
Max Power Consumption 27.9 Watt

Wireless Features
Wireless Standard IEEE 802.11a/b/g/n/ac
MIMO Type 2x2 MU-MIMO
Radio Count Dual
Frequencies Supported 2.4 GHz / 5 GHz dual band
Antenna Connectors SMA
Antenna Type External Antennas
Max WiFi Clients 128 Clients
Transmit Power 20 dBm (typical, per chain)

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
RoHS Compliance Yes

Advanced Security Features
Firewall Throughput 10 Gbps
IPS Throughput 1.4 Gbps
Threat Protection Throughput 900 Mbps
SSL Inspection Throughput 630 Mbps
NGFW Throughput 1 Gbps
Concurrent Sessions 1.5 Million
New Sessions Per Second 45,000
Firewall Type Stateful Inspection, Deep Packet Inspection (DPI)
Intrusion Prevention System (IPS) Yes
Application Control Yes
Web Filtering Yes (via FortiGuard)
Antivirus & Malware Protection Yes (via FortiGuard)
VPN Support IPSec, SSL VPN

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Port Count 14
RJ-45 Ethernet Ports 14 x GE RJ45
WAN Ports 2 x GE RJ45 WAN Ports
DMZ Ports 1 x DMZ GE RJ45 port
Console Port 1 x USB Console, 1 x RJ45 Console
USB Ports 2 x USB

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity (Operating) 10%–90% non-condensing
Humidity (Storage) 5%–95% non-condensing
Cooling Type Fanless passive cooling
Mounting Options Desktop / Wall Mountable

Cloud Management & Licensing
Management Interface FortiOS Web UI, CLI, FortiManager, FortiCloud
Included Licensing 5-Year FortiCare Premium & FortiGuard Enterprise Protection
Logging & Reporting FortiAnalyzer compatible, local logging available
