Fortinet FortiWiFi-80F 3G4G DSL + 5YR FortiGuard/FortiCare Bundle

VENDOR: FORTINET Mfg Part#: FWF-80F-2R-3G4G-DSL-A-BDL-809-60
1 3
Photo is for illustration purposes only. Actual product may be different.
$11,486.74
$11,486.74
Sale Sold out
MSRP: $15,691.73
Shipping calculated at checkout.
  • Dual-band Wi-Fi (2.4 GHz and 5 GHz) with dual radio and 3x3 MIMO
  • Integrated LTE (3G/4G) support with SMA antenna connectors
  • Gigabit Ethernet and wireless connectivity with 15 network ports
  • 700,000 concurrent session capacity with 35,000 new sessions per second
  • IPSec VPN throughput of up to 4.4 Gbps for secure remote access
  • Includes 5-Year FortiCare Premium and FortiGuard Enterprise Protection services

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Integrated LTE, Wi-Fi, and Ethernet connectivity in a single device reduces equipment overhead for small offices.
  • High session capacity and VPN throughput make it ideal for bandwidth-intensive or distributed deployments.
  • Includes 5-year premium security and support services, maximizing ROI with continuous updates and expert assistance.

Product Overview

The FortiWiFi-80F-2R-3G4G-DSL from Fortinet is a high-performance desktop security appliance designed for branch locations and small enterprises. It supports Gigabit Ethernet and dual-band Wi-Fi (2.4/5 GHz), features dual radios with 3x3 MIMO, and includes integrated LTE (3G/4G) connectivity with SMA antenna connectors. With 700,000 concurrent sessions and 35,000 new sessions per second, it handles demanding networking environments. The device includes 15 network ports, can deliver up to 4.4 Gbps VPN IPSec throughput, and has a max power consumption of 34.31W. Bundled with 5 years of FortiCare Premium and FortiGuard Enterprise Protection, it is ideally suited for retail, branch, and SMB deployments seeking consolidated connectivity and security.

Specifications

Product Overview
Product Type Network Device
Model FORTIWIFI-80F-2R-3G4G-DSL
Form Factor Desktop
Weight 1.56 kg
Power / Voltage Required 100-240V
Max Power Consumption 34.31 Watt
Service & Support Type 5 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION

Wireless Features
Connectivity Technology Wireless
Wi-Fi Standards 802.11a/b/g/n/ac
Radio Count Dual
MIMO Type 3x3 MIMO
Antenna Type External Removable Antennas
Antenna Connectors SMA
Frequency Band 2.4 GHz; 5 GHz

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -35°C to 70°C (-31°F to 158°F)
Humidity Range (Operating) 10% to 90% RH non-condensing

Cloud Management & Licensing
Centralized Management FortiManager
Cloud Management FortiCloud
Licensing Bundle 5-Year FortiCare Premium and FortiGuard Enterprise Protection

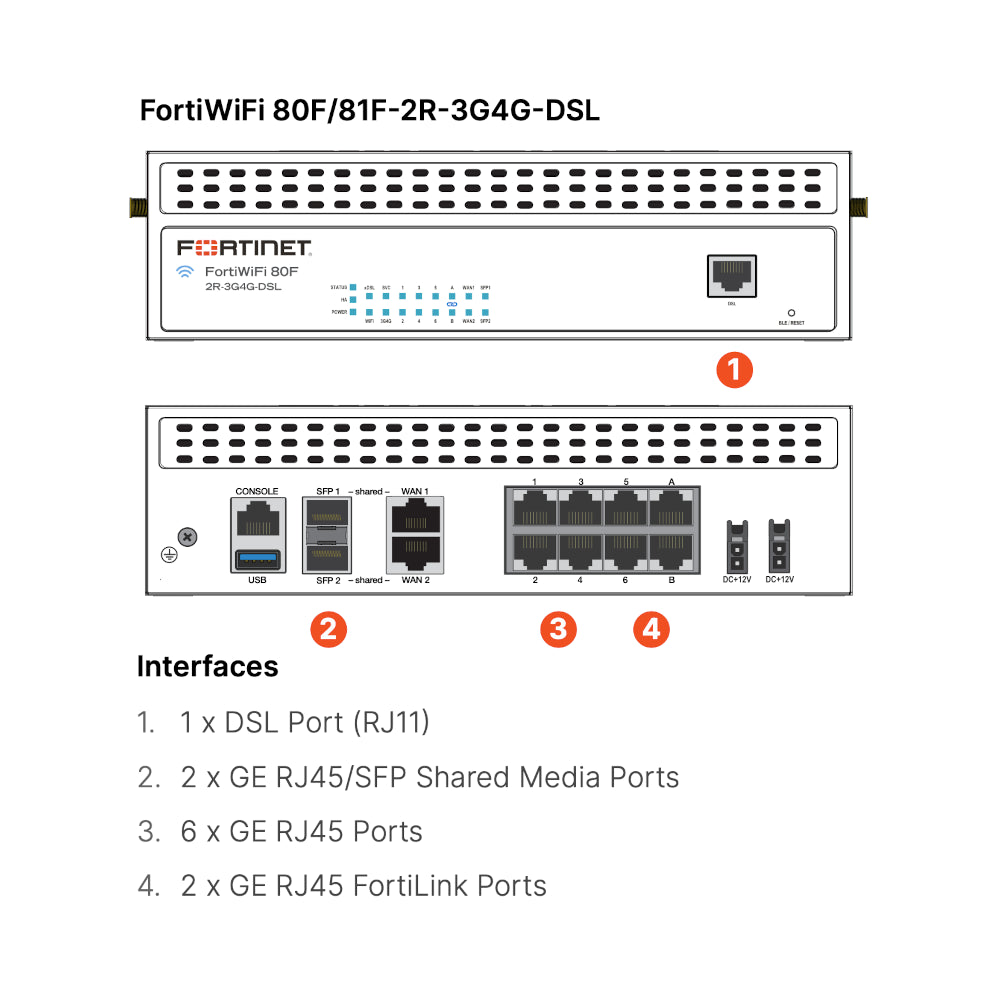

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Networking / Ports Qty 15
Management Port 1x RJ-45 Console
USB Ports 1x USB 3.0
WAN Ports 2x GE RJ45, 1x VDSL/ADSL2+
LAN Ports 12x GE RJ45
DSL Interface Integrated VDSL/ADSL2+
IPSec VPN Throughput 4.4 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000

Cellular Connectivity
Cellular Technology LTE
Cellular Generation 3G
Cellular Generation (Secondary) 4G
SIM Slots 1x Micro SIM
Cellular Antenna Connectors SMA

Compliance & Origin
Country of Origin Inquire
TAA Compliance Inquire
Certifications FCC, CE, RCM, VCCI, UL/cUL, CB
Safety Compliance UL, CB
EMC Compliance FCC Part 15 Class B, ICES-003 Class B

Advanced Security Features
Firewall Throughput 10 Gbps
Threat Protection Throughput 1 Gbps
IPS Throughput 1 Gbps
Antivirus Throughput 1 Gbps
Application Control Yes
Web Filtering Yes
Intrusion Prevention Systems (IPS) Yes
Malware Protection Yes
SSL Inspection Yes
Sandboxing Yes, via FortiSandbox integration
