Fortinet FortiWiFi-81F-2R-3G4G-DSL with 1YR FortiCare & Enterprise Protection

VENDOR: FORTINET Mfg Part#: FWF-81F-2R-3G4G-DSL-B-BDL-809-12
1 3
Photo is for illustration purposes only. Actual product may be different.
$4,916.42
$4,916.42
Sale Sold out
MSRP: $6,713.65
Shipping calculated at checkout.
  • Dual-band 2.4 GHz and 5 GHz wireless with LTE (3G/4G) connectivity
  • 15 network ports and Gigabit Ethernet support for high-speed throughput
  • Integrated 128 GB storage for local data and logging
  • Supports up to 700,000 concurrent sessions and 35,000 new sessions/sec
  • 1 Gbps IPS throughput for robust intrusion prevention
  • Max power consumption of only 35.6W ensures power-efficient operation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Unified wireless and wired connectivity with dual-band Wi-Fi and LTE provides operational flexibility and redundancy.
  • Includes 1-year FortiCare Premium and FortiGuard Enterprise Protection for comprehensive security and support.
  • High session capacity and performance (700,000 concurrent sessions, 1 Gbps IPS throughput) support demanding branch environments.

Product Overview

The Fortinet FortiWiFi-81F-2R-3G4G-DSL is a compact, high-performance desktop security appliance designed to provide secure network connectivity in branch office or remote deployment scenarios. Equipped with Gigabit Ethernet support and dual-band wireless capability (2.4 GHz and 5 GHz), it supports robust connectivity while ensuring network integrity. This device supports LTE cellular connectivity with dual radio antennas (SMA connectors) and offers seamless integration of both wired and wireless traffic under a single unified security platform.

With an IPS throughput of 1 Gbps, the FortiWiFi-81F-2R supports up to 700,000 concurrent sessions and 35,000 new sessions per second, making it well-suited for modern networking demands. It includes 128 GB of onboard storage and offers a total of 15 network ports for extensive connectivity options. Integrated LTE (3G and 4G) and DSL capabilities provide additional deployment flexibility across diverse environments. Power efficiency is ensured with a maximum consumption of only 35.6 Watts.

Bundled with a one-year subscription to FortiCare Premium and FortiGuard Enterprise Protection, this solution includes end-to-end support and access to Fortinet's advanced threat intelligence services, ensuring holistic protection and enhanced IT peace of mind. Organizations deploying this device benefit from simplified infrastructure, lower TCO, and strong ROI through consolidated network services and security.

Specifications

Product Overview
Product Type Security Appliance
Model FWF-81F-2R-3G4G-DSL
Form Factor Desktop
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Hard Drive 128 GB
Max Power Consumption 35.6 Watt
Power / Voltage Required 100-240V AC
Concurrent Sessions 700000
New Sessions Per Second 35000
IPS Throughput 1 Gbps

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
Cellular Technology LTE
Cellular Generation (1) 3G
Cellular Generation (2) 4G

Compliance & Origin
Country of Origin (COO)
TAA Compliance
Certifications FCC Part 15 Class B, CE, UL/cUL, CB
Safety Compliance IEC 60950-1, IEC 62368-1
EMC Standards EN 55032, EN 55024

Advanced Security Features
Firewall Type Stateful Inspection and Deep Packet Inspection
Intrusion Detection and Prevention (IDS/IPS) Yes, Built-in IPS Engine
Malware Protection Yes, via FortiGuard Antivirus
Content Filtering Yes, Web and Application Filtering via FortiGuard
SSL Inspection Yes, SSL Deep Inspection (Full and Partial)
Anti-Spam Yes, via FortiGuard Email Filtering
Application Control Yes, Advanced Layer 7 Application Control

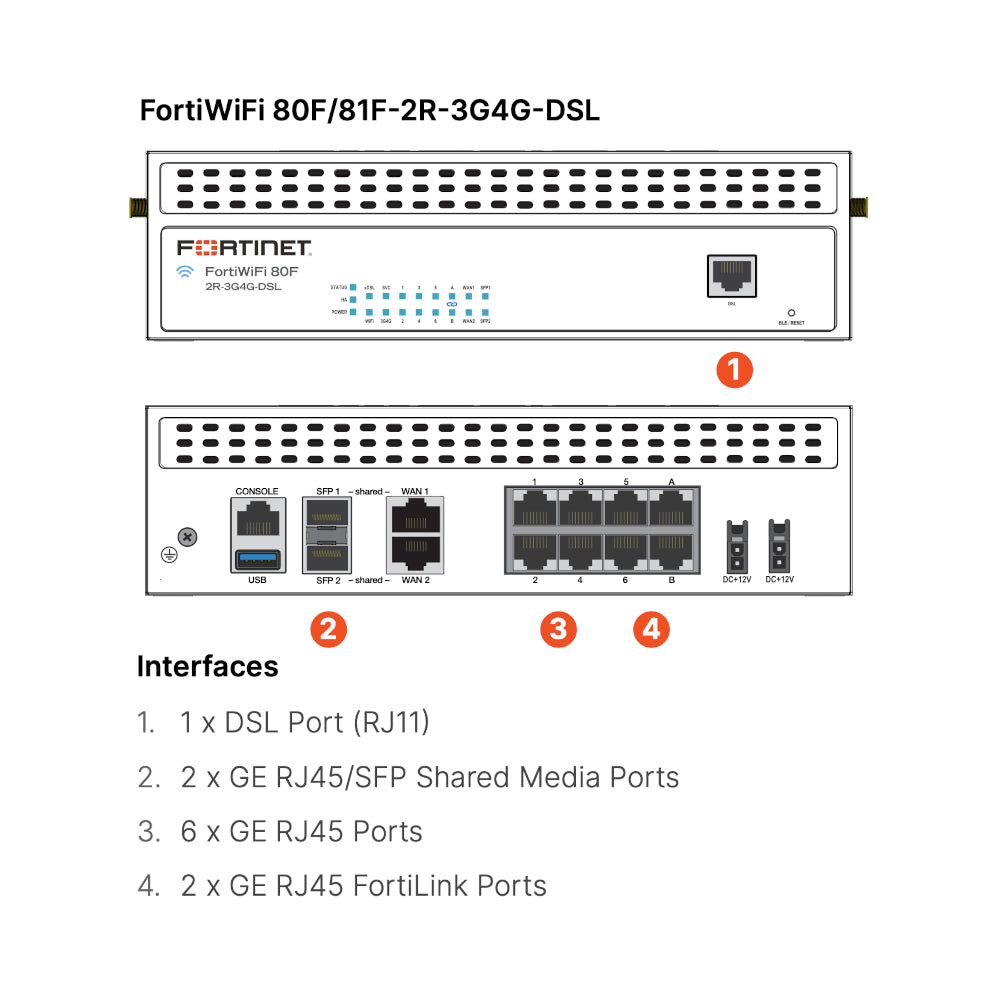

Interfaces
Networking / Ports Qty 15
Antenna Connectors SMA
Antenna Type Antenna
Interface Type 1 10/100/1000 Ethernet
Interface Type 2 DSL (RJ-11)
Interface Type 3 USB 3.0
Interface Type 4 SMA for Cellular Antennas

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -35°C to 70°C (-31°F to 158°F)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface FortiOS via Web UI, CLI, FortiManager, and REST API
Licensing 1 Year FortiCare Premium and FortiGuard Enterprise Protection
Cloud Features Included Cloud-based threat intelligence, sandboxing, content filtering, antivirus scanning
