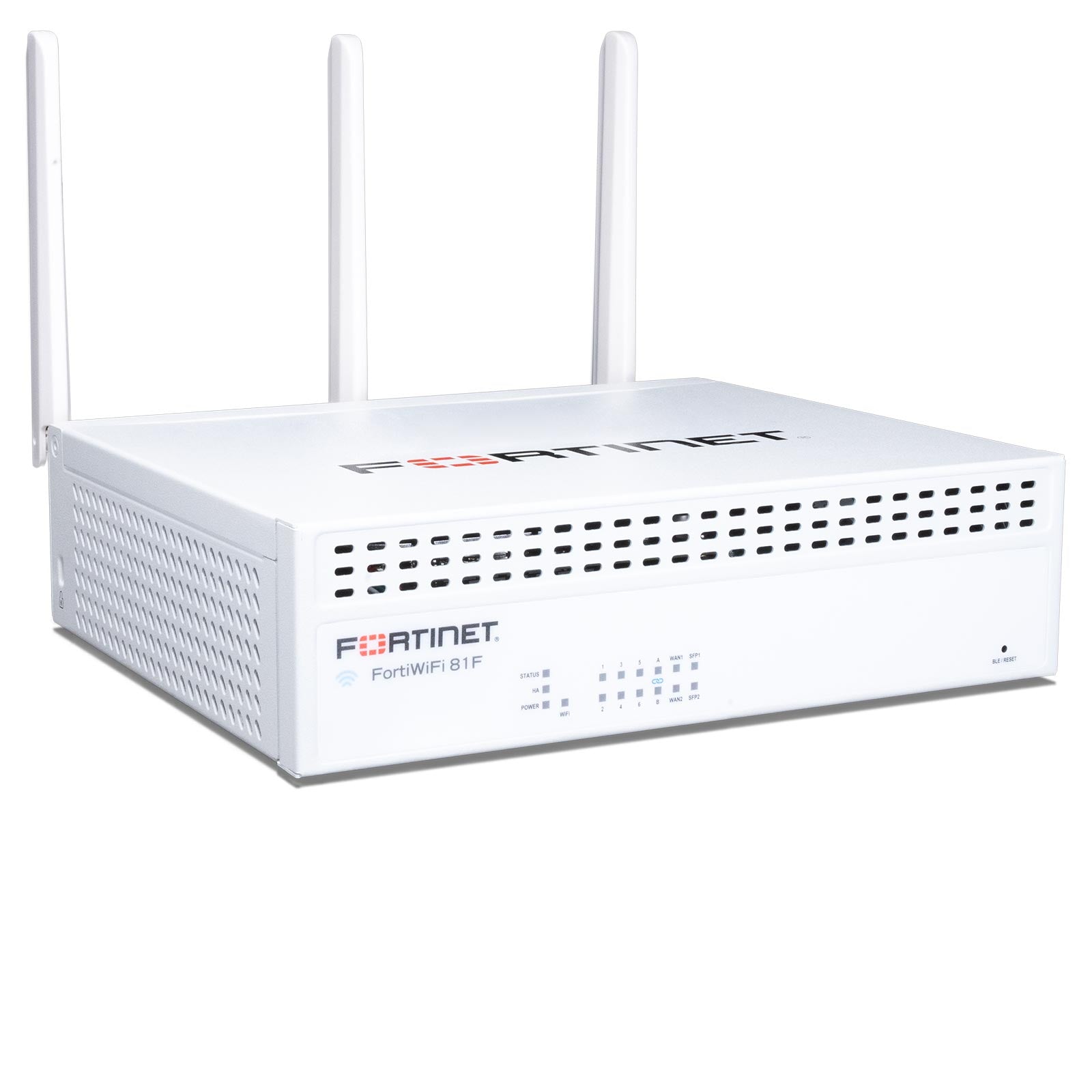

Fortinet FortiWiFi-81F-2R-3G4G-DSL with 3Yr FortiCare & FortiGuard

VENDOR: FORTINET Mfg Part#: FWF-81F-2R-3G4G-DSL-A-BDL-809-36
1 3
Photo is for illustration purposes only. Actual product may be different.
$8,754.01
$8,754.01
Sale Sold out
MSRP: $11,957.56
Shipping calculated at checkout.
  • Dual-band wireless support (2.4 GHz and 5 GHz) with dual radio architecture
  • Integrated 3G/4G LTE modem with SMA antenna connectors
  • IPS throughput up to 1 Gbps and 35,000 new sessions/sec
  • Supports up to 700,000 concurrent sessions
  • 128 GB internal hard drive for logging and storage
  • Includes 3-Year FortiCare Premium and FortiGuard Enterprise Protection

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high throughput (1 Gbps IPS) and large session capacity (700,000), ideal for high-demand environments.
  • Includes integrated LTE support with SMA connectors, providing failover/redundancy for business continuity.
  • Comes bundled with a 3-year premium support and threat protection package, reducing IT management burden and operational risk.

Product Overview

The Fortinet FortiWiFi-81F-2R-3G4G-DSL delivers comprehensive network security in a desktop-form factor built for small to mid-sized environments. Leveraging Gigabit Ethernet and 3G/4G LTE connectivity with SMA ports, it ensures robust and flexible networking. Its dual-radio Wi-Fi covering 2.4 GHz and 5 GHz supports high-bandwidth wireless users. Capable of 1 Gbps IPS throughput, 700,000 concurrent sessions, and 15 total ports, this unit is suited to high-throughput scenarios. The included 3-year FortiCare Premium and FortiGuard Enterprise Protection enhances security posture and reduces management overhead.

Specifications

Product Overview
Product Type Security Appliance
Model FWF-81F-2R-3G4G-DSL
Form Factor Desktop
Weight 2.87 lbs
Hard Drive 128 GB
Max Power Consumption 35.6 Watt
Power / Voltage Required 100-240V AC

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
Antenna Connectors SMA
Antenna Type External Antenna
Cellular Technology LTE
Cellular Generation 3G
Cellular Generation 4G
SIM Slot 1 x Nano SIM Slot

Compliance & Origin
COO Taiwan
TAA Compliance Yes
Certifications FCC Part 15 Class B, CE, RCM, VCCI, UL/cUL, CB
RoHS Compliance Yes

Advanced Security Features
IPS Throughput 1 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000
Firewall Throughput 2.5 Gbps
Threat Protection Throughput 600 Mbps
Application Control Yes
Intrusion Prevention System (IPS) Yes
Antivirus / Antimalware Yes
Web Filtering Yes
SSL Inspection Yes
VPN Support IPSec and SSL VPN
Endpoint Integration FortiClient Support

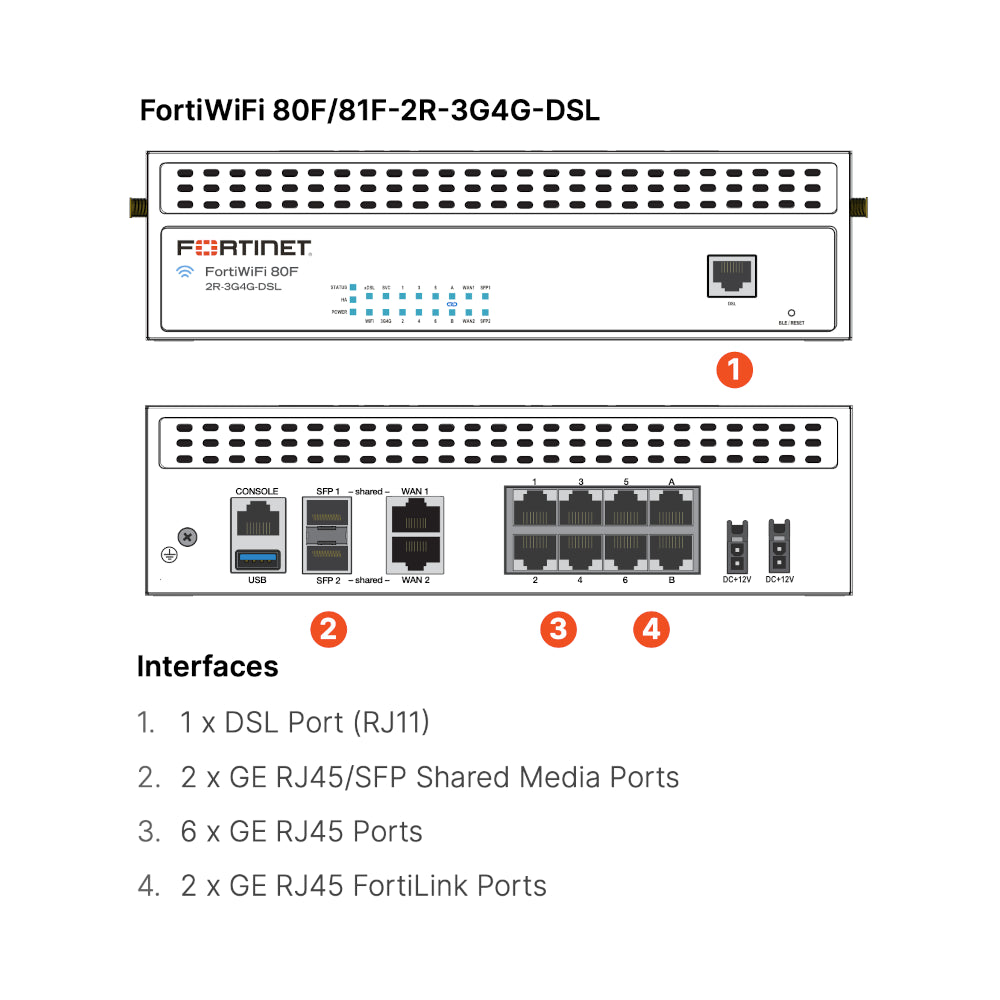

Interfaces
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Networking / Ports Qty 15
Console Ports 1 x Console Port (RJ45)
USB Ports 1 x USB 3.0
GE RJ45 Ports 10 x GE RJ45
GE SFP Ports 2 x GE SFP
DSL WAN Port 1 x VDSL/ADSL port
LTE Ports 1 x SIM slot with 2 x external SMA connectors
Dedicated HA Ports 1 x GE RJ45
Internal Switch Ports Included with Integrated 8-port switch

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Fanless Design Yes

Cloud Management & Licensing
Management Interface FortiOS with FortiManager and FortiCloud Support
Included Licensing 3 Years FortiCare Premium & FortiGuard Enterprise Protection
Cloud-Based Management Supported via FortiCloud
Centralized Management Supported
