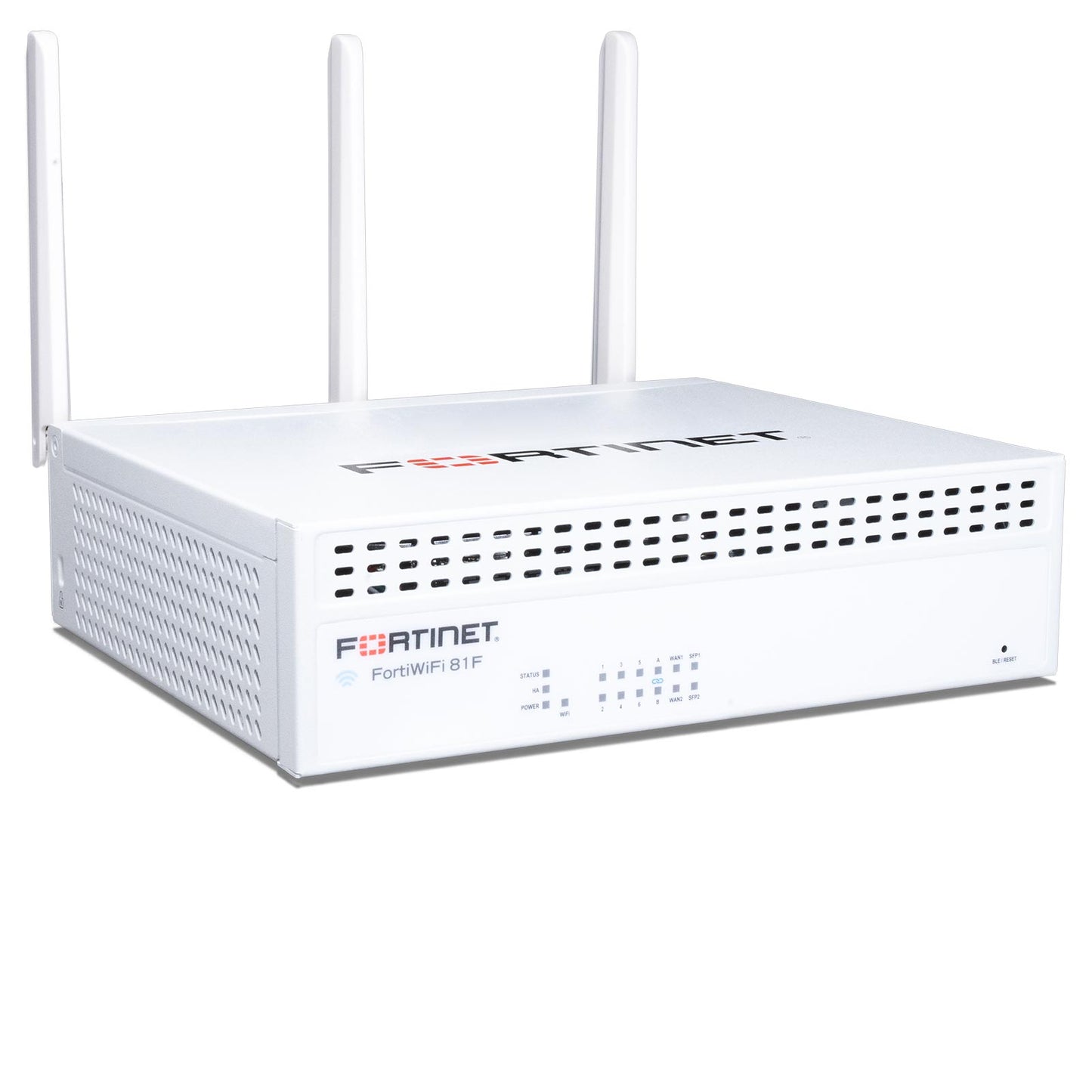

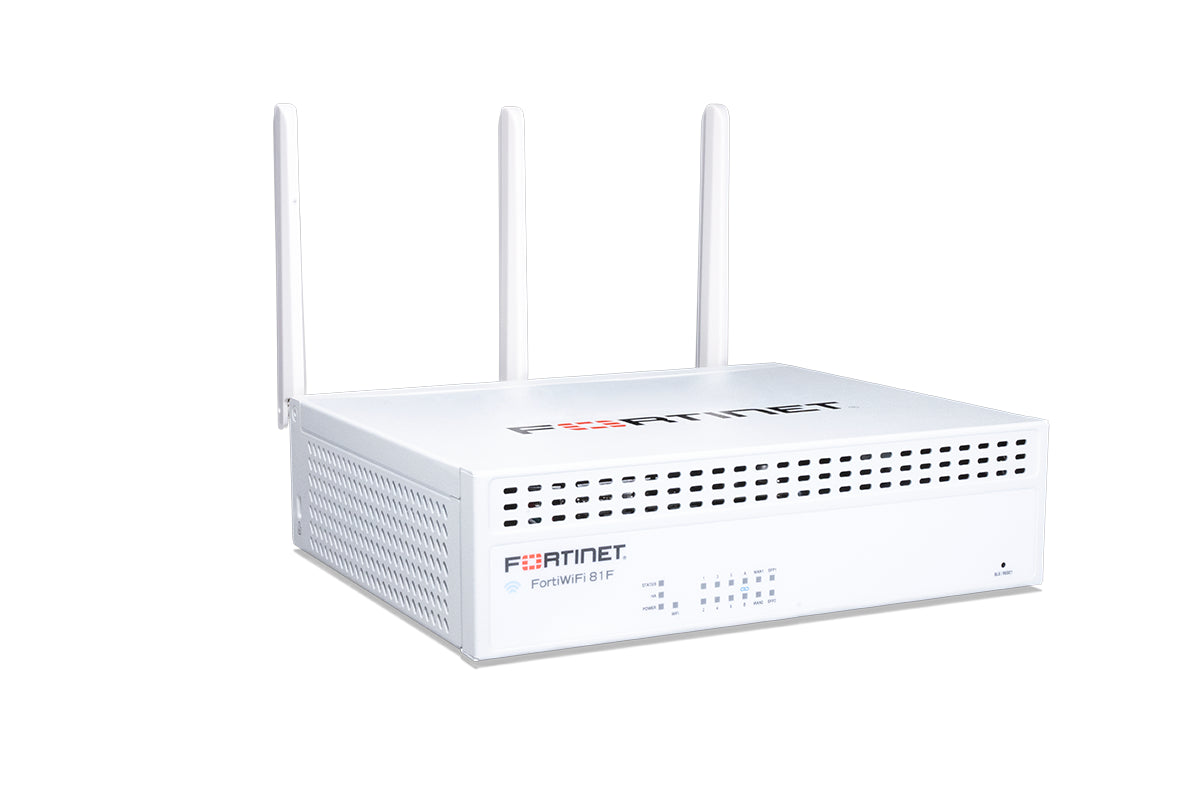

Fortinet FortiWiFi-81F Security Appliance w/3YR FortiCare, 3G/4G, POE

VENDOR: FORTINET Mfg Part#: FWF-81F-2R-3G4G-POE-N-BDL-809-36
1 3
Photo is for illustration purposes only. Actual product may be different.
$10,068.18
$10,068.18
Sale Sold out
MSRP: $13,753.33
Shipping calculated at checkout.
  • Supports up to 700,000 concurrent sessions and 35,000 new sessions per second
  • Delivers 1 Gbps Intrusion Prevention System (IPS) throughput
  • Includes 14 networking ports with Power over Ethernet (PoE) capability
  • Dual-band wireless with 3x3 MU-MIMO and dual radios (2.4 GHz and 5 GHz)
  • Integrated LTE with 3G/4G support and SMA antenna connectors
  • Includes 128 GB hard drive for local storage and analytics

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with 3-year FortiCare Premium and FortiGuard Enterprise Protection for advanced threat defense and support
  • Highly scalable and reliable with up to 700,000 concurrent sessions—ideal for busy branch offices
  • Integrated wireless and LTE features allow flexible, redundant connectivity options in one appliance

Product Overview

The Fortinet FortiWiFi-81F-2R-3G4G-POE integrates advanced wireless connectivity, high throughput security performance, and enterprise-level support in a compact form. Supporting 700,000 concurrent sessions and 1 Gbps IPS throughput, it’s fit for branch networks with high-demand workloads. Dual-band wireless and 3x3 MU-MIMO optimize Wi-Fi coverage, while LTE support ensures wide-area redundancy. Includes 3-year FortiCare Premium & FortiGuard Enterprise services for superior threat protection and operational support.

Specifications

Product Overview
Product Type Security Appliance
Model FWF-81F-2R-3G4G-POE
Form Factor Desktop
Hard Drive 128 GB
Max Power Consumption 133.6 Watt
Power / Voltage Required 100-240V AC
Service & Support Type 3 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac Wave 2
MIMO Type 3x3 MU-MIMO
Antenna Type Antenna
Antenna Connectors SMA
Cellular Technology LTE
Cellular Generation 3G/4G
SIM Slots 2x Nano SIM slots

Compliance & Origin
Country of Origin Inquire
TAA compliance Inquire
Certifications FCC, CE, ICES, RCM, VCCI, BSMI, UL/cUL, CB

Advanced Security Features
Firewall Throughput 1.4 Gbps
IPS Throughput 1 Gbps
NGFW Throughput 900 Mbps
Threat Protection Throughput 800 Mbps
Concurrent Sessions 700000
New Sessions Per Second 35000
Firewall Type Unified Threat Management (UTM)
Antivirus Yes, via FortiGuard subscription
Web Filtering Yes, via FortiGuard subscription
Intrusion Prevention System (IPS) Yes
Application Control Yes
Malware Protection Yes
SSL Inspection Yes
VPN Support IPSec, SSL

Interfaces
Networking / Ports Qty 14
Interface Types 10x GE RJ45 Ports, 2x GE RJ45 PoE/+ Ports, 2x Shared Media Pair (2x GE RJ45 or 2x GE SFP Slots)
PoE Support Yes, on 2 GE RJ45 Ports
USB Ports 1x USB 3.0
Console Port 1x RJ45 Console Port

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Weight 2.87 lbs (1.3 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Humidity (Operating) 10% to 90% non-condensing
Humidity (Storage) 5% to 95% non-condensing
Cooling Fanless (Passive)

Cloud Management & Licensing
Management Interface FortiOS, Web UI, CLI, FortiManager, FortiCloud
Included Licenses 3-Year FortiCare Premium & FortiGuard Enterprise
Cloud Features Centralized cloud-based management, analytics, and reporting via FortiCloud
