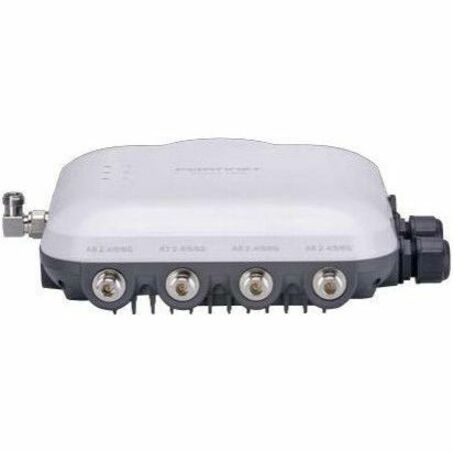

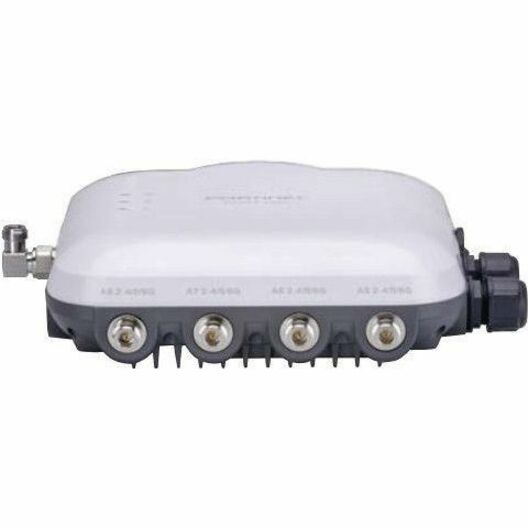

FORTINET HW FAP-432G Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-A
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,909.77
$1,909.77
Sale Sold out
MSRP: $2,600.00
Shipping calculated at checkout.
  • Tri-radio configuration: 1x 4x4 802.11b/g/n/ax (2.4GHz), 1x 4x4 802.11a/n/ac/ax (5GHz), 1x 2x2 802.11a/b/g/n/ac/ax (6GHz)
  • Outdoor-rated build suitable for deployments in harsh environmental conditions
  • Supports 802.11ax (Wi-Fi 6), ensuring improved capacity and efficiency
  • Manufactured in Taiwan for assured hardware quality
  • 6GHz band operation (subject to regional regulations) for increased wireless spectrum

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for high-density outdoor environments such as campuses or public event areas due to its tri-radio, dual 4x4 MIMO configuration.
  • Supports the latest 802.11ax technology, providing improved wireless efficiency and future scalability.
  • Seamless integration with Fortinet's Security Fabric simplifies management and enhances network security across deployments.

Product Overview

The Fortinet FortiAP-432G-A is a high-performance outdoor wireless access point with tri-radio support, offering simultaneous operation across 2.4GHz, 5GHz, and 6GHz bands (6GHz availability depends on region). Engineered for enterprise deployment in high-density scenarios, it features multi-user capacity with 4x4 and 2x2 MU-MIMO radios and runs advanced protocols like 802.11ax for high throughput. Integrated with Fortinet's Security Fabric, it ensures secure and centralized network management. Manufactured in Taiwan, the device suits campuses, venues, and outdoor enterprise zones, delivering exceptional ROI by combining bandwidth versatility, robust construction, and simplified IT workflows.

Specifications

Product Overview
Product Type Outdoor Wireless Access Point
Model FortiAP-432G-A
Wireless Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Radio Configuration Tri-Radio (4x4 @ 5GHz, 4x4 @ 2.4GHz, 2x2 @ 6GHz)
Form Factor Outdoor-mounted (wall or pole mount)
Weight 2.5 kg
Power Options PoE+ (802.3at) or DC input
Power Consumption (Max) 25.5 W

Wireless Features
Wi-Fi Frequency Bands 2.4GHz, 5GHz, and 6GHz
MU-MIMO Support Yes, 4x4 MU-MIMO and 2x2 MU-MIMO
Max Simultaneous Users 512+
Max SSIDs per Radio 16
Antenna Type Integrated Omni-directional antennas
Beamforming Yes
OFDMA Supported
BSS Coloring Supported
Wireless Encryption WPA2, WPA3

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, CE, IC, UL, WEEE, RoHS
Regulatory Domain Dependent on region (supports 6GHz where allowed)

Advanced Security Features
Integration with Security Fabric Yes
WIDS/WIPS Supported
MAC Filtering Yes
VLAN Tagging Supported (802.1Q)
Client Isolation Yes
Secure Tunneling IPSec VPN Support through FortiGate

Interfaces
Ethernet Ports 2 x 1/2.5/5 GbE RJ45
Console Port 1 x RJ45 Console Port
Peripheral Ports 1 x USB 2.0
Data Transfer Rate (Max) 5.95 Gbps aggregate (theoretical)
Link Aggregation Supported - LACP

Physical & Environmental
Dimensions (W x D x H) 245 x 245 x 55.4 mm
Enclosure Protection IP67 rated
Mounting Options Wall mount, pole mount
Operating Temperature -40°C to 65°C
Storage Temperature -40°C to 85°C
Operating Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Platform FortiGate Wireless Controller or FortiCloud
Zero-Touch Deployment Yes
Licensing Requirements Controller-managed licenses (via FortiGate or FortiCloud)
Configuration Options Centralized via FortiOS / FortiLAN Cloud
Monitoring Features Real-time performance, network topology, client history
Firmware Updates Automatic via cloud or manual via FortiGate
