FORTINET HW FAP-432G Outdoor Tri-Radio Wireless Access Point

VENDOR: FORTINET Mfg Part#: FAP-432G-E
1 3

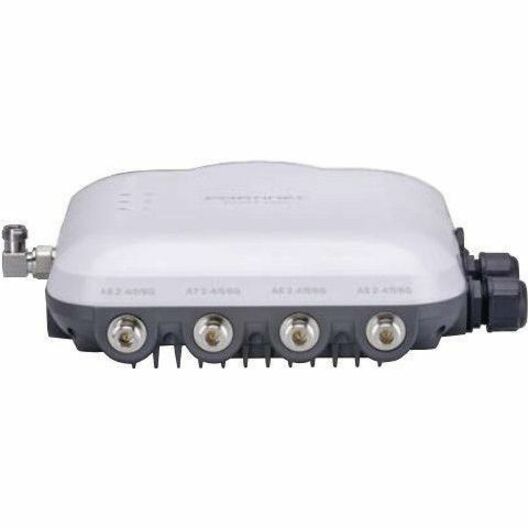

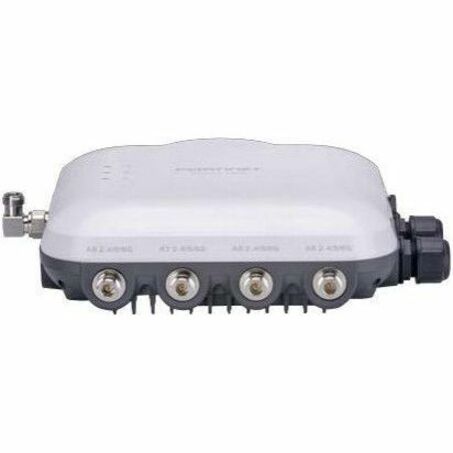

Photo is for illustration purposes only. Actual product may be different.
$1,902.73
$1,902.73
Sale Sold out
MSRP: $2,600.00
Shipping calculated at checkout.
  • Tri-radio wireless access point: 2.4GHz (4x4 MIMO), 5GHz (4x4 MIMO), and 6GHz (2x2 MIMO)
  • Supports 802.11b/g/n/ax and 802.11a/n/ac/ax standards
  • Wi-Fi 6E compatibility (regional availability for 6GHz band)
  • Outdoor deployment-ready design
  • Manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Tri-radio design supports simultaneous multi-band connections, ideal for high-density environments.
  • Wi-Fi 6/6E support enhances throughput, reduces latency, and improves user experience.
  • Seamless security integration with Fortinet’s fabric enables scalable, centrally managed network deployments.

Product Overview

The Fortinet HW FAP-432G is an advanced tri-radio outdoor access point, delivering high-capacity Wi-Fi via 2.4GHz, 5GHz, and 6GHz Wi-Fi 6E bands. It features MIMO 4x4 radios on both 2.4GHz and 5GHz for dense environments, and a 2x2 6GHz radio where permitted by regulations. With its outdoor-ready design and seamless integration into Fortinet’s security fabric, it supports enterprise-grade deployments requiring low latency, strong coverage, and secure connectivity.

Specifications

Product Overview
Product Type Outdoor Tri-Radio Wireless Access Point
Model FAP-432G-E
Series FortiAP
Deployment Type Outdoor
Wireless Technology Wi-Fi 6E (802.11ax)
Radio Configuration Tri-Radio (2.4 GHz, 5 GHz, 6 GHz)
MIMO Technology 4x4 at 2.4 GHz & 5 GHz; 2x2 at 6 GHz
Maximum Data Rate 10.2 Gbps aggregate
Power Supply PoE+ (802.3at) or 48V DC
Power Consumption 25.8 Watts (typical)
LED Indicators Power, Ethernet, Radio

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Wi-Fi Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Spatial Streams 10 (4x4 for 2.4/5 GHz, 2x2 for 6 GHz)
MU-MIMO Support Yes
Beamforming Yes
Maximum Concurrent Clients 1536+
Security Protocols WPA3, WPA2, WPA
Fast Roaming Protocols 802.11r/k/v

Compliance & Origin
Country of Origin Taiwan
Certifications FCC, IC, CE, RCM, UL2043, Wi-Fi 6E Certified
Environmental Compliance RoHS, REACH

Advanced Security Features
Integrated Security Seamless with Fortinet Security Fabric
Wireless Intrusion Detection System (WIDS) Yes
Wireless Intrusion Prevention System (WIPS) Yes
Application Control Policies Available via FortiGate integration
Guest Access Support Yes with captive portal
Role-Based Access Control Yes
Dynamic VLAN Assignment Yes

Interfaces
Ethernet Ports 2 x 2.5 Gbps Ethernet (RJ-45)
Console Port 1 x RJ-45 Serial Console
PoE Support 802.3at (PoE+)
Pass-through Support Yes, 1 x Ethernet pass-through port
Antenna Connectors Integrated omnidirectional antennas
Data Transfer Rate (2.4GHz) Up to 1.1 Gbps
Data Transfer Rate (5GHz) Up to 4.8 Gbps
Data Transfer Rate (6GHz) Up to 4.3 Gbps

Physical & Environmental
Enclosure Type Ruggedized Outdoor (IP67 rated)
Mounting Options Pole and wall mount hardware included
Dimensions (H x W x D) 285 x 205 x 75 mm
Weight 2.4 kg
Operating Temperature -40°C to +65°C (-40°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Operating Humidity 5% to 95% non-condensing
Ingress Protection IP67 Dust and Water Resistant
Surge Protection Built-in lightning protection

Cloud Management & Licensing
Management Platform FortiGate Controller or FortiCloud
Zero Touch Deployment Supported
Controller-less Operation Yes, via FortiCloud
Cloud-Managed Features Configuration, Monitoring, Firmware Updates, Analytics
Licensing Requirement License required for FortiCloud or FortiGate Wi-Fi management
