| Product Type | Network Device |
| Model | FORTIWIFI-80F-2R-3G4G-DSL |
| Manufacturer Part Number | FWF-80F-2R-3G4G-DSL-N-BDL-809-36 |
| Form Factor | Desktop |
| Power / Voltage Required | 100-240V |
| Max Power Consumption | 34.31 Watt |
| Weight | 1.87 lbs (0.85 kg) |

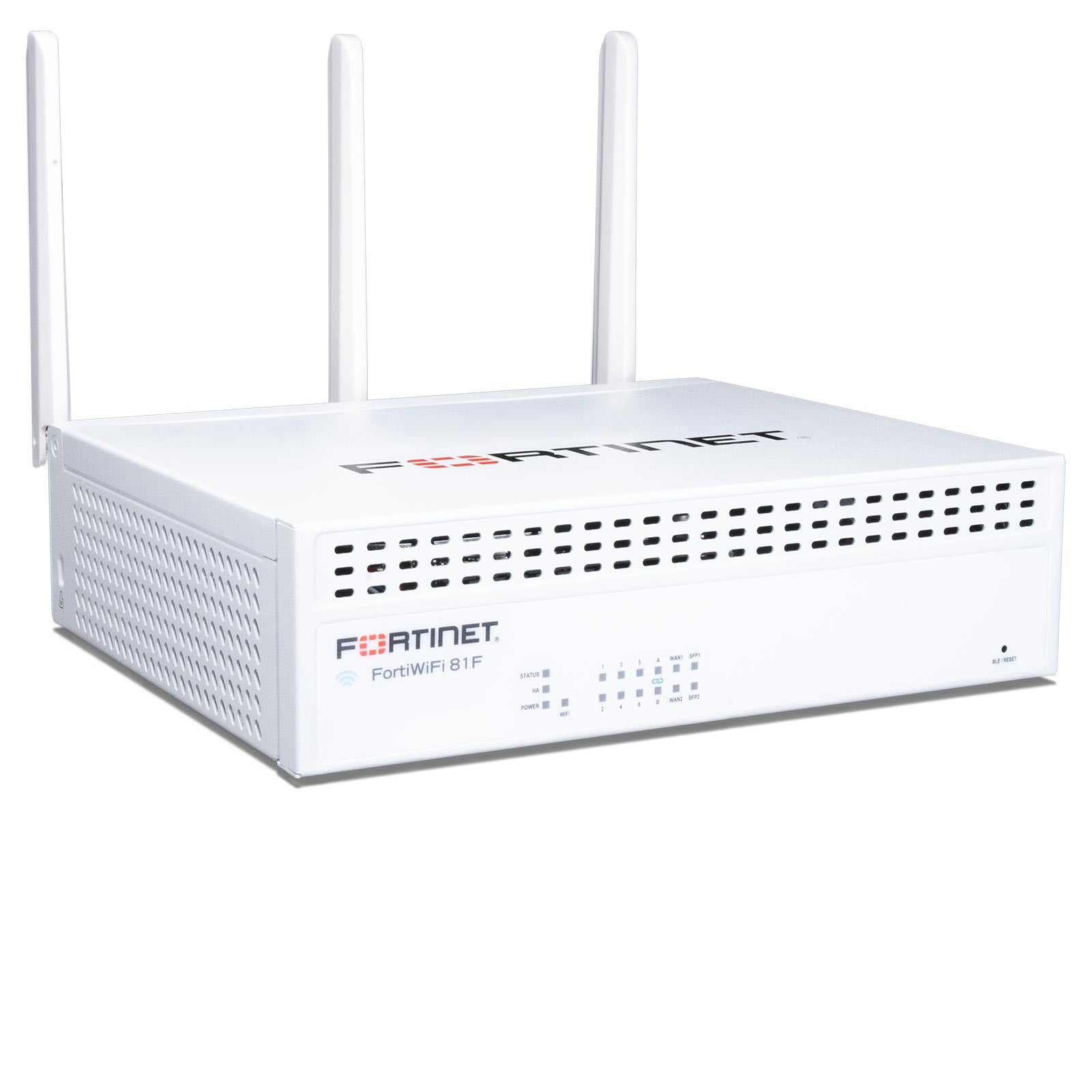

FortiWiFi-80F-2R-3G4G-DSL with 3-Year FortiCare & FortiGuard
Photo is for illustration purposes only. Actual product may be different.
Regular price
$8,206.64
Regular price
Sale price
$8,206.64
Unit price
per
MSRP: $11,209.59
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports dual-band Wi-Fi (2.4 GHz and 5 GHz) with 3x3 MIMO for high-performance wireless connectivity
- Integrated LTE (3G/4G) with SMA antenna connectors enables wireless WAN failover
- Delivers up to 4.4 Gbps VPN IPSec throughput and supports 700,000 concurrent sessions
- 15-port configuration for versatile connectivity and scalability
- Desktop form factor with compact dimensions and low power consumption (34.31W max)
- Includes 3-Year FortiCare Premium and FortiGuard Enterprise Protection for advanced threat mitigation
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Combines high-performance wired, wireless, and cellular networking in a compact, energy-efficient appliance
- Bundled 3-year FortiCare Premium and FortiGuard Enterprise Protection ensures ongoing security and support value
- Ideal for branch offices needing secure, scalable connectivity with simplified deployment via 15 ports
Product Overview
The Fortinet FortiWiFi-80F-2R-3G4G-DSL is an integrated security gateway designed for branch offices and distributed networks requiring both wired and wireless connectivity with advanced security. It features Gigabit Ethernet and Wi-Fi support, with dual-band (2.4 GHz and 5 GHz) coverage and 3x3 MIMO for improved wireless performance. LTE (3G/4G) connectivity and SMA antenna interfaces make it suitable for locations with limited wired access and ensure high availability.
This model enables enterprise-grade protection with up to 4.4 Gbps VPN IPSec throughput and over 700,000 concurrent sessions. The bundled 3-year FortiCare Premium and FortiGuard Enterprise Protection support provide proactive defense through real-time threat detection and mitigation. A 15-port configuration supports deployment scalability for growing edge network environments.
Measuring 8.5 x 7 x 2.4 inches with low power consumption (34.31W max), this appliance offers an efficient and compact solution for secure networking in hybrid IT environments.
Specifications
Product Overview
Wireless Features
| Connectivity Technology | Wireless |
| Radio Count | Dual |
| Frequency Band | 2.4 GHz; 5 GHz |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| MIMO Type | 3x3 MIMO |
| Antenna Type | External Antennas |
| Antenna Connectors | SMA |
| Cellular Technology | LTE |
| Cellular Generation | 3G |
| Cellular Generation | 4G |
| SIM Slots | 2 x Nano SIM |
Compliance & Origin
| Country of Origin | Inquire |
| TAA Compliance | Inquire |
| Certifications | FCC Part 15 Class B, CE, RoHS Compliant |
Advanced Security Features
| Firewall Throughput | 10 Gbps |
| VPN IPSec Throughput | 4.4 Gbps |
| Concurrent Sessions | 700000 |
| New Sessions Per Second | 35000 |
| IPS Throughput | 1 Gbps |
| Antivirus Throughput | 700 Mbps |
| Application Control | Yes |
| Web Filtering | Yes |
| Malware Protection | Yes |
| Intrusion Prevention System (IPS) | Yes |
| Threat Protection Throughput | 900 Mbps |
| SSL Inspection Throughput | 750 Mbps |

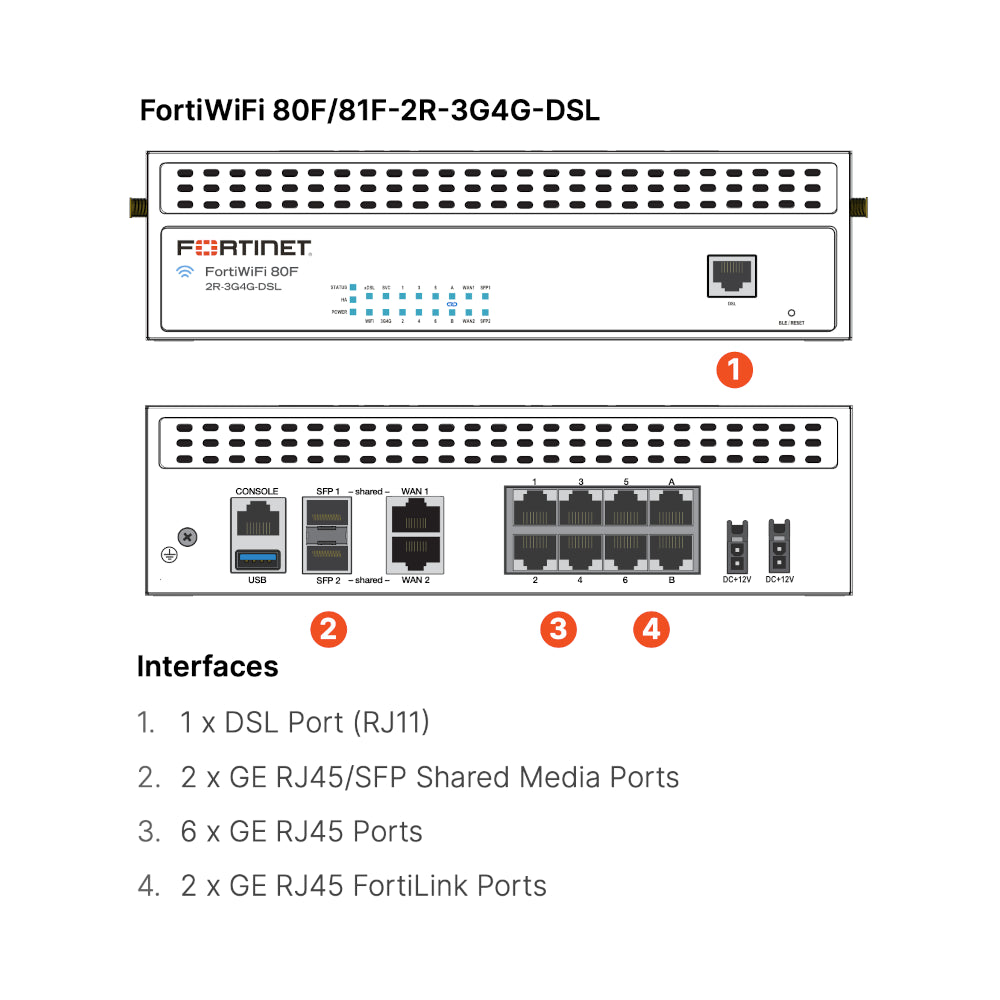

Interfaces
| Networking Type | Ethernet |
| Data Link Protocol | Gigabit Ethernet |
| Data Link Protocol | Wi-Fi |
| Transport Protocol | Gigabit Ethernet |
| Networking / Ports Qty | 15 |
| Console Port | 1 x RJ45 Serial Console |
| USB Ports | 1 x USB 3.0 |
| WAN Ports | 2 x GE RJ45 |
| LAN Ports | 10 x GE RJ45 |
| DSL Port | 1 x DSL WAN Port |
| SFP Ports | 2 x Shared Media GE RJ45/SFP |
Physical & Environmental
| Width | 8.5 Inch |
| Depth | 7 Inch |
| Height | 2.4 Inch |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -35°C to 70°C (-31°F to 158°F) |
| Humidity (Non-Condensing) | 10% to 90% |
| Fanless | Yes |
Cloud Management & Licensing
| Management Interface | FortiOS via GUI, CLI, and FortiManager |
| Service & Support Type | 3 YEAR HARDWARE PLUS FORTICARE PREMIUM AND FORTIGUARD ENTERPRISE PROTECTION |
| Cloud-Based Management | Supported via FortiCloud |
| Included Licensing | FortiCare Premium & FortiGuard Enterprise (3-Year) |
