FortiWiFi-81F-2R-3G4G-DSL w/ 3YR FortiCare & FortiGuard

VENDOR: FORTINET Mfg Part#: FWF-81F-2R-3G4G-DSL-Y-BDL-809-36
1 3

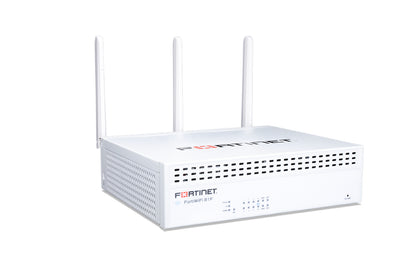

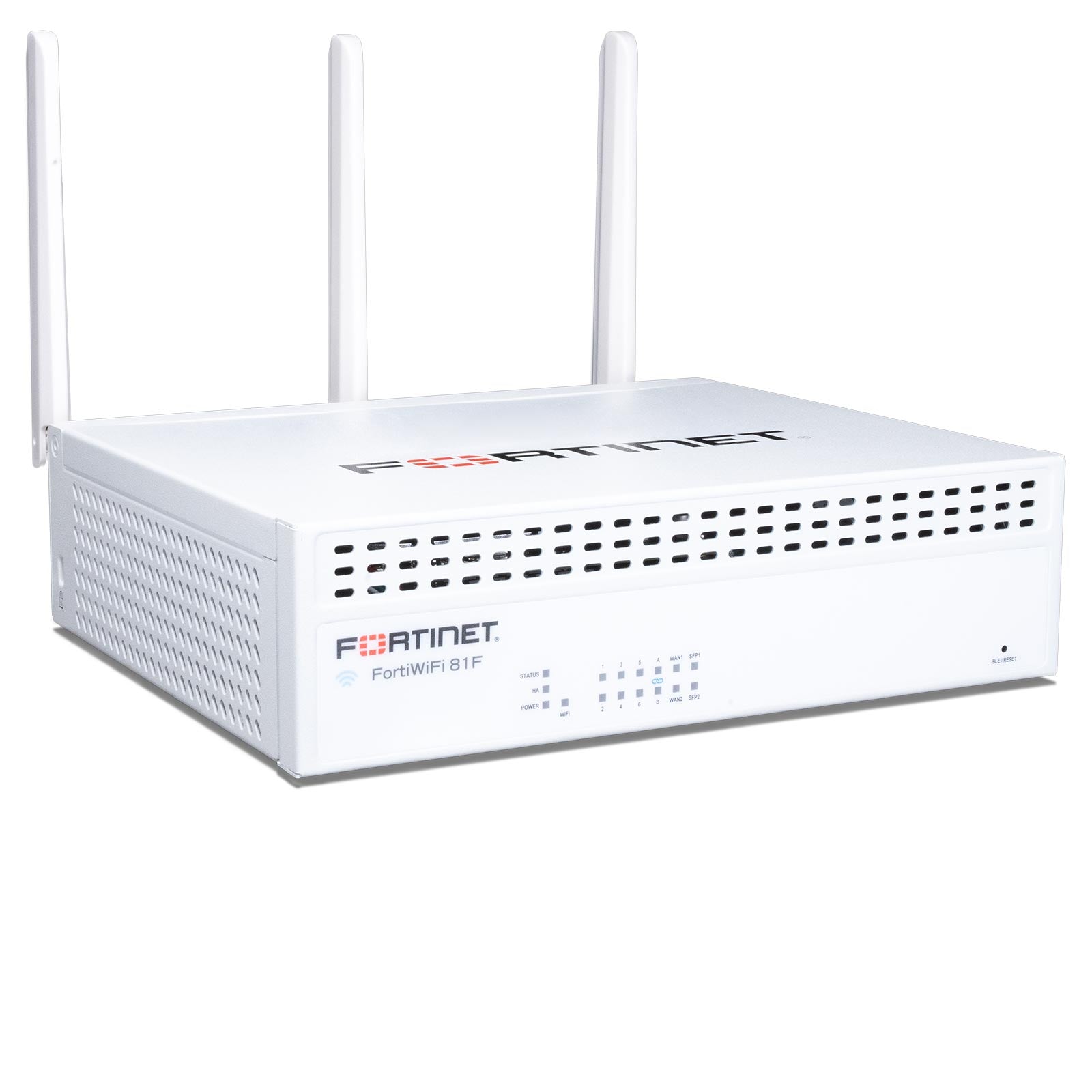

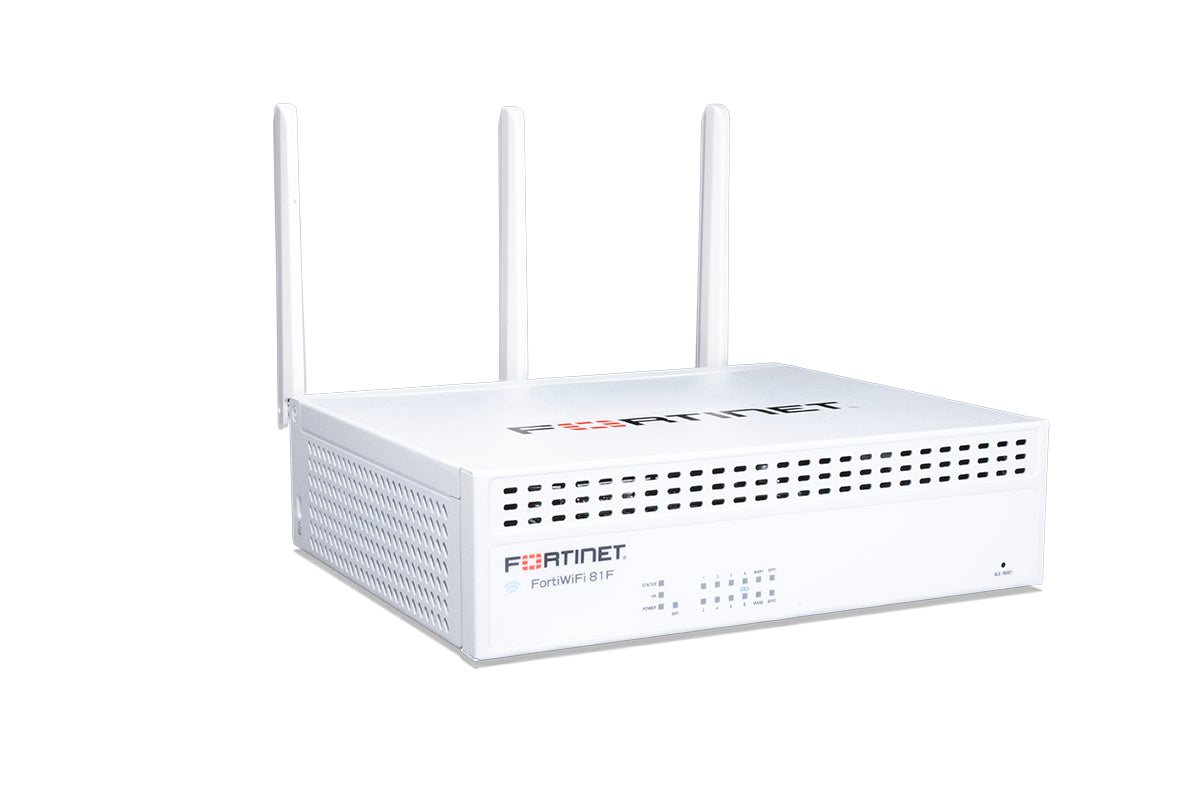

Photo is for illustration purposes only. Actual product may be different.
$8,754.01
$8,754.01
Sale Sold out
MSRP: $11,957.56
Shipping calculated at checkout.
  • Supports 1 Gbps Intrusion Prevention System (IPS) throughput
  • Dual-radio support for 2.4 GHz and 5 GHz Wi-Fi bands
  • 15 Ethernet ports for extensive LAN/WAN connectivity
  • Integrated 3G/4G LTE support with SMA connectors
  • Handles 700,000 concurrent and 35,000 new sessions per second
  • Includes 128 GB local hard drive for storage and logging

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Bundled with 3-year FortiCare Premium and FortiGuard Enterprise Protection for enhanced security and support
  • Compact desktop form factor with high throughput and multi-protocol routing ideal for remote or branch offices
  • Integrated LTE and dual-band Wi-Fi enable hybrid and redundant connectivity for business continuity

Product Overview

The FortiWiFi-81F-2R-3G4G-DSL is a high-performance desktop security appliance delivering 1 Gbps IPS throughput, dual-radio Wi-Fi (2.4 and 5 GHz), and integrated LTE (3G/4G) connectivity via SMA connectors. With 15 ports and support for up to 700,000 concurrent sessions, it is ideal for branch-level deployment. The bundled 3-year FortiCare Premium and FortiGuard Enterprise Protection provides proactive threat intelligence and expert support, enhancing network defense and lowering operational risks.

Specifications

Product Overview
Product Type Security Appliance
Form Factor Desktop
Model FWF-81F-2R-3G4G-DSL
Networking Type Ethernet
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
IPS Throughput 1 Gbps
Concurrent Sessions 700000
New Sessions Per Second 35000
Max Power Consumption 35.6 Watt
Power / Voltage Required 100-240V AC
Hard Drive 128 GB

Wireless Features
Connectivity Technology Wireless
Radio Count Dual
Frequency Band 2.4 GHz; 5 GHz
Wi-Fi Standards 802.11a/b/g/n/ac
Antenna Type Antenna
Antenna Connectors SMA
Cellular Technology LTE
Cellular Generation 3G
Cellular Generation 4G
SIM Card Slots 1 x Nano SIM

Compliance & Origin
Country of Origin
TAA Compliance
Certifications FCC, IC, CE, RCM, VCCI, BSMI, UL/cUL, CB
RoHS Compliance Yes

Advanced Security Features
Firewall Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 700 Mbps
VPN Throughput 1 Gbps
IPSec VPN Tunnels 200
SSL VPN Users 200
Intrusion Prevention System (IPS) Yes
Antivirus/Antimalware Yes
Web Filtering Yes
Application Control Yes
Threat Intelligence Service FortiGuard Labs
Content Filtering Yes
Sandboxing Support Yes (via FortiSandbox/FortiCloud)

Interfaces
Networking / Ports Qty 15
Interface Type 10/100/1000 Base-T Ethernet
Console Port 1 x RJ-45
USB Ports 2 x USB 3.0
DSL Port 1 x RJ-11 VDSL/ADSL port
WAN Ports 2 x GE RJ-45/SFP Shared Media
LAN Ports 12 x GE RJ-45

Physical & Environmental
Width 8.5 Inch
Depth 7 Inch
Height 2.4 Inch
Weight 3.5 lbs (Approximate)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -31°F to 158°F (-35°C to 70°C)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling Type Fanless (Silent)

Cloud Management & Licensing
Management Interface FortiOS (Web UI, CLI, FortiManager, FortiCloud)
Cloud Management Supported via FortiCloud
Included Licensing 3 Year FortiCare Premium and FortiGuard Enterprise Protection
Remote Management Protocols HTTPS, SSH, SNMP, Telnet
