GIGABYTE B650E AORUS ELITE X AX ICE ATX Motherboard

VENDOR: GIGABYTE Mfg Part#: B650E AORUS ELITE X AX ICE UPC#: 889523041895
1 5
Photo is for illustration purposes only. Actual product may be different.
$249.99
$249.99
Sale Sold out
Shipping calculated at checkout.
  • - ATX form factor with AMD B650 chipset and Socket AM5 compatibility
  • - Supports AMD Ryzen 7000 and 8000 Series processors
  • - Up to 192 GB DDR5 RAM support with non-ECC memory
  • - Integrated HDMI, USB, RJ-45 Ethernet, and SMA antenna connectors
  • - Digital twin 12+2+2 phase VRM power delivery solution
  • - Includes 1 x PCI Express x16 slot integrated in CPU

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Built-in support for next-generation AMD Ryzen processors on the AM5 platform ensures maximum performance scalability
  • - Advanced VRM power phase design enhances system stability under high-performance loads
  • - Extensive connectivity and expansion options make it ideal for gaming and professional applications

Product Overview

The GIGABYTE B650E AORUS ELITE X AX ICE is a feature-rich ATX motherboard tailored for AMD Ryzen 7000 / Ryzen 8000 processors, using the advanced Socket AM5. Supporting up to 192 GB of DDR5 memory, it features a digital twin 12+2+2 phase VRM for effective power management. This board offers broad connectivity including HDMI, USB, RJ-45 Ethernet, and SMA antenna connectors. With a durable ATX form factor and versatile expandability via a PCIe x16 slot, it is well-suited for high-performance builds. Its robust component support and future-ready platform make it an ideal choice for both gaming and professional workloads.

Specifications

Product Overview
Model B650E AORUS ELITE X AX ICE
Product Type Motherboard
Chipset AMD B650E
Form Factor ATX
Processor Socket Socket AM5
Compatible Processor Series AMD Ryzen 7000 / Ryzen 8000 Series
VRM Power Phases 12+2+2 Digital Twin Phases
Power Connectors 1 x 24-pin ATX, 2 x 8-pin ATX 12V
Max Memory Supported 192 GB
Memory Type DDR5
Non-ECC Support Yes
ECC Support No
Onboard Graphics Output HDMI 2.1
UPC 889523041895

Wireless Features
Wireless LAN Intel Wi-Fi 6E AX210
Bluetooth Bluetooth 5.3
Antenna Connectors 2 x SMA (for Wi-Fi)
Wi-Fi Bands 2.4 GHz, 5 GHz, 6 GHz
Wi-Fi Standard 802.11a/b/g/n/ac/ax (Wi-Fi 6E)

Compliance & Origin
Country of Origin China
RoHS Compliance Yes
EMC Certification CE, FCC
Environment Standards Energy Star qualified

Advanced Security Features
TPM Support Firmware TPM (fTPM) support
Secure Boot Yes
BIOS Password Protection Yes

Interfaces
Expansion Slots 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1
M.2 Slots 4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4)
SATA Ports 4 x SATA III (6 Gbps)

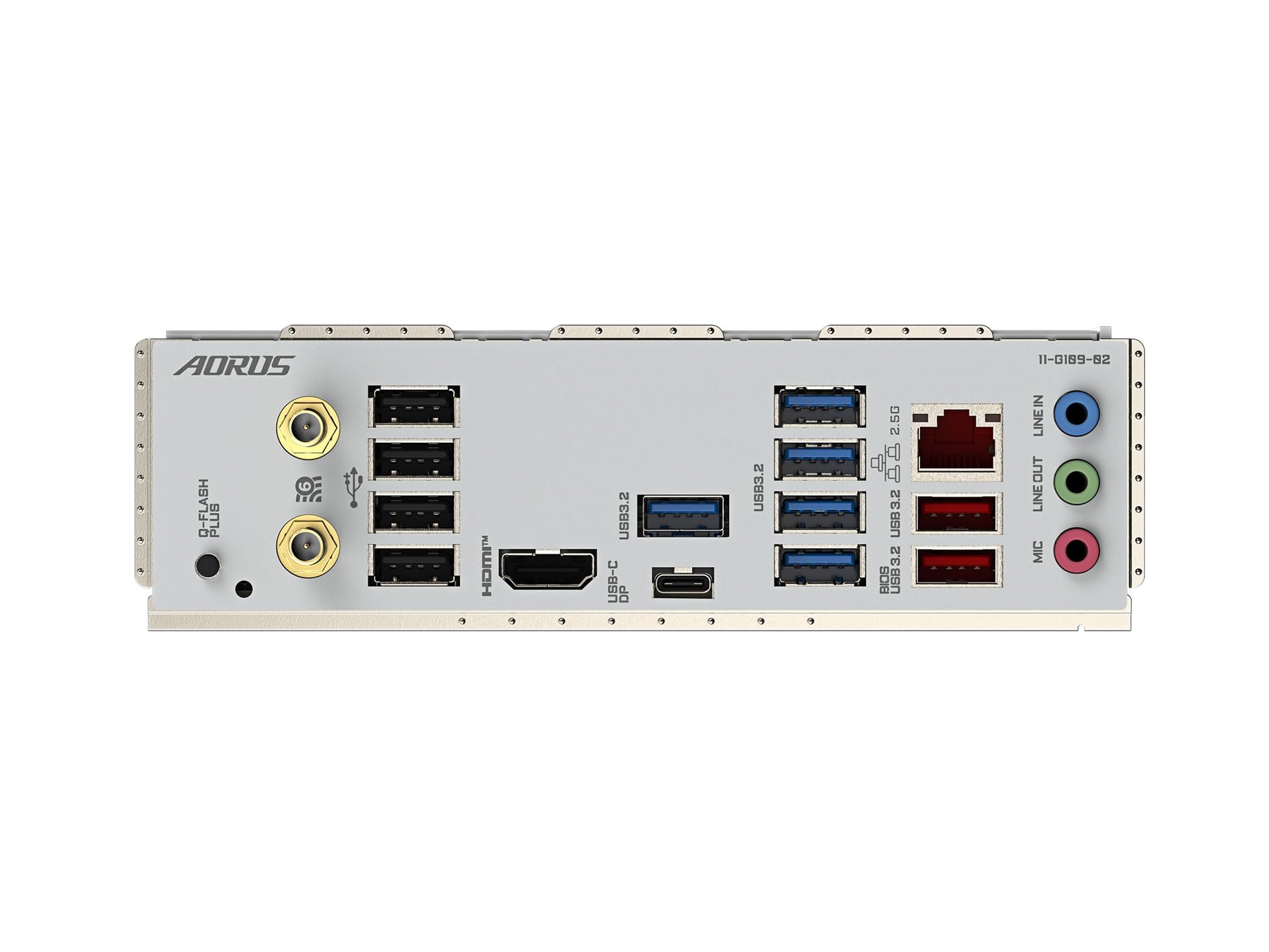

USB Ports (Rear) 1 x USB-C 3.2 Gen 2x2, 3 x USB-A 3.2 Gen 2, 4 x USB-A 3.2 Gen 1, 2 x USB-A 2.0
USB Ports (Internal Headers) 1 x USB-C 3.2 Gen 2, 2 x USB-A 3.2 Gen 1, 4 x USB-A 2.0
Audio Jacks 5 x 3.5 mm + 1 x Optical S/PDIF Out
Network (LAN) Port 1 x RJ-45 (2.5 GbE)
HDMI Version HDMI 2.1

Physical & Environmental
Width 30.5 cm
Depth 24.4 cm
Operating Temperature 0°C to 85°C
Storage Temperature -40°C to 90°C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Firmware Management Q-Flash Plus, BIOS FlashBack
BIOS Features AMI UEFI BIOS, Dual BIOS, 256 Mb flash
RGB Control Utility RGB FUSION 2.0
