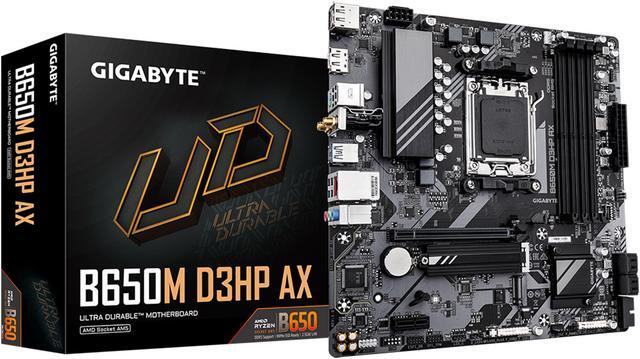

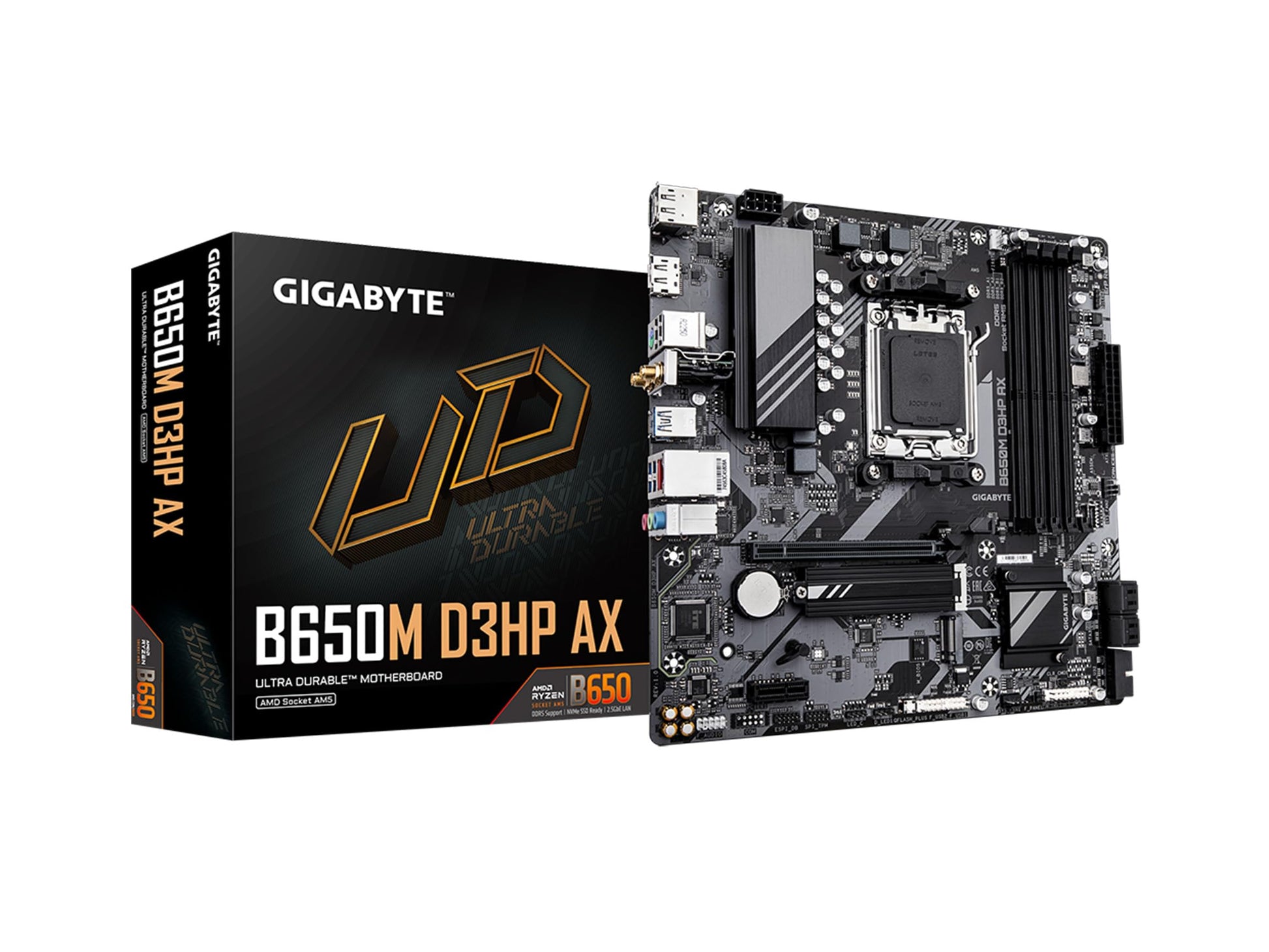

GIGABYTE B650M D3HP AX Micro ATX AM5 DDR5 Motherboard

VENDOR: GIGABYTE Mfg Part#: B650M D3HP AX UPC#: 889523040584
1 4
Photo is for illustration purposes only. Actual product may be different.
$151.59
$151.59
Sale Sold out
MSRP: $164.99
Shipping calculated at checkout.
  • Socket AM5 support for AMD Ryzen 7000 and 8000 Series
  • Supports up to 192 GB DDR5 non-ECC unbuffered RAM across 4 DIMMs
  • Dual PCIe 4.0 M.2 slots and 4x SATA 6Gb/s with RAID support
  • Wi-Fi 6E, Bluetooth 5.3, and 2.5GbE LAN for high-speed connectivity
  • Rear USB-C 3.2 Gen2 and internal USB3.2/USB-C headers
  • Advanced features: Smart Fan 6, Q-Flash Plus, RGB FUSION

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast storage and network performance with PCIe 4.0 M.2 slots and 2.5GbE/Wi-Fi 6E
  • Exceptional memory performance with DDR5 support up to 7600 MHz (OC) for future-ready systems
  • Designed for system builders with DIY-friendly features like Q-Flash Plus and EZ-Latch PCIe slots

Product Overview

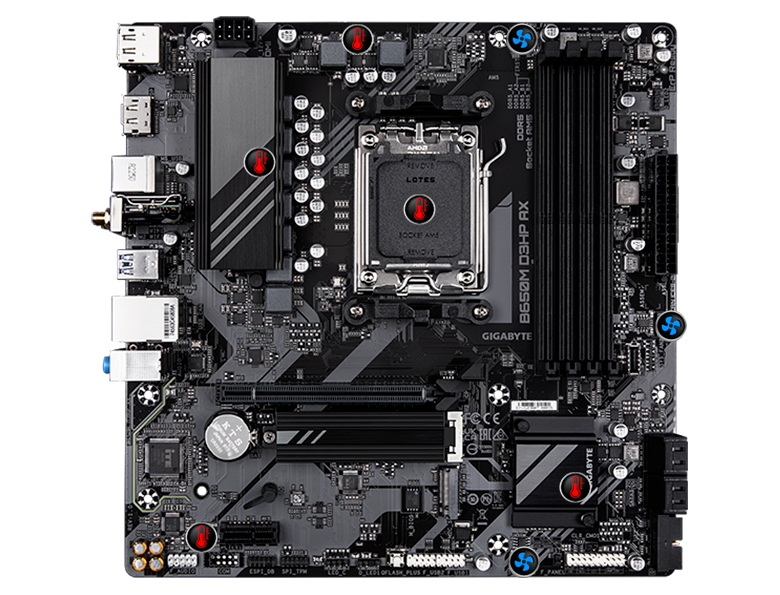

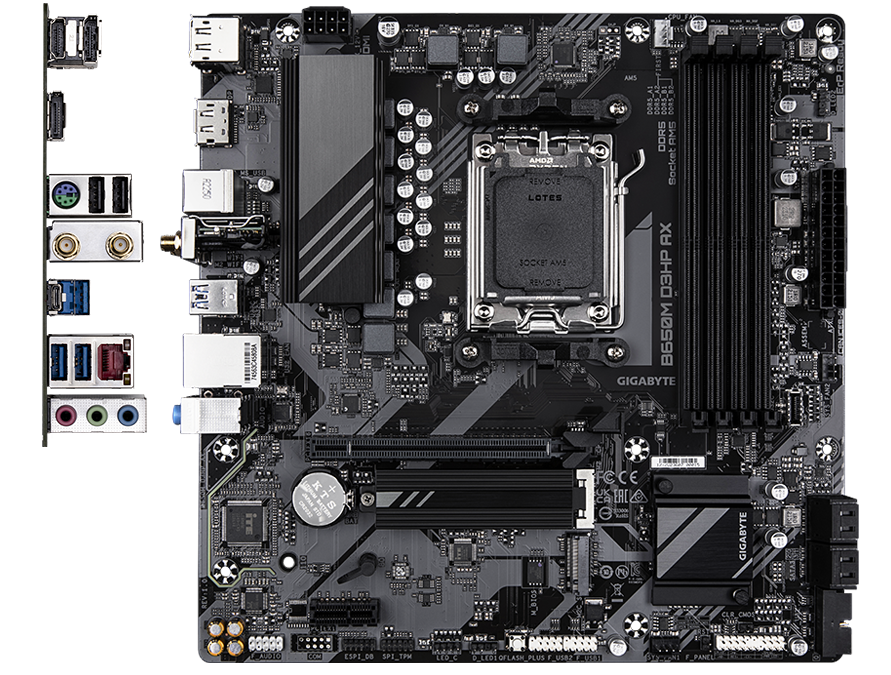

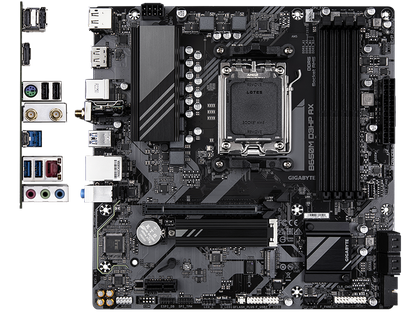

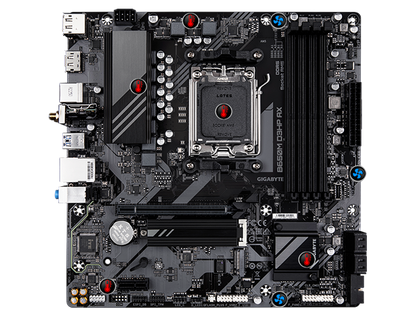

The GIGABYTE B650M D3HP AX (REV. 1.0) is a micro ATX motherboard powered by the AMD B650 chipset and built for AM5 socket CPUs like the Ryzen 7000/8000 Series. It supports DDR5 memory up to 192 GB with frequencies as high as 7600 MHz (OC), backed by a 5+2+2 phase power design for reliability. Its dual M.2 PCIe Gen4 slots and 4x SATA 6Gb/s RAID options make storage solutions flexible and fast. The board delivers high-speed networking through Wi-Fi 6E, Bluetooth 5.3, and 2.5GbE LAN. Additional highlights include USB 3.2 Gen2 Type-C, Q-Flash Plus, Smart Fan 6, and onboard audio with 8-channel HD support. A great option for modern day builds that prioritize speed, expandability, and DIY convenience.

Specifications

Product Overview
Product Type Motherboard - micro ATX
Form Factor Micro ATX
Chipset AMD B650
Processor Socket Socket AM5
Compatible Processors AMD Ryzen 7000 and 8000 Series
Power Phase Design 5+2+2
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
BIOS Type AMI UEFI BIOS
BIOS Features WfM 2.0, UEFI BIOS, SMBIOS 2.7, DMI 2.7, ACPI 5.0, PnP 1.0a
Software Included GIGABYTE Control Center, LAN Manager, Norton Internet Security (OEM Version)
Special Features Q-Flash, Q-Flash Plus, Audio Noise Guard, RGB FUSION, DIY Friendly Design, GIGABYTE Smart Fan 6, PCIe EZ Latch
Audio Realtek 8-Channel HD Audio

Wireless Features
Wi-Fi Standard Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Bluetooth Bluetooth 5.3

Compliance & Origin
Country of Origin China
TAA Compliant No
Audio Standards High Definition Audio

Advanced Security Features
Bundled Security Software Norton Internet Security OEM version

Interfaces
Rear USB Ports 1 x USB-C 3.2 Gen 1, 3 x USB 3.2 Gen 1, 2 x USB 2.0
Internal USB Headers 1 x USB-C 3.2 Gen 1, 2 x USB 3.2 Gen 1, 4 x USB 2.0
Video Outputs 2 x DisplayPort, 1 x HDMI
Audio Ports 1 x audio line-out, 1 x audio line-in, 1 x microphone - all mini-jack
LAN Port 1 x 2.5Gb Ethernet
Antenna Connectors 2 x Antenna connectors (for Wi-Fi)
Expansion Slots 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 Key M
Storage Interfaces 4 x SATA 6Gb/s, 2 x M.2 (PCIe 4.0)
RAID Support RAID 0, 1, 10 for SATA and M.2

Physical & Environmental
Width 9.6 in (24.4 cm)
Depth 9.6 in (24.4 cm)
Hardware Monitoring System voltage, fan fail warning, fan speed detection, temperature sensors, fan control

Cloud Management & Licensing
Management Software GIGABYTE Control Center

Memory Support
Memory Slots 4 x DIMM (288-pin)
Memory Type DDR5
Max Memory Supported 192 GB
Memory Channel Support Dual Channel
Supported Memory Speeds DDR5 4400 MHz to 7600 MHz (OC)
Buffered/Unbuffered Unbuffered
ECC Support Non-ECC
Memory Features Intel XMP, AMD EXPO
