GIGABYTE B760 GAMING X AX ATX DDR5 Motherboard

VENDOR: GIGABYTE Mfg Part#: B760 GAMING X AX UPC#: 889523035849
1 3
Photo is for illustration purposes only. Actual product may be different.
$172.91
$172.91
Sale Sold out
MSRP: $179.99
Shipping calculated at checkout.
  • - ATX form factor with dimensions of 30.5 cm x 24.4 cm
  • - Compatible with 13th and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs
  • - Supports both DDR5 and DDR4 memory with ECC/Non-ECC options
  • - Storage and expansion via M.2, PCI Express, and SATA interfaces
  • - Built-in Realtek Audio CODEC and AMD Wi-Fi 6E RZ608 wireless networking
  • - Multiple connectivity options including DisplayPort, HDMI, USB, and RJ-45

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports latest Intel CPU generations for optimized future-readiness.
  • Dual DDR5/DDR4 memory compatibility provides upgrade flexibility and cost control.
  • Integrated Wi-Fi 6E enables high-speed, low-latency wireless connectivity for gaming and multitasking.

Product Overview

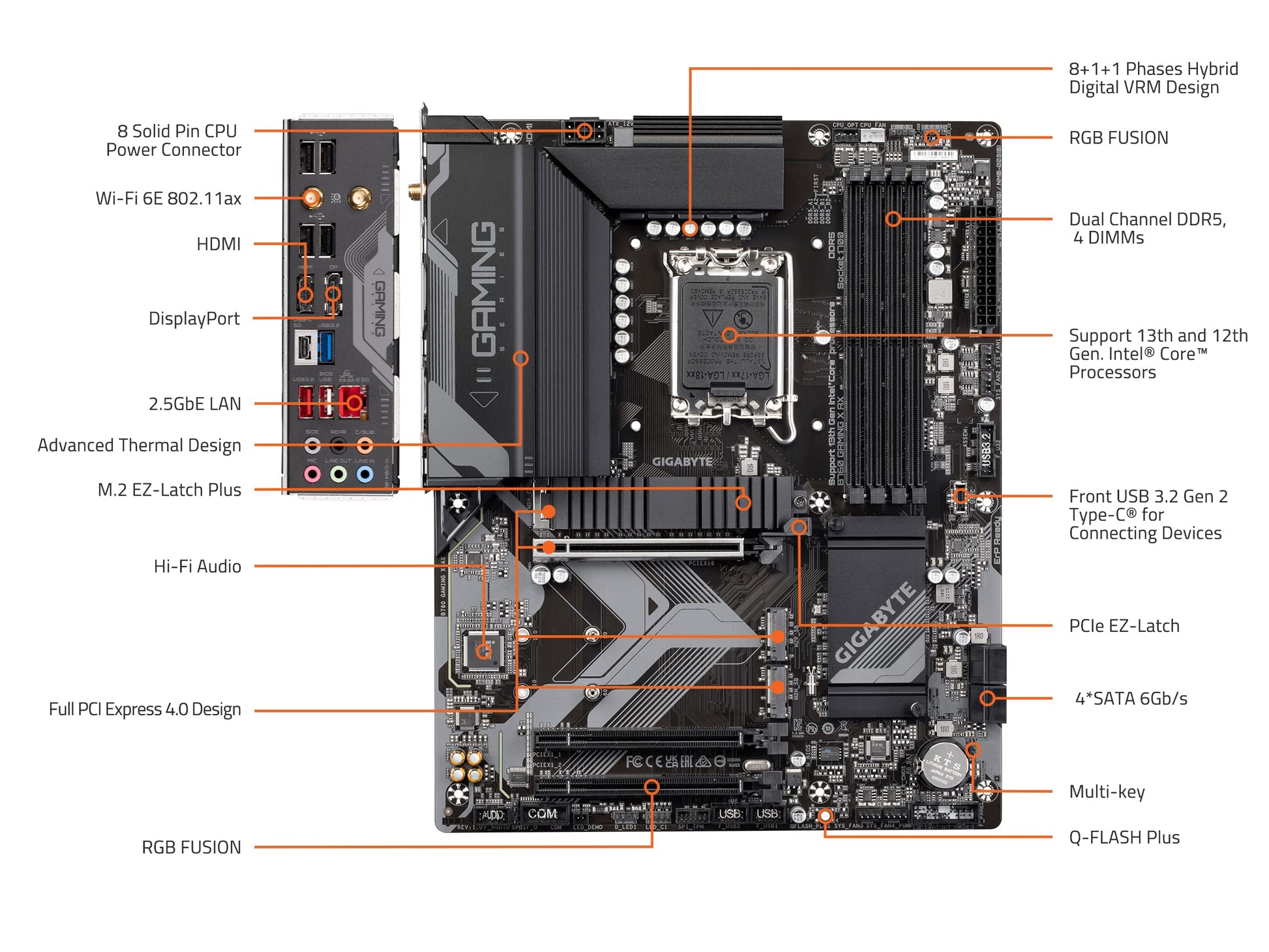

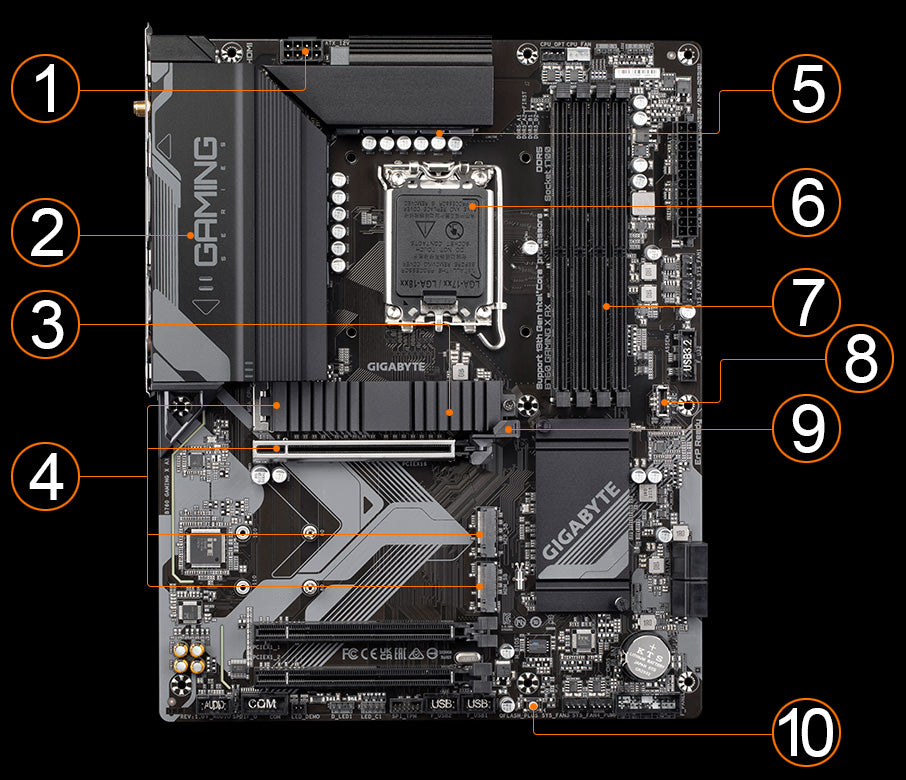

The GIGABYTE B760 GAMING X AX motherboard is designed for gamers and PC enthusiasts seeking next-generation performance with the latest Intel platforms. Supporting both 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket, this ATX form factor board uses the Intel B760 chipset to deliver robust system performance. It offers dual memory technology supporting both DDR5 and DDR4, with ECC and non-ECC compatibility.

This board provides strong expansion support via M.2, PCIe, and SATA interfaces. Enjoy quality integrated sound with Realtek Audio CODEC and seamless device and display connectivity through DisplayPort, HDMI, USB, and RJ-45. Integrated Wi-Fi 6E via AMD RZ608 ensures fast and stable wireless networking. Its 30.5 cm x 24.4 cm dimensions fit standard ATX cases, making it suitable for gaming and performance PC builds. Some technical details such as full expansion slot data are not available.

Specifications

Product Overview
Model B760 GAMING X AX
Product Type Motherboard
Form Factor ATX
Chipset Intel B760
Processor Socket LGA1700
Supported Processors 13th and 12th Generation Intel Core, Pentium Gold, and Celeron
Power Requirements 24-pin ATX main power, 8-pin + 4-pin ATX 12V power connectors
Audio Realtek Audio CODEC
Dimensions (W x D) 30.5 cm x 24.4 cm

Wireless Features
Wireless Controller AMD RZ608 (MT7921K)
Wi-Fi Standard Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth 5.2
Wi-Fi Bands 2.4GHz, 5GHz, 6GHz
Antenna 2T2R external antenna included

Physical & Environmental
Width 30.5 cm
Depth 24.4 cm
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity (Operating) 10% ~ 90% non-condensing

Cloud Management & Licensing
Management Interface UEFI BIOS with Q-Flash, Smart Fan 6, EasyTune, and App Center
Bundled Software GIGABYTE Control Center, Norton Internet Security (OEM Trial)

Interfaces
SATA Ports 4 x SATA III 6Gb/s
M.2 Slots 3 x M.2 (PCIe 4.0 x4 & SATA)
PCI Express x16 Slots 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16)
PCI Express x1 Slots 1 x PCIe 3.0 x1

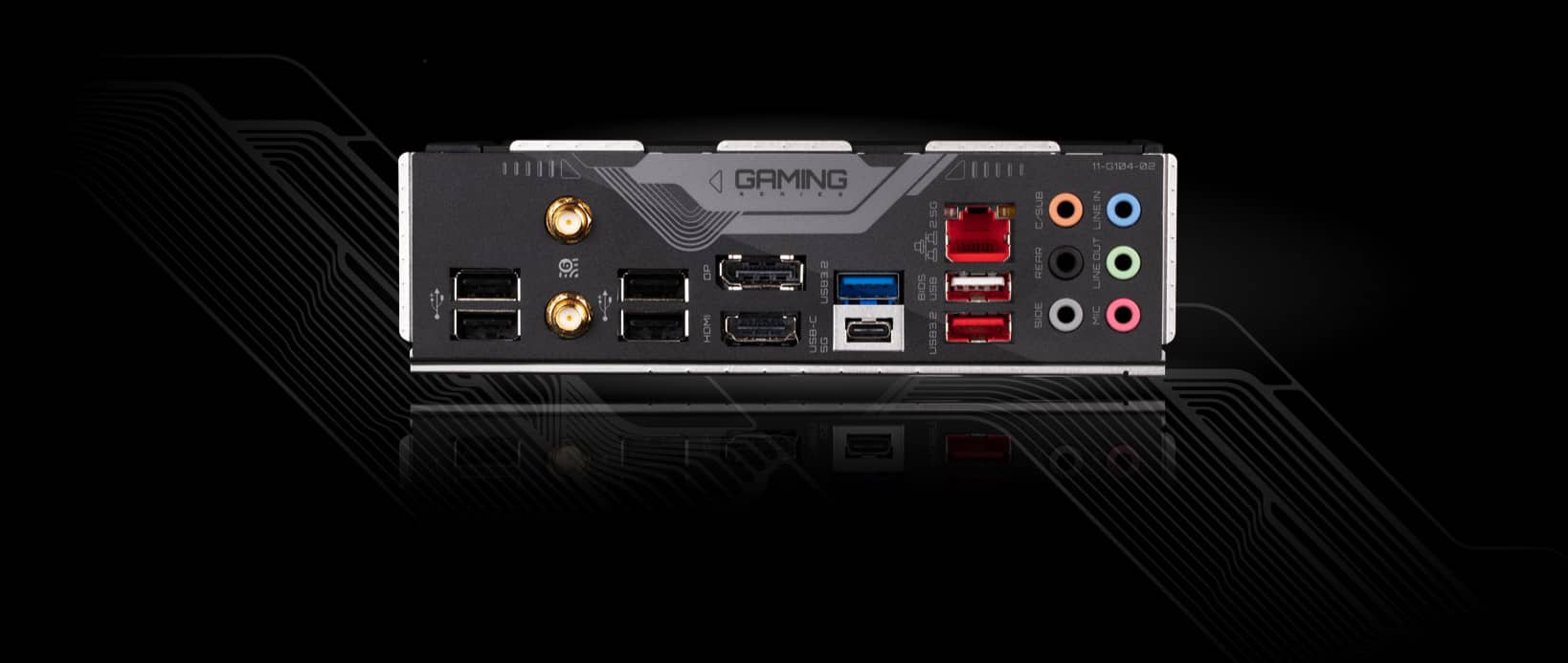

USB Ports (Rear) 1 x USB Type-C 3.2 Gen 2x2, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0
Internal USB Headers 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Display Outputs 1 x HDMI 2.0, 1 x DisplayPort 1.2
LAN Port 1 x RJ-45 (2.5GbE)
Audio Jacks 3 x audio jacks (Line In/Out, Mic)

Memory Support
Memory Technology DDR5 / DDR4 (dual support)
Max Memory Supported 128 GB
Memory Slots 4 x DIMM
ECC Memory Support Yes (ECC/Non-ECC unbuffered DDR5/DDR4)
Memory Channel Dual Channel
Memory Overclocking Support Yes (up to DDR5 7600 MHz (OC))

Compliance & Origin
Country of Origin China
Certifications CE, FCC, BSMI, RoHS

Advanced Security Features
TPM Support TPM 2.0 Header
Secure Boot UEFI Secure Boot
