GIGABYTE B760I AORUS PRO Mini ITX DDR5 Motherboard

VENDOR: GIGABYTE Mfg Part#: B760I AORUS PRO UPC#: 889523037317
1 3

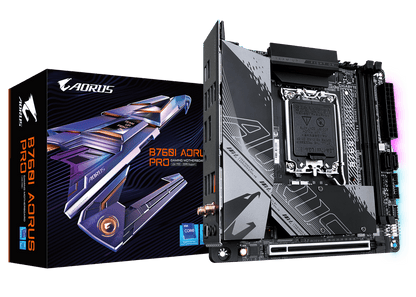

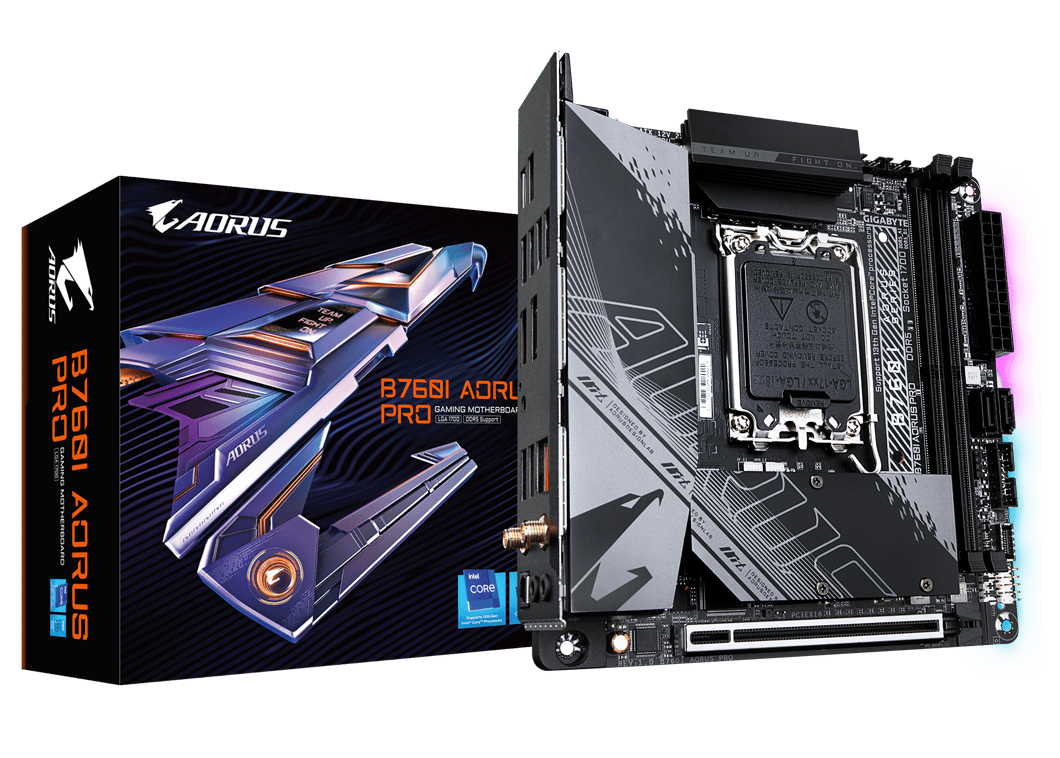

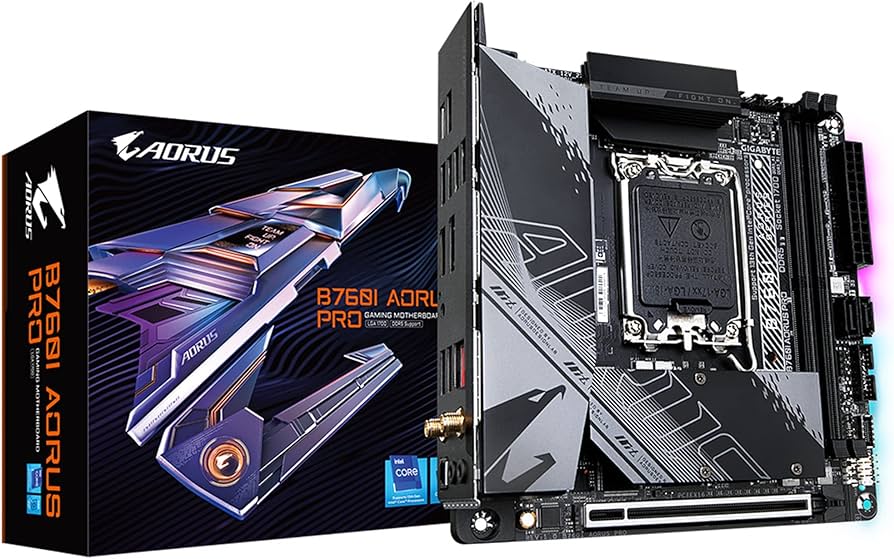

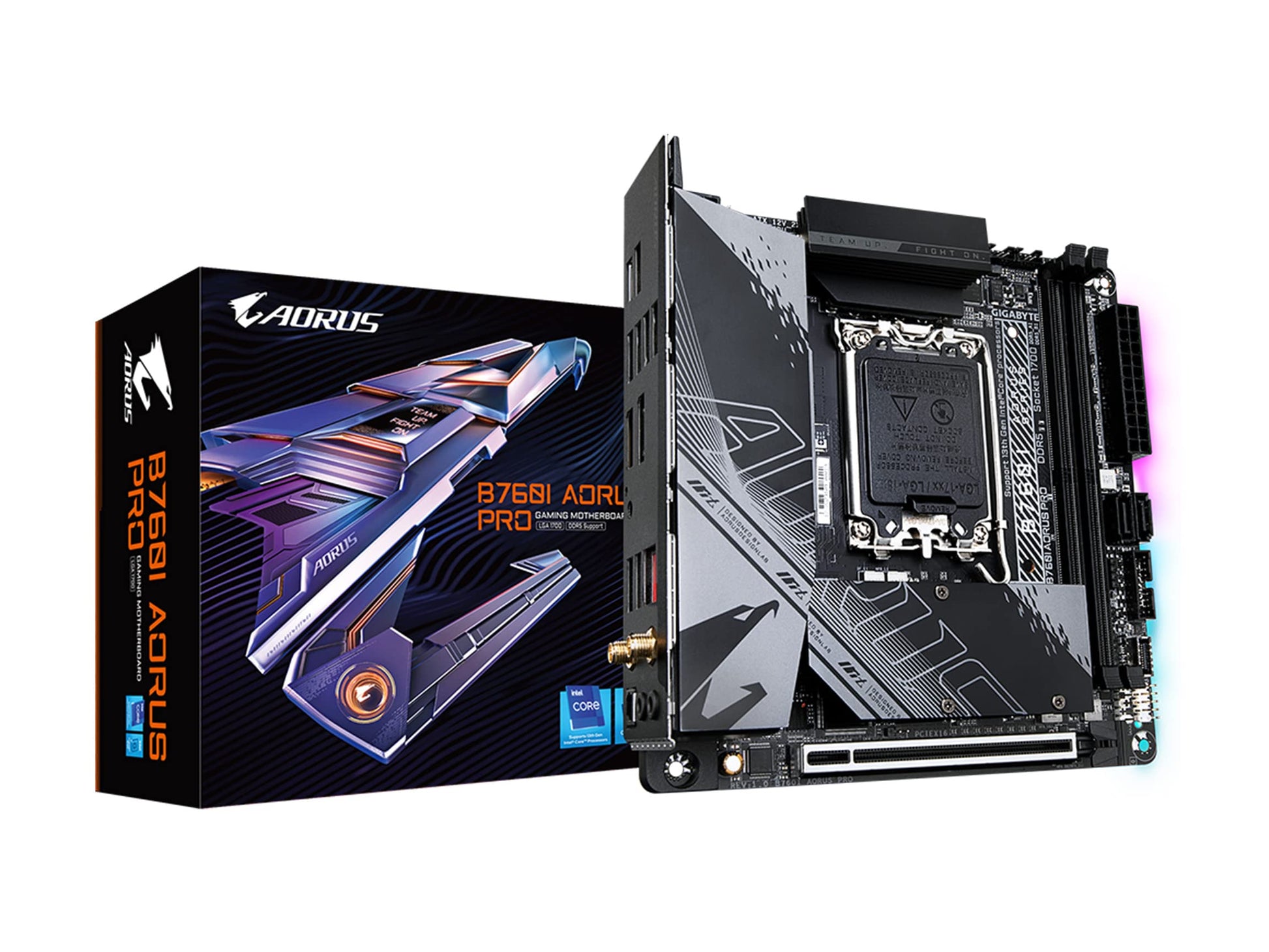

Photo is for illustration purposes only. Actual product may be different.
$214.85
$214.85
Sale Sold out
MSRP: $219.99
Shipping calculated at checkout.
  • Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
  • Intel B760 chipset with LGA1700 socket
  • Supports up to 96GB DDR5 RAM with ECC and non-ECC support
  • 1 x PCIe 4.0 x16 slot for GPU or expansion
  • Video output via HDMI and DisplayPort
  • Connectivity includes USB, RJ-45 Ethernet, S/PDIF audio out

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables powerful compact builds with Mini ITX form factor and full Intel CPU support
  • Ideal for high-performance tasks with DDR5 RAM up to 96GB and PCIe 4.0 expansion
  • Robust I/O including multi-display, Ethernet, and optical audio ensures versatile connectivity

Product Overview

The GIGABYTE B760I AORUS PRO is a high-performance Mini ITX motherboard for Intel 14th, 13th, and 12th Gen processors, powered by the Intel B760 chipset. It supports up to 96GB of DDR5 memory, ensuring exceptional bandwidth for modern computing tasks. Integrated with HDMI and DisplayPort outputs, USB and RJ-45 connectivity, and optical S/PDIF audio, it offers comprehensive support for multimedia and networking. A PCIe 4.0 x16 slot offers extensibility for GPUs or high-speed devices. Measuring just 17cm x 17cm, it's ideal for compact systems demanding high versatility and power.

Specifications

Product Overview
Type Motherboard
Chipset Intel B760
Form Factor Mini ITX
Processor Socket LGA1700
Processor Compatibility 14th, 13th, 12th Generation Intel Core, Pentium Gold, and Celeron processors
Supported Memory Type DDR5
Maximum Memory Supported 96 GB
DIMM Slots 2 x DDR5 DIMM slots
Memory Channels Dual Channel
ECC Support Yes (non-ECC and ECC, un-buffered memory)* ECC support varies by CPU
Power Phase 8+1+1 Digital VRM Design with 60A DrMOS
Power Requirements 24-pin ATX main power connector, 8-pin ATX 12V power connector

Wireless Features
Wi-Fi Standard Wi-Fi 6E (802.11ax)
Bluetooth Version Bluetooth 5.3
Wireless Antenna Ports 2 x SMA antenna connectors
Wi-Fi Chipset Intel Wi-Fi 6E module

Compliance & Origin
Country of Origin China
RoHS Compliance Yes
CE Certification Yes
FCC Certification Yes
C-Tick Compliance Yes

Advanced Security Features
Platform Security Trusted Platform Module (TPM) header
Secure Boot Yes
UEFI Secure Boot Yes

Interfaces
PCIe Slots 1 x PCIe 4.0 x16 slot
SATA Ports 2 x SATA 6Gb/s ports
M.2 Slots 2 x M.2 sockets (1 x PCIe Gen4 x4, 1 x PCIe Gen4 x4/SATA)
USB Ports (Rear) 1 x USB-C 3.2 Gen 2x2, 3 x USB-A 3.2 Gen 2, 2 x USB-A 2.0
USB Headers (Internal) 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
Video Outputs 1 x HDMI 2.0, 1 x DisplayPort 1.2
Audio Outputs 3 x audio jacks, 1 x Optical S/PDIF Out
LAN Port 1 x RJ-45 (2.5GbE)
Audio Codec Realtek ALC4080
Internal Connectors 1 x CPU fan header, 2 x system fan headers, 1 x front panel header, etc.

Physical & Environmental
Width 17 cm
Depth 17 cm
Operating Temperature 0°C to 85°C
Storage Temperature -40°C to 85°C
Relative Humidity (Operating) 10% - 90% (non-condensing)
Relative Humidity (Storage) 5% - 95% (non-condensing)

Cloud Management & Licensing
BIOS Management UEFI AMI BIOS with Q-Flash
Bundled Software GIGABYTE APP Center, EasyTune, System Information Viewer
Firmware Update Support Q-Flash, Q-Flash Plus
