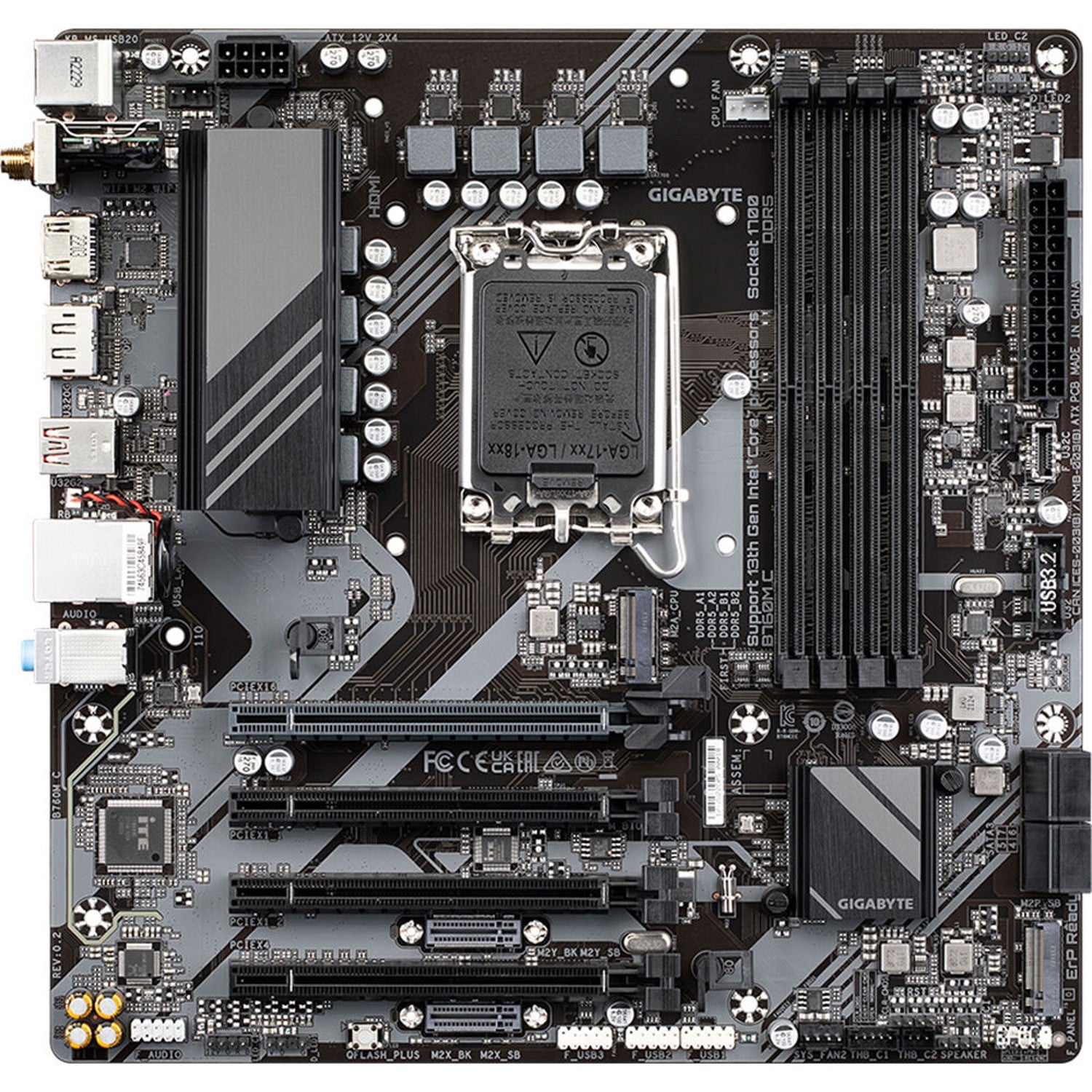

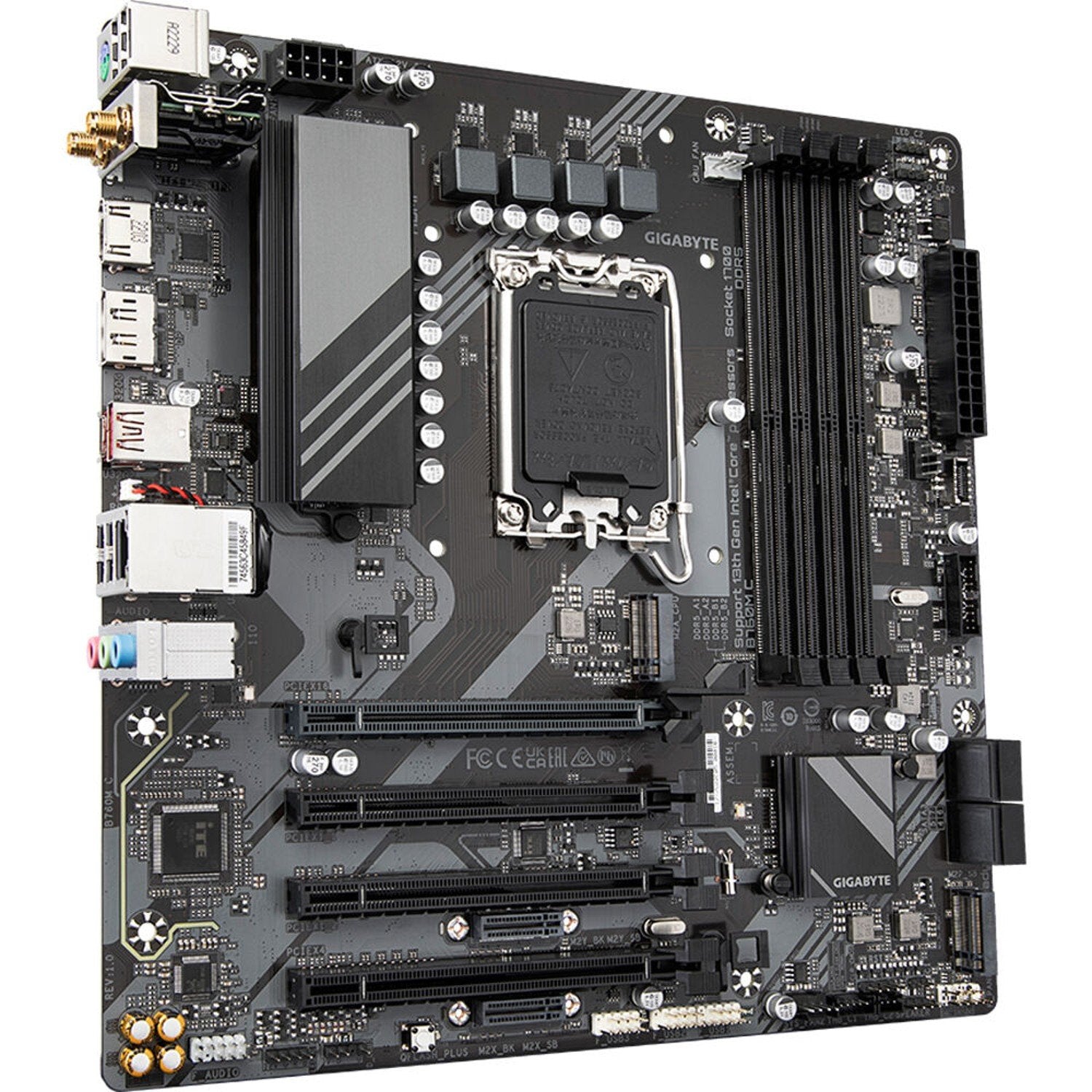

GIGABYTE B760M C V2 ATX Motherboard, LGA1700, DDR5, 192GB Max

VENDOR: GIGABYTE Mfg Part#: B760M C V2 UPC#: 889523044179
1 5
Photo is for illustration purposes only. Actual product may be different.
$139.99
$139.99
Sale Sold out
Shipping calculated at checkout.
  • Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
  • Intel B760 chipset with LGA1700 socket
  • Supports up to 192GB DDR5 memory, ECC and non-ECC compatible
  • Includes M.2 and SATA 6 Gb/s storage interfaces
  • HDMI and DisplayPort video outputs with 4K@60Hz support
  • Integrated Realtek Gigabit LAN and HD Audio with S/PDIF output

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports the latest Intel processor generations for future-ready performance
  • Flexible memory configuration with 192GB DDR5 support and ECC compatibility
  • Modern multimedia and connectivity features including 4K video output and M.2 storage

Product Overview

The GIGABYTE B760M C V2 motherboard is built on the Intel B760 chipset and supports 14th, 13th, and 12th Gen Intel CPUs in the LGA1700 socket. It fits an ATX form factor and offers up to 192GB DDR5 memory support. Connectivity options include HDMI and DisplayPort with 4K resolution support, along with both M.2 and SATA 6 Gb/s for high-speed storage. Networking is handled by a Realtek 1 GbE LAN chip, and audio support includes High Definition Audio and S/PDIF Out. Ideal for performance-driven builds requiring multimedia and networking capabilities.

Specifications

Product Overview
Product Type Motherboard
Form Factor ATX
Chipset Intel B760
Processor Socket LGA1700
Supported CPU Generation 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron
Maximum Supported Memory 192 GB
Memory Technology DDR5
ECC Memory Support Yes (ECC and Non-ECC Un-buffered DDR5 supported, depends on CPU)
Power Requirements 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector
Audio High Definition Audio with S/PDIF Out
Audio Codec Realtek ALC897

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
CE Certified Yes
FCC Certified Yes

Advanced Security Features
BIOS Security AMI UEFI BIOS with Secure Boot support
TPM Support TPM 2.0 header onboard

Interfaces
Display Interfaces 1 x HDMI, 1 x DisplayPort
HDMI Max Resolution 4096x2160 @60 Hz
DisplayPort Max Resolution 4096x2304 @60 Hz
SATA Ports 4 x SATA 6Gb/s
M.2 Slots 2 x M.2 (Socket 3, M Key, PCIe 4.0/3.0 x4 & SATA support)
PCIe x16 Slots 1 x PCIe 4.0 x16
PCIe x1 Slots 2 x PCIe 3.0 x1
USB Ports (Rear) 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0/1.1
USB Ports (Internal Headers) 2 x USB 3.2 Gen 1 (supports 4 ports), 2 x USB 2.0 (supports 4 ports)
LAN Port 1 x RJ-45 (Gigabit Ethernet)
Audio Jacks 3 x 3.5 mm jacks, 1 x Optical S/PDIF Out

Physical & Environmental
Width 24.4 cm
Depth 24.4 cm
Operating Temperature 0°C to 85°C (commercial components)
Storage Temperature -40°C to 85°C
Operating Humidity 10% to 90% non-condensing

Cloud Management & Licensing
Remote Management Tools
