| Model | Z890M AORUS ELITE WIFI7 ICE |
| Product Type | Motherboard |
| Form Factor | Micro ATX |
| Chipset | Intel Z890 |
| Socket Type | FCLGA1851 |
| Supported Processor Series | Intel Core Ultra (Series 2) |
| Max Supported CPU Quantity | 1 |
| Supported Memory Technology | DDR5 |
| Max Supported Memory Capacity | 256 GB |
| Memory ECC Support | ECC / Non-ECC |
| Number of Memory Slots | 4 x DIMM |
| XMP Support | Yes |
| AI Perfdrive | Provides optimal and customized BIOS preset profile for users |
| Power Connector | 24-pin ATX main power + 8-pin ATX 12V power |
| Premium Memory Compatibility | Supports DDR5 XMP Memory Modules |

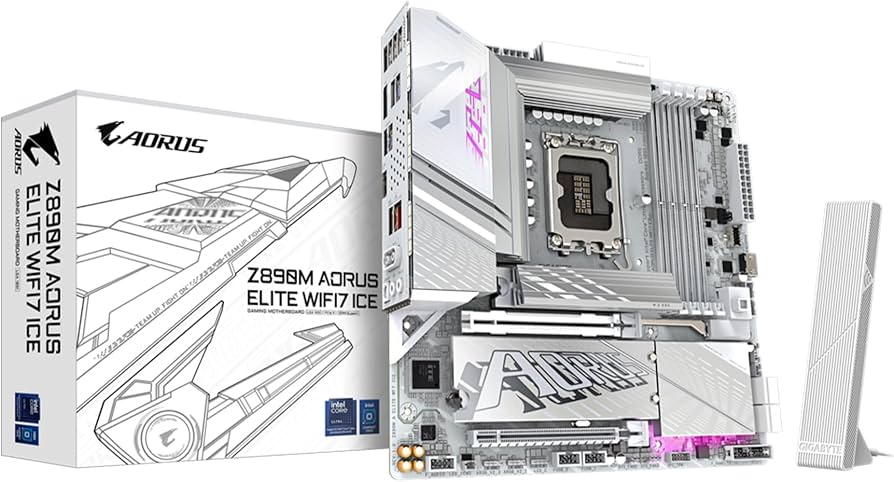

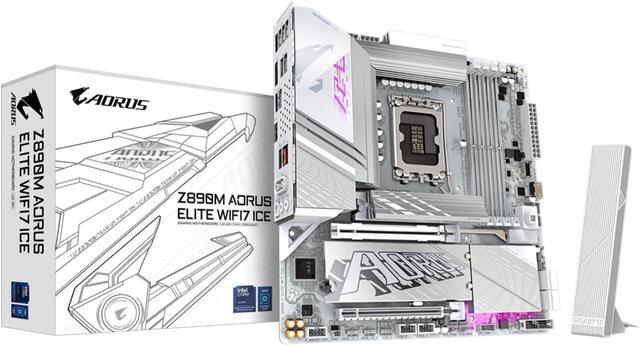

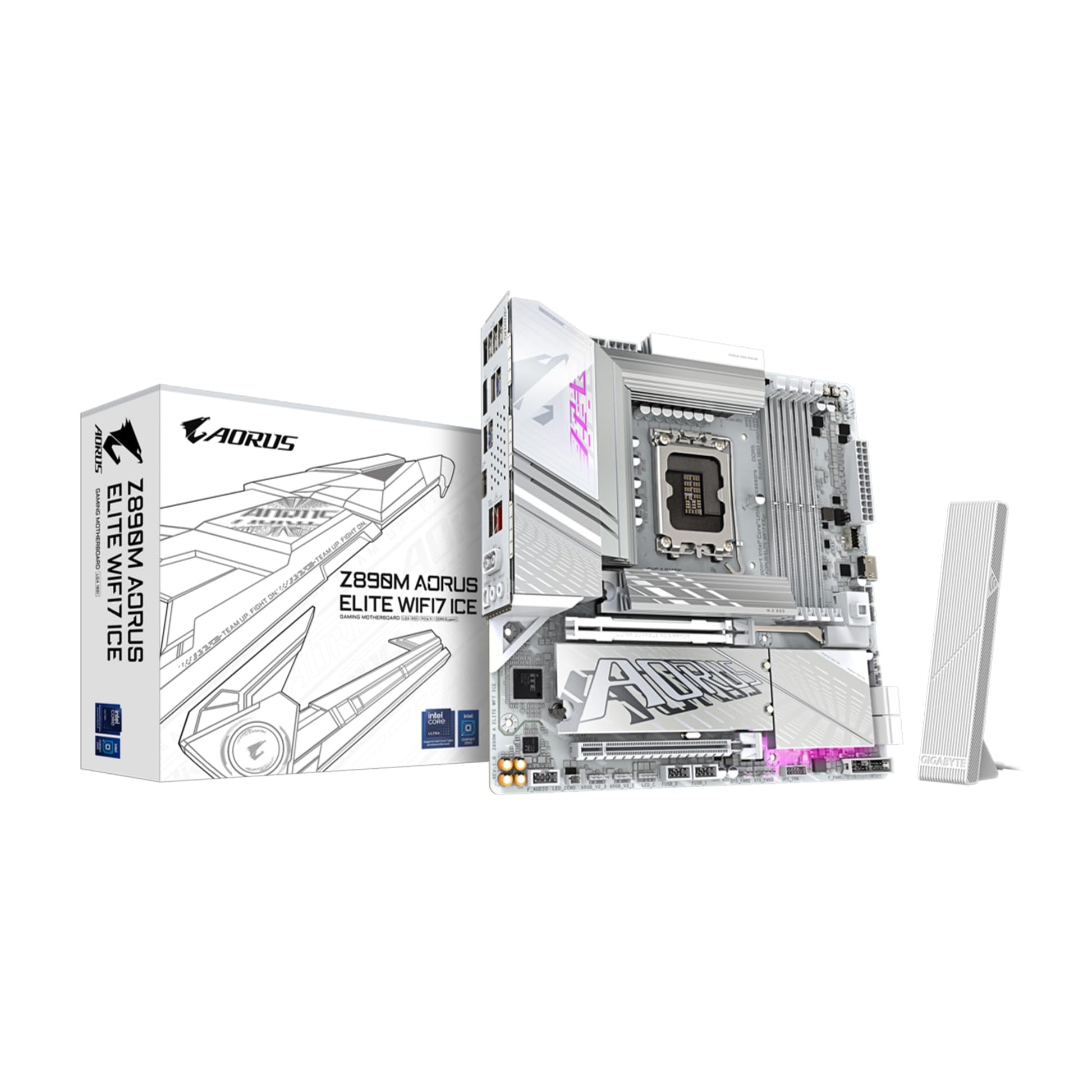

GIGABYTE Z890M AORUS ELITE WIFI7 ICE Ultra Core Micro ATX Motherboard
Photo is for illustration purposes only. Actual product may be different.
Regular price
$226.66
Regular price
Sale price
$226.66
Unit price
per
MSRP: $239.99
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports Intel Core Ultra Processors via LGA1851 socket
- Intel Z890 chipset with Micro ATX form factor
- Up to 256 GB DDR5 memory with ECC/non-ECC support
- Realtek 2.5GbE LAN and integrated Wi-Fi 7 for high-speed networking
- Expansion via PCIe x16 slot and USB4 Type-C with DisplayPort
- Advanced BIOS optimizations with AI Perfdrive and fast Wi-Fi antenna setup with WIFI EZ-Plug
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Supports the latest Intel Core Ultra processors, ensuring top-tier performance and future compatibility
- Dual high-speed networking with 2.5GbE LAN and Wi-Fi 7 for seamless wired/wireless connectivity
- Compact Micro ATX design with full-feature capabilities including DDR5, DisplayPort, and PCIe x16 slot for high-end graphics
Product Overview
Built for next-gen desktop performance, the GIGABYTE Z890M AORUS ELITE WIFI7 ICE motherboard provides a compact yet high-powered platform for Intel Core Ultra processors (Series 2), utilizing the LGA1851 socket and Intel Z890 chipset. With support for up to 256 GB of DDR5 memory and ECC/non-ECC configurations, it delivers bandwidth and stability for intensive multitasking, content creation, and gaming environments.
The board integrates PCI-Express expansion, including a dedicated PCIe x16 slot for high-end graphics cards. Onboard connectivity includes a Realtek 2.5GbE LAN chip alongside integrated Wi-Fi 7, ensuring ultrafast and reliable networking. For peripheral and display output, users benefit from DisplayPort, a USB Type-C with USB4, and 3.5mm audio outputs. Features like AI Perfdrive and WIFI EZ-Plug simplify BIOS optimizations and antenna setup respectively, enhancing both customization and user experience.
Premium memory compatibility with XMP DDR5 modules and Micro ATX dimensions (24.4 cm x 24.4 cm) make this board ideal for high-performance compact builds. Whether upgrading a workstation or building from the ground up, this board offers modern features while maximizing efficiency and futureproofing.
Specifications
Product Overview
Wireless Features
| Wireless Standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.3 |
| Wi-Fi Antenna Connectivity | WIFI EZ-Plug design for easy installation |
Compliance & Origin
| Country of Origin | China |
| RoHS Compliance | Yes |
| CE Certified | Yes |
| FCC Approval | Yes |
| WEEE Compliance | Yes |
Advanced Security Features
| Platform Firmware Protection | Dual BIOS |
| TPM Header | Yes (Supports discrete TPM module) |

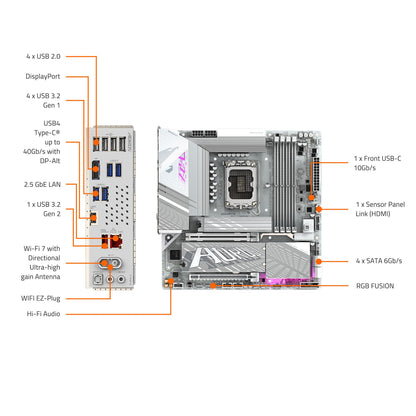

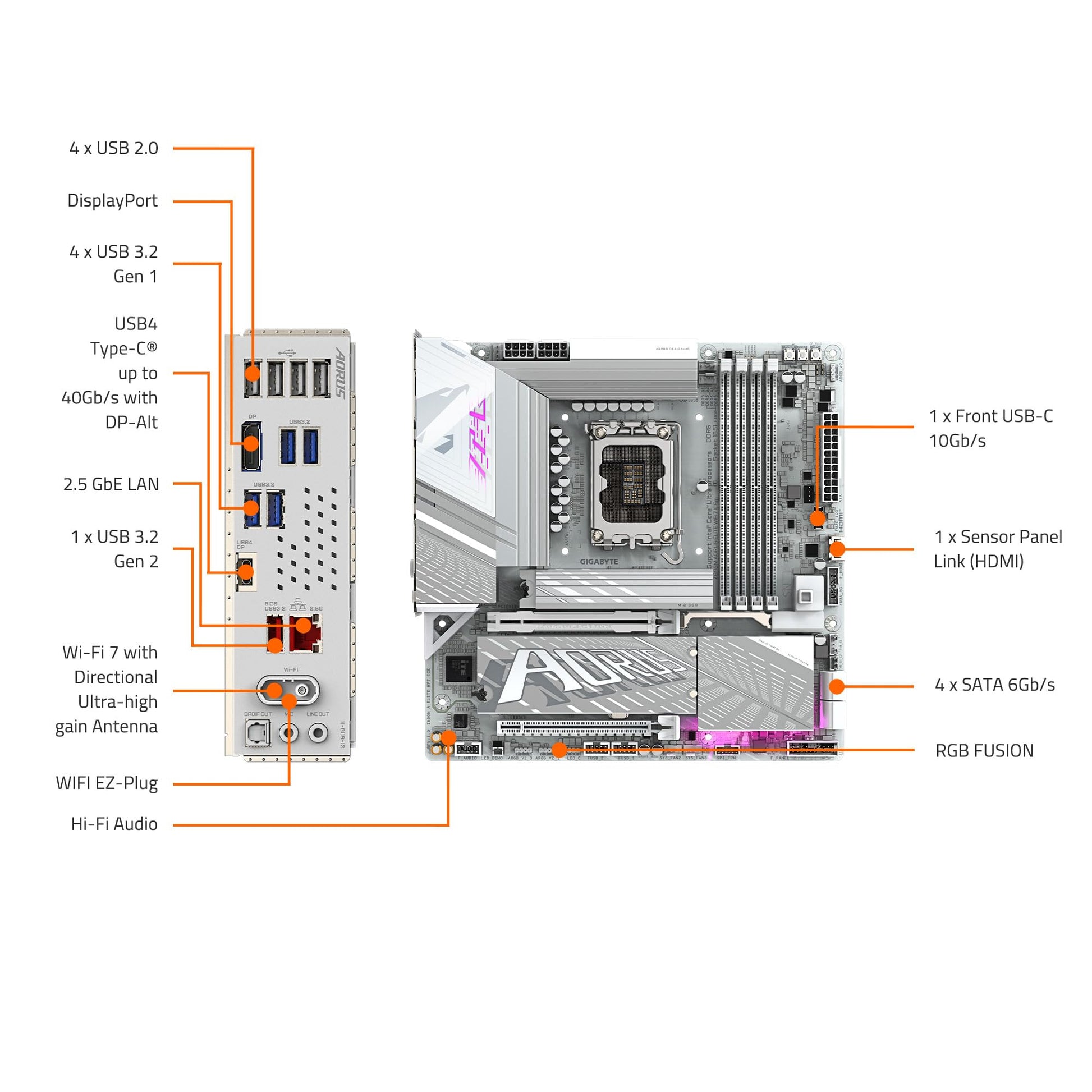

Interfaces
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 |
| Storage Interfaces | 4 x SATA 6Gb/s, 3 x M.2 (PCIe 4.0 x4) |
| USB Ports (Rear) | 1 x USB4 Type-C, 1 x USB 3.2 Gen 2x2 Type-C, 4 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 |
| USB Internal Headers | 2 x USB 2.0 headers, 1 x USB 3.2 Gen 1 header |
| Networking Ports | 1 x RJ-45 (2.5GbE) |
| Display Output | 1 x DisplayPort 1.4 |
| Audio Jacks | 3 x 3.5mm Audio Jack (Up to 7.1-Channel HD Audio) |
| Thunderbolt Support | Supports USB4 through Type-C |
Physical & Environmental
| Dimensions (W x D) | 24.4 cm x 24.4 cm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
Cloud Management & Licensing
| BIOS Management | GIGABYTE UEFI BIOS with Q-Flash |
| Software Utilities | GIGABYTE Control Center, EasyTune, RGB Fusion |
