Products Accessories and Cables HighPoint 0.6M SFF-8643 to ...

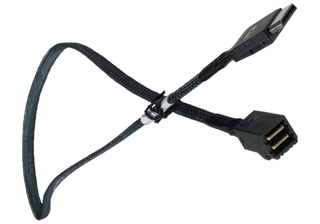

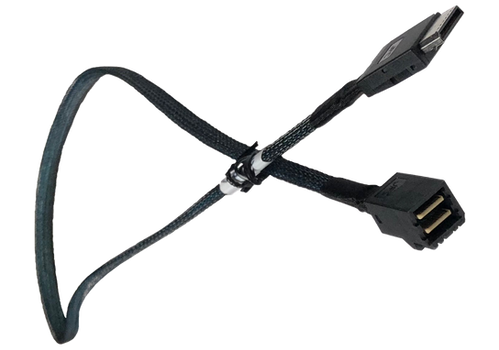

HighPoint 0.6M SFF-8643 to Oculink NVMe Cable OLX4-8643-061

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: OLX4-8643-061 UPC#: 643653861118
1 5
Photo is for illustration purposes only. Actual product may be different.
$19.99
$19.99
Sale Sold out
Shipping calculated at checkout.
  • SFF-8643 to Oculink backplane interface for NVMe applications
  • 0.6-meter cable length enables compact and efficient cable management
  • Designed for high-speed data transfer in storage environments
  • Manufactured in China
  • Not compliant with TAA specifications
  • Categorized for SCSI internal and data transfer cable solutions

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for NVMe applications, supporting fast and reliable data transfer between storage components.
  • Compact 0.6M length helps maintain clean cable management and improves airflow in densely packed systems.
  • Designed by HighPoint Technologies, a trusted name in performance storage connectivity.

Product Overview

The HighPoint OLX4-8643-061 NVMe cable connects SFF-8643 interfaces to Oculink backplanes over a compact 0.6-meter length, designed to enable high-speed NVMe storage communication in enterprise and data center environments. This China-manufactured cable is not TAA-compliant, making it suitable for private and commercial installations. Integrators benefit from simple deployment and reliable signal transmission, crucial for applications requiring low-latency and high-throughput data flow.

Specifications

Product Overview
Product Type NVMe Storage Interface Cable
Cable Type OCuLink to SFF-8643 NVMe Cable
Form Factor Internal Cable
Length 0.6 M
Weight
Power Requirements Passive cable, no external power required

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliance Yes
REACH Compliance Yes
Certifications UL Certified Components
Halogen-Free No

Advanced Security Features

Interfaces
Interface Type SFF-8643 to OCuLink
Left Connector Type SFF-8643 (Mini-SAS HD)
Right Connector Type OCuLink
Connector Gender Male to Male
Cable Interface Use PCIe/NVMe storage signal transmission
Transmission Protocol PCI Express (PCIe) Gen3/Gen4 NVMe
No. of Channels Supported 4x PCIe lanes (x4 link)
Data Transfer Rate Up to 32Gbps (PCIe Gen3 x4)

Physical & Environmental
Cable Length 0.6 meters (2 feet)
Color Black
Jacket Material PVC
Shielding Yes, EMI shielding
Operating Temperature Range 0°C to 70°C
Storage Temperature Range -20°C to 85°C
Humidity Range (Operating) 10% to 90% (non-condensing)
Humidity Range (Storage) 5% to 95% (non-condensing)
Durability High-flex rated connector strain relief
RoHS Compliant Yes

Cloud Management & Licensing
