HighPoint 1M SFF-8643 to 4x SFF-8482 (SAS) Cable with Power

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: 8643-4SAS-1M UPC#: 643653864317
1 5
Photo is for illustration purposes only. Actual product may be different.
$14.99
$14.99
Sale Sold out
Shipping calculated at checkout.
  • 1-meter length optimized for internal server and storage configurations

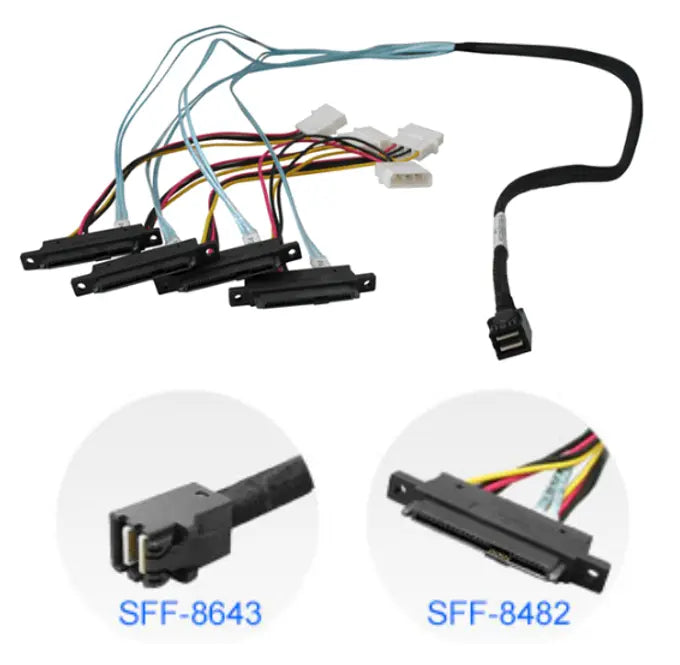

  • SFF-8643 (male) to 4x SFF-8482 (male) connectors with power
  • Supports high-speed SAS data transfer rates up to 12Gb/s per port
  • Designed for use in enterprise storage and RAID arrays
  • Manufactured in China; not TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for high-speed SAS deployments with 12Gb/s per-port transfers for superior performance
  • Compact 1-meter layout makes it ideal for integration in dense server or storage enclosures
  • Compatible connector configuration helps simplify HBA-to-drive connectivity in RAID and JBOD applications

Product Overview

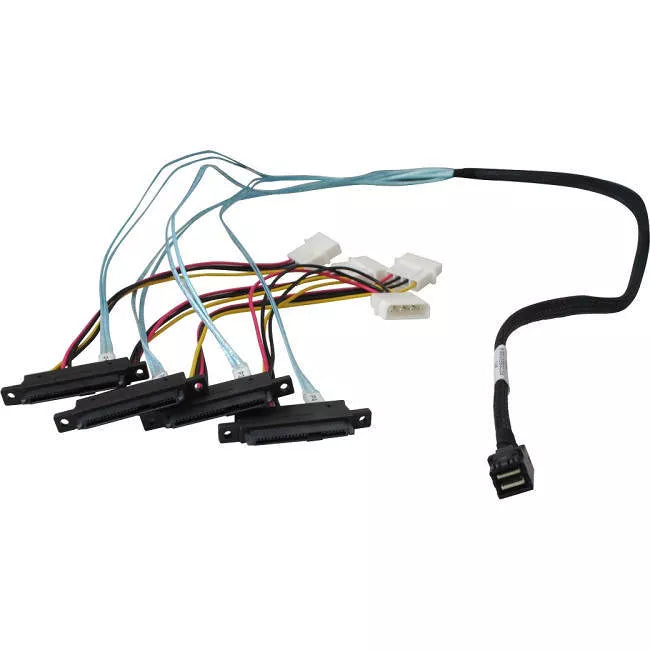

The HighPoint SFF-8643-4SAS-1M cable is a 1-meter long internal storage solution featuring a single SFF-8643 male connector and four SFF-8482 male connectors with power. It supports data transfer rates up to 12Gb/s per port, making it suitable for enterprise servers and multi-drive RAID setups. While not TAA compliant, it provides high-speed connectivity and is manufactured to industrial-grade standards. This cable is ideal for connecting HBAs or controllers to SAS drives in high-performance systems.

Specifications

Product Overview
Product Type Internal SAS Cable
Cable Type Storage Cable
Form Factor Internal
Length 1 m
Connector 1 Type SFF-8643
Connector 1 Gender Male
Connector 2 Type 4 x SFF-8482 with power
Connector 2 Gender Male
Power Support Yes, power integrated in SFF-8482 connectors
Color Black
Weight
Power Requirements

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliant No
UL Listed
CE Certification
Reach Compliant Yes
RoHS Compliant Yes

Advanced Security Features

Interfaces
Interface Standard SAS 3.0
Data Transfer Rate 12 Gb/s per port
Number of Ports 4 (SFF-8482 outputs)
Connector Standard Mini-SAS HD (SFF-8643) to SAS (SFF-8482)
Use Case Connect controller or HBA to SAS drives

Physical & Environmental
Cable Jacket Material PVC
Conductor Material Copper
Shielding Yes
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 85°C
Operating Humidity 10% to 85% RH (non-condensing)
Storage Humidity 5% to 90% RH (non-condensing)
Bend Radius 30 mm (minimum recommended)
RoHS Compliant Yes
