HighPoint R1104 PCIe 3.0 x16 4-Port M.2 NVMe HBA Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: R1104 UPC#: 643653110414
1 5
Photo is for illustration purposes only. Actual product may be different.
$199.00
$199.00
Sale Sold out
Shipping calculated at checkout.
  • 4x M.2 NVMe ports for scalable high-performance storage
  • PCI Express 3.0 x16 interface delivers high-bandwidth connectivity
  • Data transfer rate up to 8 Gbps
  • OS RAID compatible for flexible redundancy solutions
  • Supports Windows, Linux, macOS, and FreeBSD operating systems
  • No PCIe bifurcation required for installation

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports four M.2 NVMe drives over PCIe 3.0 x16, maximizing storage throughput for high-demand applications.
  • Compatible with multiple operating systems, providing versatile deployment options across different environments.
  • No PCIe bifurcation required, simplifying integration into systems without specialized motherboard support.

Product Overview

The HighPoint R1104 PCIe 3.0 x16 Host Bus Adapter supports four M.2 NVMe ports, making it ideal for high-performance storage needs that demand rapid data access and efficient bandwidth. With a PCIe 3.0 x16 interface, the HBA supports data transfers up to 8 Gbps and works across multiple OS platforms including Windows, Linux, macOS, and FreeBSD. This controller is OS RAID-ready, providing redundancy without proprietary RAID hardware, and does not require motherboard PCIe bifurcation, ensuring simpler integration into a wide range of systems.

Specifications

Product Overview
Product Type Storage Controller
Form Factor Low-Profile PCIe Card
Supported Drive Type M.2 NVMe SSD
Number of M.2 Slots 4
RAID Support OS-level RAID (No Hardware RAID)
Supported Operating Systems Windows, Linux, macOS, FreeBSD
Controller Interface PCIe Gen3 x16
Bandwidth 128 Gbps (PCIe 3.0 x16)
Power Requirements Consumes up to 27W

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliant No
RoHS Compliant Yes
CE Certification Yes
FCC Certification Yes
REACH Compliance Yes
UKCA Certification Yes

Advanced Security Features
Data Protection Features Dependent on Host OS RAID capabilities
Encryption Support Drive-level encryption support (if supported by installed SSDs)
Boot Support Bootable Device Support via UEFI (select systems)

Interfaces
Host Interface PCI Express 3.0 x16
Internal Connectors 4x M.2 M-Key (22110/2280/2260/2242)
Data Transfer Rate Up to 8 Gbps per lane
Interface Protocol NVMe 1.3
Maximum Interface Bandwidth 128 GT/s (PCIe 3.0 x16)

Physical & Environmental
Card Dimensions 15.3 x 11.1 x 1.6 cm
Card Height Low-Profile (with full-height and low-profile brackets included)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5% to 90% non-condensing

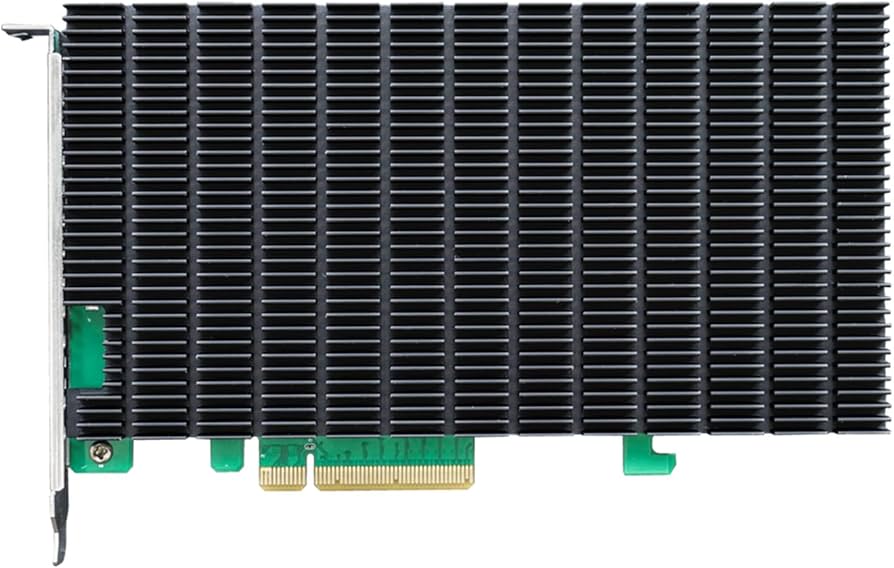

Cooling Passive heat sink with airflow required by chassis fan

Cloud Management & Licensing
Management Interface WebGUI and CLI via OS Utilities
Bundled Software HighPoint NVMe Manager
Licensing Requirements None (No Proprietary RAID Licensing)
Cloud Monitoring No native cloud integration
