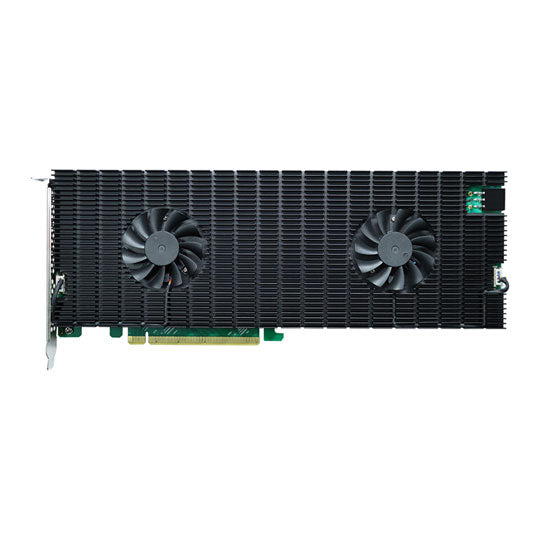

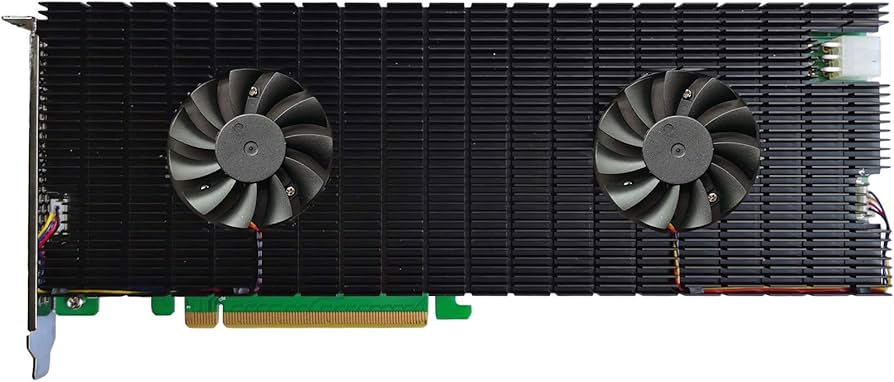

HighPoint R1108 8-Port M.2 NVMe PCIe 3.0 x16 HBA Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: R1108 UPC#: 643653110810
1 5
Photo is for illustration purposes only. Actual product may be different.
$399.00
$399.00
Sale Sold out
Shipping calculated at checkout.
  • 8x M.2 NVMe device support for high-density storage
  • PCI Express 3.0 x16 interface ensures maximum throughput
  • No PCIe bifurcation required for compatibility
  • OS RAID support across Windows, macOS, Linux, and FreeBSD
  • Supports up to eight storage devices simultaneously
  • Designed for advanced storage controller applications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Empowers users to build high-performance storage arrays with 8x NVMe drives on a single PCIe card.
  • Broad compatibility with major operating systems ensures deployment flexibility across platforms.
  • Eliminates need for bifurcation, simplifying setup and reducing hardware configuration time.

Product Overview

The HighPoint R1108 is a PCIe 3.0 x16 host bus adapter engineered for high-speed, multi-drive NVMe storage configurations. With eight dedicated M.2 ports, it supports a range of applications from enterprise-level storage to high-end workstations. This controller operates without requiring PCIe bifurcation, simplifying setup across standard platforms. Users benefit from OS-level RAID options and cross-platform support including Windows, Linux, macOS, and FreeBSD. Designed for demanding workloads like content creation, scientific computing, or virtualization, the R1108 brings scalability and performance into a single, efficient package.

Specifications

Product Overview
Product Type Storage Controller
Form Factor Full Height, Half Length (FHHL)
Bus Type PCIe 3.0 x16
Supported Drive Type M.2 NVMe SSDs
Number of M.2 Slots 8
Weight 0.75 lbs (approx)
Power Requirements PCIe slot powered; optional auxiliary power via Mini-Fit connector
Operating System Compatibility Windows, macOS, Linux, FreeBSD
RAID Support OS-level RAID only (0, 1, 5, 10, etc. depending on OS)

Wireless Features

Compliance & Origin
Country of Origin China
TAA Compliance No
RoHS Compliance Yes
FCC Certification Yes
CE Certification Yes
UL Certification Yes

Advanced Security Features
Encryption Support Dependent on installed NVMe SSDs
Secure Boot Support Yes, with supported OS and platform
Hardware-based Security None (relies on NVMe drives or OS)

Interfaces
Interface Type PCIe 3.0 x16
PCIe Lane Requirement 16 lanes
Dedicated Data Channels x4 PCIe Gen3 per M.2 port
Total Bandwidth 128Gbps (16GB/s)
Host Interface Bandwidth 32GB/s (theoretical max)
Controller Port Configuration x8 M.2 NVMe 2280/22110 Ports

Physical & Environmental
Dimensions 6.6 in x 4.4 in x 0.75 in (167.6 mm x 111.7 mm x 19 mm)
Form Factor Classification Full-height, half-length
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 70°C
Relative Humidity 10% to 90% (non-condensing)
Cooling Requirements Requires chassis airflow over controller
Heatsink Included Yes, passive heatsink

Cloud Management & Licensing
Driver Support Available via manufacturer website
Management Interface OS-based management via device manager or disk utility
Cloud Management Not Applicable
License Included Not required
