| Product Type | Storage Controller |
| Form Factor | Full-height, half-length (FHHL) |
| Supported Drive Interface | NVMe (M.2 2280/22110) |
| Bus Type | PCI Express 4.0 |
| Host Interface | PCIe 4.0 x16 |
| Drive Bays Supported | 4 x M.2 NVMe |
| OS Support | Windows, macOS, Linux, FreeBSD |
| RAID Support | OS-level RAID |
| Bifurcation Requirement | No bifurcation required |
| Internal Cache | No onboard cache (relies on SSD cache) |
| Weight | 0.4 lbs (approx) |
| Power Requirements | Powered via PCIe slot |

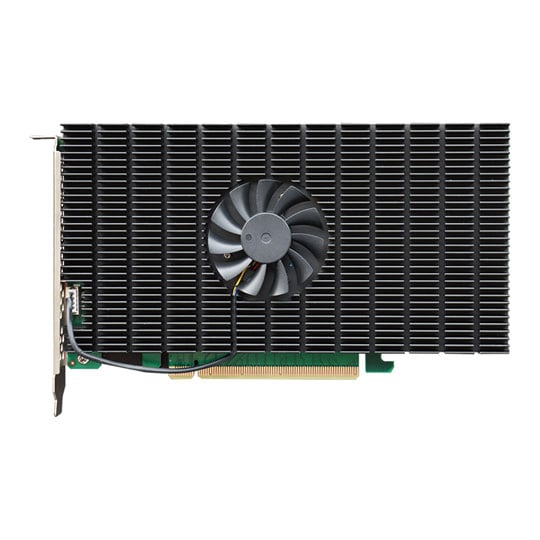

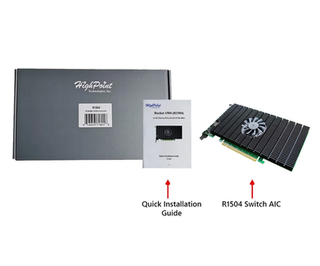

HighPoint R1504 PCIe 4.0 x16 M.2 NVMe HBA Controller
Photo is for illustration purposes only. Actual product may be different.
Regular price
$639.00
Regular price
Sale price
$639.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- - PCIe 4.0 x16 interface for high-bandwidth connectivity
- - Supports up to 4 M.2 NVMe drives
- - OS RAID Ready for flexible storage management
- - Cross-platform support: Windows, Linux, macOS, FreeBSD
- - Does not require PCIe bifurcation
- - Designed for advanced storage applications
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- - Enables high-speed NVMe storage using PCIe 4.0 x16 bandwidth, ideal for demanding workloads
- - Streamlined deployment with no bifurcation required, simplifying compatibility with a wide range of systems
- - Broad OS support increases deployment flexibility for enterprise, creative, and research environments
Product Overview
The HighPoint R1504 is a high-speed Host Bus Adapter designed for professional storage applications. It uses a PCIe 4.0 x16 interface to connect with four M.2 NVMe drives, offering high throughput and low latency. The controller supports Windows, Linux, macOS, and FreeBSD operating systems and is OS RAID ready. With no bifurcation required, it allows ease of installation across a range of motherboards. This product is ideal for demanding data workflows such as content creation, scientific analysis, and high-speed backup systems.
Specifications
Product Overview
Physical & Environmental
| Dimensions | 6.6 x 2.7 x 0.72 in (167 x 69 x 18.3 mm) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 10% to 90% (non-condensing) |
| Cooling | Passive heatsink |
| PCB Color | Black with aluminum heatsink |
Cloud Management & Licensing
| Software Utility | HighPoint WebGUI Management Suite (CLI/WEB based) |
| Licensing Requirements | No software licensing required |
| Firmware Features | NVMe drive health monitoring, thermal sensor support |
| Hot-Plug Support | Supported on compatible platforms |
Interfaces
| Interface Type | PCIe 4.0 x16 |
| Number of M.2 Ports | 4 |
| Supported NVMe Protocol | NVMe 1.3 / 1.4 |
| Max Bandwidth per Port | PCIe Gen4 x4 (up to 8 GB/s per port) |
| Total Bandwidth | Up to 28 GB/s aggregate transfer rate |
| Connector Type | M-Key M.2 |
Compliance & Origin
| Country of Origin | CHINA |
| TAA Compliant | No |
| Certifications | FCC, CE, RoHS |
| REACH Compliance | Yes |
| Environmental Standards | RoHS Compliant |
Advanced Security Features
| Security Support | Supports drives with Self-Encrypting Drive (SED) capabilities |
| Boot Support | Bootable on supported operating systems |
