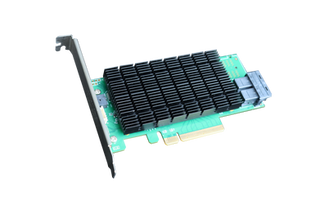

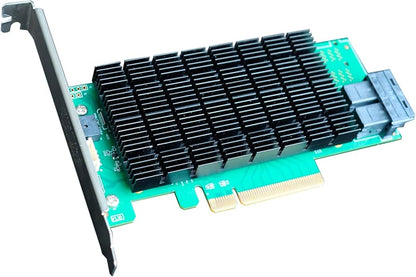

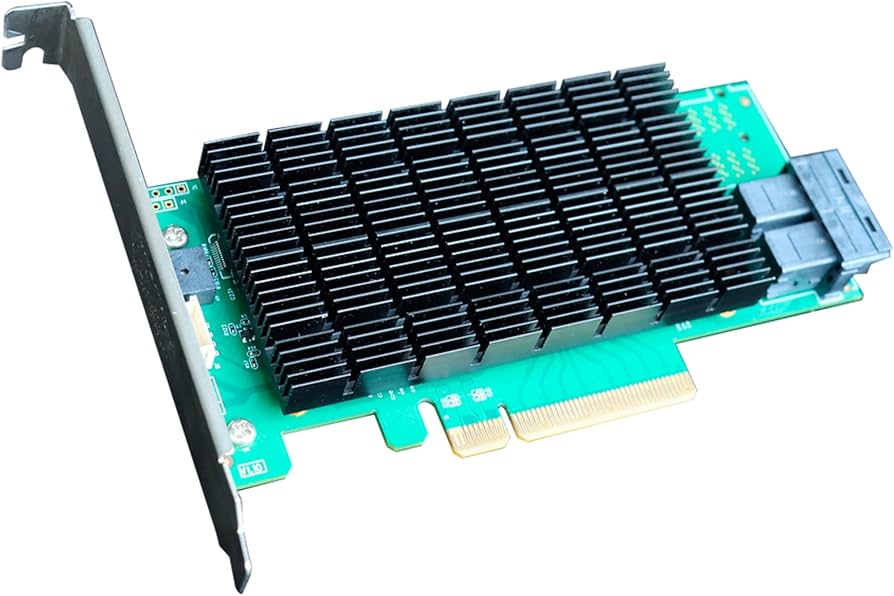

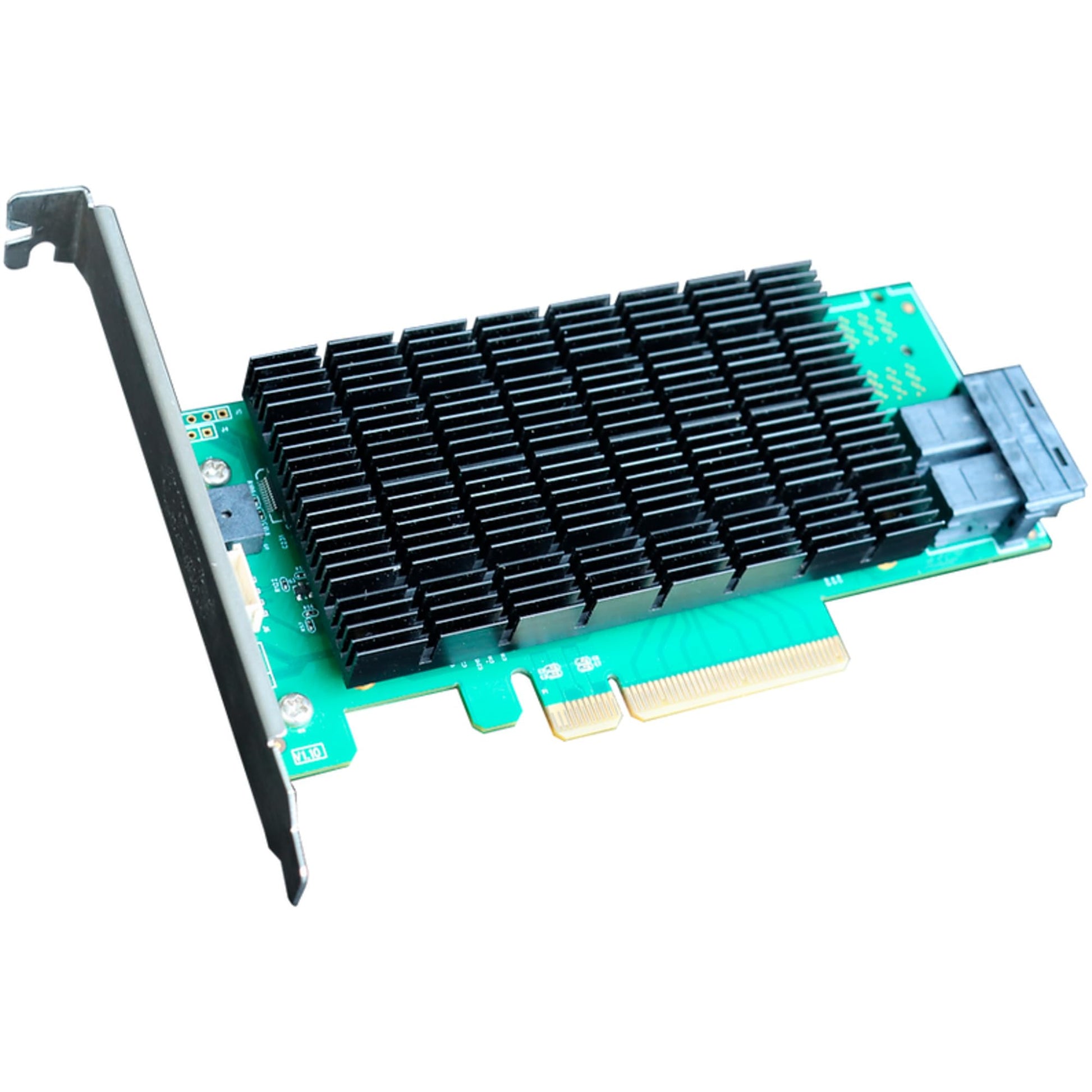

HighPoint R710L PCIe 3.0 x8 8-Channel 12G SAS/SATA HBA

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: R710L UPC#: 643653710034
1 5
Photo is for illustration purposes only. Actual product may be different.
$99.00
$99.00
Sale Sold out
Shipping calculated at checkout.
  • Low-profile PCIe 3.0 x8 interface for compact builds
  • Supports 8-channel 12G SAS/SATA connectivity via 2x SFF-8643 ports
  • Compatible with Windows and Linux operating systems
  • Supports JBOD, RAID 0, 1, and 10 configurations
  • Data transfer rate of up to 12 Gbps per channel
  • 2-year manufacturer-provided service and support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized dual SFF-8643 12G ports enable high-throughput SAS/SATA storage integration
  • RAID and JBOD support offers flexible configuration for performance or redundancy needs
  • Certified Windows and Linux compatibility ensures wide deployment flexibility

Product Overview

The HighPoint R710L is a low-profile PCIe 3.0 x8 host bus adapter designed for high-speed 12G SAS/SATA connectivity. Equipped with 8 dedicated channels and dual SFF-8643 ports, it supports RAID 0, 1, 10 and JBOD modes for flexible storage configurations. Compatible with Windows and Linux, and backed by a 2-year support policy, this adapter meets the performance demands of enterprise and high-throughput environments.

Specifications

Product Overview
Product Type Storage Controllers
Form Factor Low-Profile
Weight 0.25 lbs
Power Requirements 11.39W (Typical)
RAID Level Support JBOD, RAID 0, 1, 10
Supported Operating Systems Windows, Linux
Supported Devices 12G/6G SAS, SATA 3.0/2.0 SSDs and HDDs
Max Drives Supported 8

Physical & Environmental
Width 5.51 Inch
Depth 0.67 Inch
Height 2.48 Inch
Operating Temperature 5°C to 55°C (41°F to 131°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Relative Humidity 5% to 60% (non-condensing)

Cloud Management & Licensing
Management Interface WebGUI (BIOS level management optional)
Driver Support HighPoint Driver Suite for Windows and Linux
Monitoring Tools SGPIO, SES2 support

Interfaces
Host Interface PCI Express 3.0 x8
Connector Type 2 x SFF-8643 (Mini-SAS HD Internal)
Port Count 8
Interface Type 12Gb/s SAS, 6Gb/s SATA
Data Transfer Rate 12 Gb/s per channel
Lane Configuration x8 Lanes
Backward Compatibility 6G SAS/SATA, 3G SATA
PHY Count 8

Compliance & Origin
Country of Origin CHINA
TAA Compliant No
RoHS Compliant Yes
Certifications CE, FCC, REACH

Advanced Security Features
Boot Support Bootable RAID & JBOD volumes
Data Protection Features RAID 1 & 10 for data redundancy
Drive Failure Notifications LED/Alarm support (via SGPIO)
