| Product Type | RAID Controller |
| Form Factor | Low-profile PCI Express card |
| Interface | PCI Express 2.0 x8 |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50, JBOD |
| Supported Drive Types | SAS, SATA |
| Max Drive Channels | 8 |
| Internal or External Ports | External |
| Data Transfer Rate | 6 Gb/s per port |
| Cache Memory | 512MB DDR3 |
| Battery Backup Unit Support | Yes (optional) |
| Operating System Compatibility | Windows, Linux, macOS |
| RoHS Compliance | Yes |

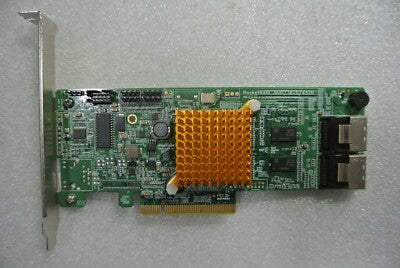

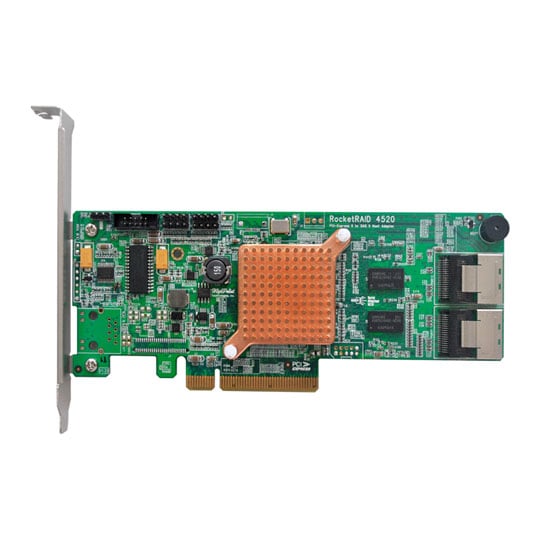

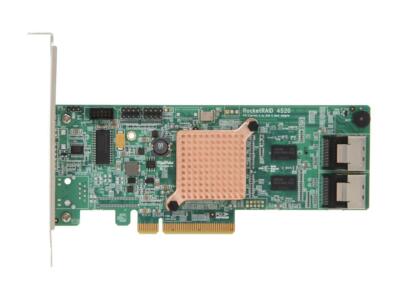

HighPoint RR4520SGL PCIe 2.0 x8 8-Channel 6Gb/s SAS/SATA RAID Controller
Photo is for illustration purposes only. Actual product may be different.
Regular price
$199.00
Regular price
Sale price
$199.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- 8-channel RAID support via dual SFF-8088 Mini-SAS ports
- 6Gb/s SAS and SATA interface support
- PCI Express 2.0 x8 interface for high bandwidth
- RAID levels 0, 1, 5, 6, 10, 50, and JBOD
- Supports Windows, Linux, and macOS operating systems
- RAID management via WebGUI, CLI, BIOS, and UEFI
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Flexible RAID level support enables tailored performance and redundancy solutions.
- Cross-platform OS compatibility makes integration with diverse systems seamless.
- Multiple RAID management interfaces enhance administrative control and deployment efficiency.
Product Overview
The HighPoint RR4520SGL is a high-performance RAID controller with PCIe 2.0 x8 interface and dual SFF-8088 Mini-SAS ports supporting 8-channel connectivity. It enables 6Gb/s SAS/SATA data throughput and covers a wide range of RAID levels including 0, 1, 5, 6, 10, 50, and JBOD. Operating system support spans Windows, Linux, and macOS, with flexible RAID management interfaces like WebGUI, CLI, BIOS, and UEFI. Although not TAA compliant, this controller is manufactured in China and ideally suited for scalable and secure storage systems in enterprise environments.
Specifications
Product Overview
Cloud Management & Licensing
| Management Interface Options | WebGUI, CLI, BIOS utility, UEFI support |
| RAID Management Software | HighPoint WebGUI and CLI Tools |
| Email Notification | Yes |
| SMART Monitoring | Yes |
| Online Capacity Expansion (OCE) | Yes |
| Online RAID Level Migration (ORLM) | Yes |
Physical & Environmental
| Card Dimensions | 6.6 x 2.7 inches (167.6 x 68.6 mm) |
| Operating Temperature | 5°C to 60°C (41°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity (Operating) | 10% to 85% non-condensing |
| Relative Humidity (Storage) | 5% to 90% non-condensing |
| Power Consumption | Less than 10W |
Interfaces
| Port Type | Mini-SAS (SFF-8088) |
| Number of Ports | 2 |
| Host Interface | PCIe 2.0 x8 |
| Drive Interface | SAS/SATA 6Gb/s |
| Max Devices Supported | 128 via SAS expanders |
| Multi-lane Aggregation | Yes |
Advanced Security Features
| Drive Failure Notification | Yes (LED/Email) |
| Redundant Array Support | Yes |
| Hot Spare Support | Yes |
| Drive Roaming | Yes |
| Auto-Rebuild | Yes |
Compliance & Origin
| Country of Origin | China |
| TAA Compliant | No |
| Certifications | FCC, CE, RoHS |
