Products Memory, Storage and Components HighPoint SSD6444M 4-Bay M....

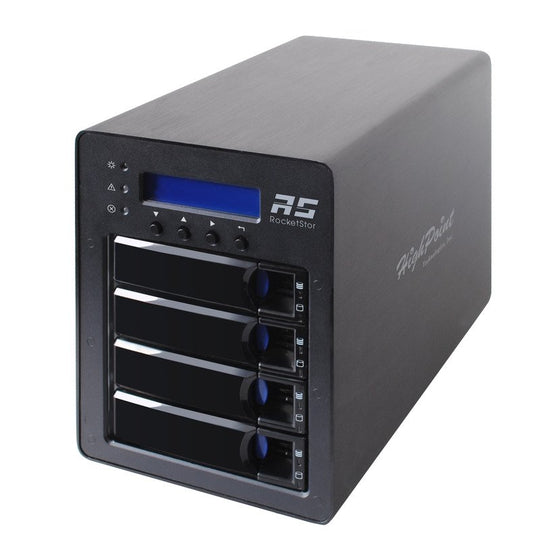

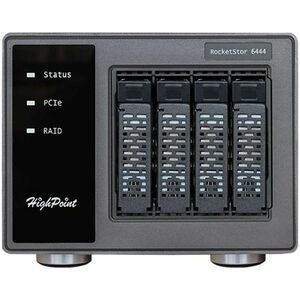

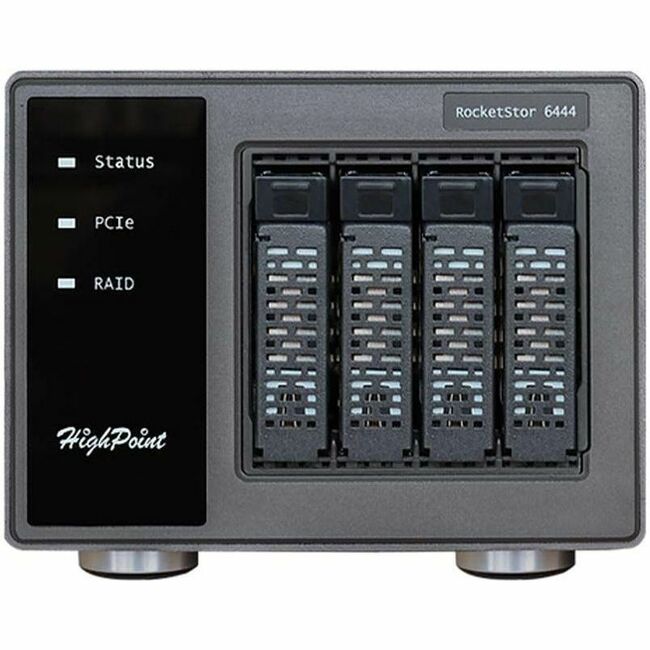

HighPoint SSD6444M 4-Bay M.2 NVMe PCIe 3.0 x16 RAID Enclosure

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD6444M UPC#: 643653644438
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,099.00
$1,099.00
Sale Sold out
Shipping calculated at checkout.
  • Supports up to 4x M.2 NVMe SSDs via PCIe 3.0 x16 interface
  • Compatible with RAID 0, 1, and 10 configurations
  • Cross-platform support: Windows 11, Linux, and macOS
  • WebGUI and CLI-based RAID management tools
  • Rack-style desktop form factor with 250W AC power supply
  • Includes LED indicators, LCD panel, and RoHS compliance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Versatile RAID support allows users to choose speed, data protection, or a balance of both
  • Cross-platform compatibility ensures seamless integration into Windows, macOS, or Linux environments
  • Robust power and monitoring features enhance reliability and ease of use for professional setups

Product Overview

The HighPoint SSD6444M is a PCIe 3.0 x16 RAID enclosure supporting 4 M.2 NVMe SSDs. Designed for desktop use, it offers RAID 0, 1, and 10 configurations and cross-platform compatibility with Windows, Linux, and macOS. With a built-in 250-watt power supply, WebGUI and CLI RAID management, and visual status features like an LCD panel and LED indicators, this is a versatile storage solution. It is RoHS compliant and includes a 2-year warranty, making it ideal for both creative professionals and enterprise applications.

Specifications

Product Overview
Product Type PCIe NVMe RAID Storage Enclosure
Model SSD6444M
Form Factor Desktop
Drive Support Up to 4x M.2 NVMe SSDs
RAID Levels Supported RAID 0, 1, 10
Included Power Supply Internal 250W PSU
Power Requirements 100-240V ~ 5A 50/60Hz
Drive Type NVMe SSD
Color Gray
Warranty 2 Years

Cloud Management & Licensing
Management Interface WebGUI and CLI
Operating System Support Windows, Linux, macOS

Compliance & Origin
Country of Origin China
RoHS Compliant Yes
TAA Compliant No

Additional Features
Hot-Swap Support Yes (dependent on system OS and configuration)
Chassis Build High-grade aluminum with airflow design
Status Monitoring Yes, via LCD and software interface
Vibration Dampening Yes
Rack Mountable No (desktop form factor)

Interfaces
Host Interface PCIe 3.0 x16
Drive Interface M.2 NVMe
Expansion Bay Count 4 x M.2 NVMe bays
Interface Bandwidth Up to 128Gbps (PCIe 3.0 x16)

Physical & Environmental
Width 6.1 Inches (155 mm)
Depth 5.12 Inches (130 mm)
Height 8.27 Inches (210 mm)
Enclosure Type Metal enclosure with power supply
Cooling Active cooling with internal fan
Display Panel LCD for system status
LED Indicators Drive and system activity LEDs

Advanced Security Features
Drive Support for Secure Erase Dependent on SSD capability
Drive Health Monitoring Yes, via WebGUI
