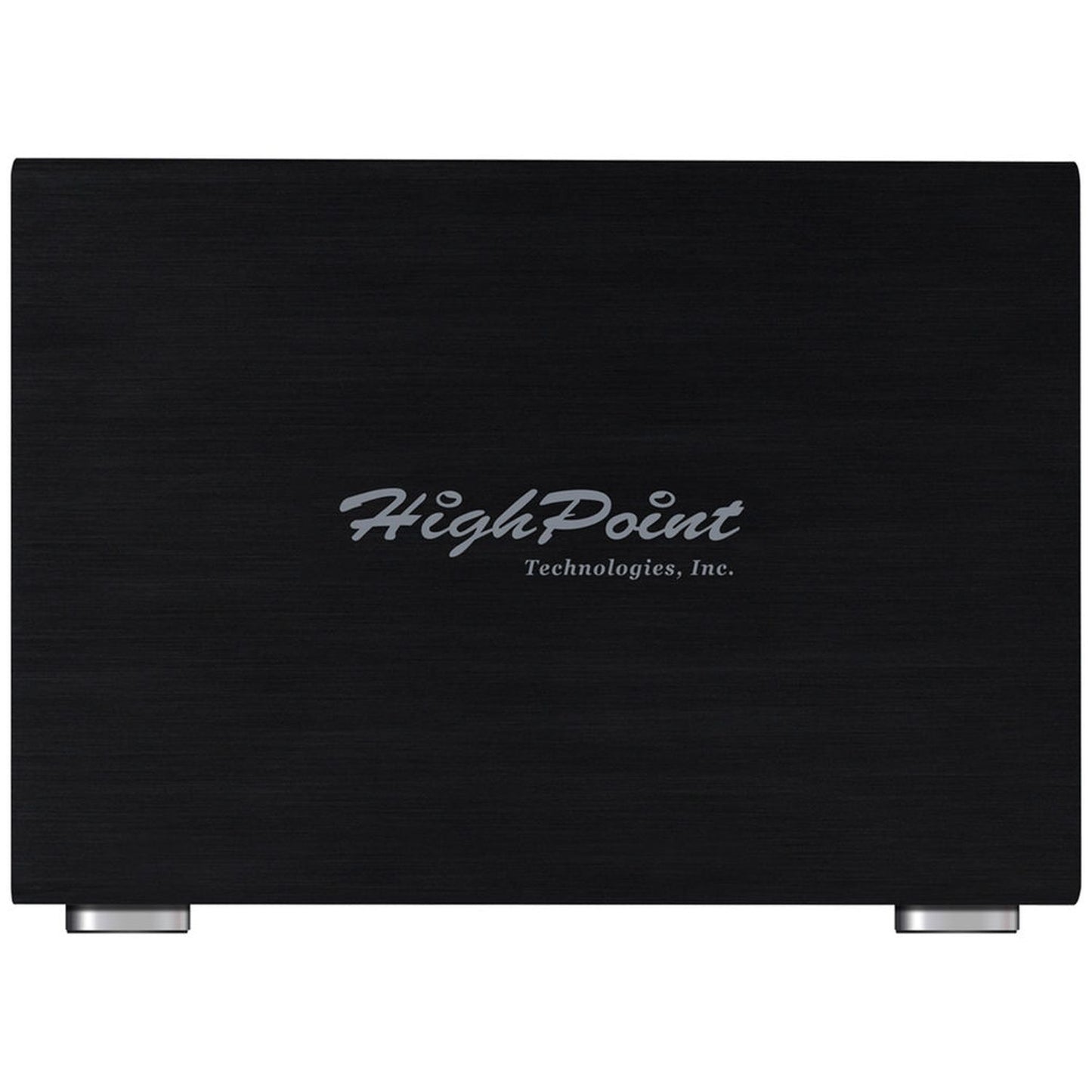

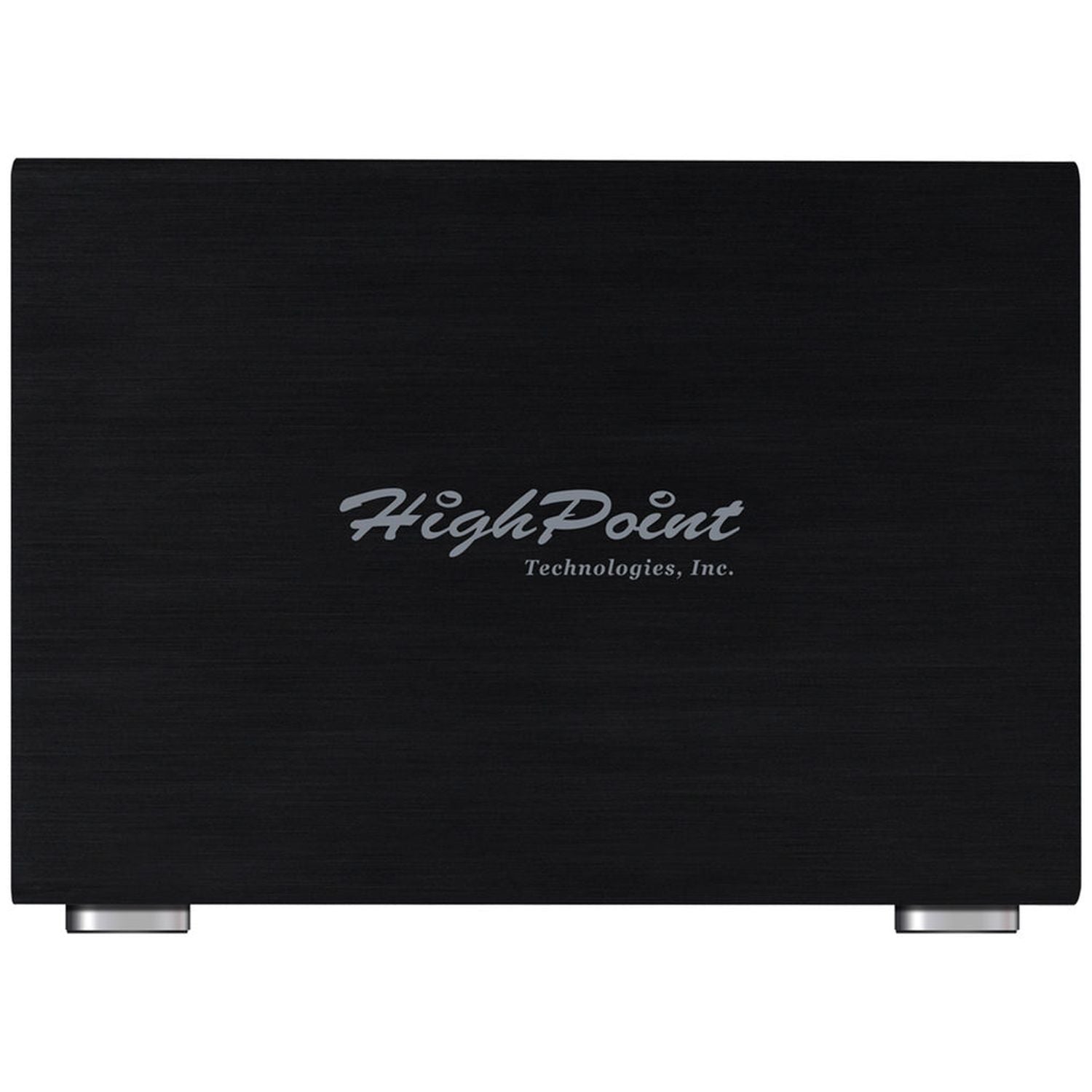

HighPoint SSD6540 PCIe 3.0 x8 4-Bay U.2 NVMe RAID Enclosure

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD6540 UPC#: 643653654017
1 5
Photo is for illustration purposes only. Actual product may be different.
$699.00
$699.00
Sale Sold out
Shipping calculated at checkout.
  • Supports four U.2 NVMe drives via PCIe 3.0 x8 interface
  • RAID 0, 1, and 10 support for performance and redundancy
  • Compatible with Windows 11, macOS, and Linux operating systems
  • Integrated 250W power supply with 100–240V input
  • Includes LCD panel and LED indicators for monitoring
  • WebGUI and CLI RAID management interfaces

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-speed PCIe 3.0 x8 bandwidth enables maximum performance for modern NVMe drives.
  • Compatible with major operating systems including Windows, macOS, and Linux, ensuring deployment flexibility.
  • Built-in 250W power supply and visual diagnostic tools (LCD, LEDs) support reliable, mission-critical use.

Product Overview

The HighPoint SSD6540 is a powerful, multi-bay RAID storage enclosure engineered for professional and enterprise-grade applications. Built on a PCIe 3.0 x8 interface, it supports up to four U.2 NVMe drives, ideal for high-speed, data-intensive environments. With support for RAID levels 0, 1, and 10, it ensures performance and redundancy across platforms including Windows, macOS, and Linux. The 250-watt integrated power supply, LCD panel, and LED indicators enhance reliability and monitoring. Compact dimensions and WebGUI/CLI management make it a flexible storage solution for demanding workloads.

Specifications

Product Overview
Product Name HighPoint SSD6540 PCIe 3.0 x8 4-Bay U.2 NVMe RAID Enclosure
Manufacturer HighPoint Technologies, Inc.
Model SSD6540
Product Type RAID Storage Enclosure
Form Factor Desktop Tower
Drive Bays 4 x U.2 NVMe
RAID Levels Supported RAID 0, 1, 10
Supported Operating Systems Windows, macOS, Linux
Weight Approximately 8.25 lbs (3.74 kg)
Power Supply Internal 250W PSU
Power Input 100-240V AC, 50/60Hz

Cloud Management & Licensing
Management Interface WebGUI, CLI (Command Line Interface)
Supported Features RAID creation/deletion, monitoring, firmware updates
Software Included HighPoint RAID Management Suite
Licensing Required No additional licensing required for base features

Compliance & Origin
Country of Origin China
Compliance Standards CE, FCC, RoHS
Certifications WEEE, VCCI
TAA Compliant No
Warranty 2 Years Limited Warranty
UPC 643653654017

Interfaces

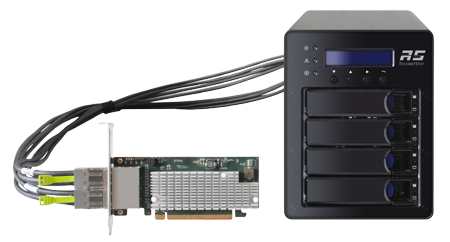

Host Interface PCIe 3.0 x8 via external cable
Drive Interface U.2 (SFF-8639) NVMe
PCIe Bandwidth Up to 64Gbps per U.2 port
Maximum Data Transfer Rate Up to 12,000 MB/s (aggregate)
Number of Ports 4 U.2 NVMe ports

Physical & Environmental
Width 5.79 inches (147 mm)
Depth 10.24 inches (260 mm)
Height 7.68 inches (195 mm)
Cooling System Active cooling with internal fan
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 5% to 85% non-condensing

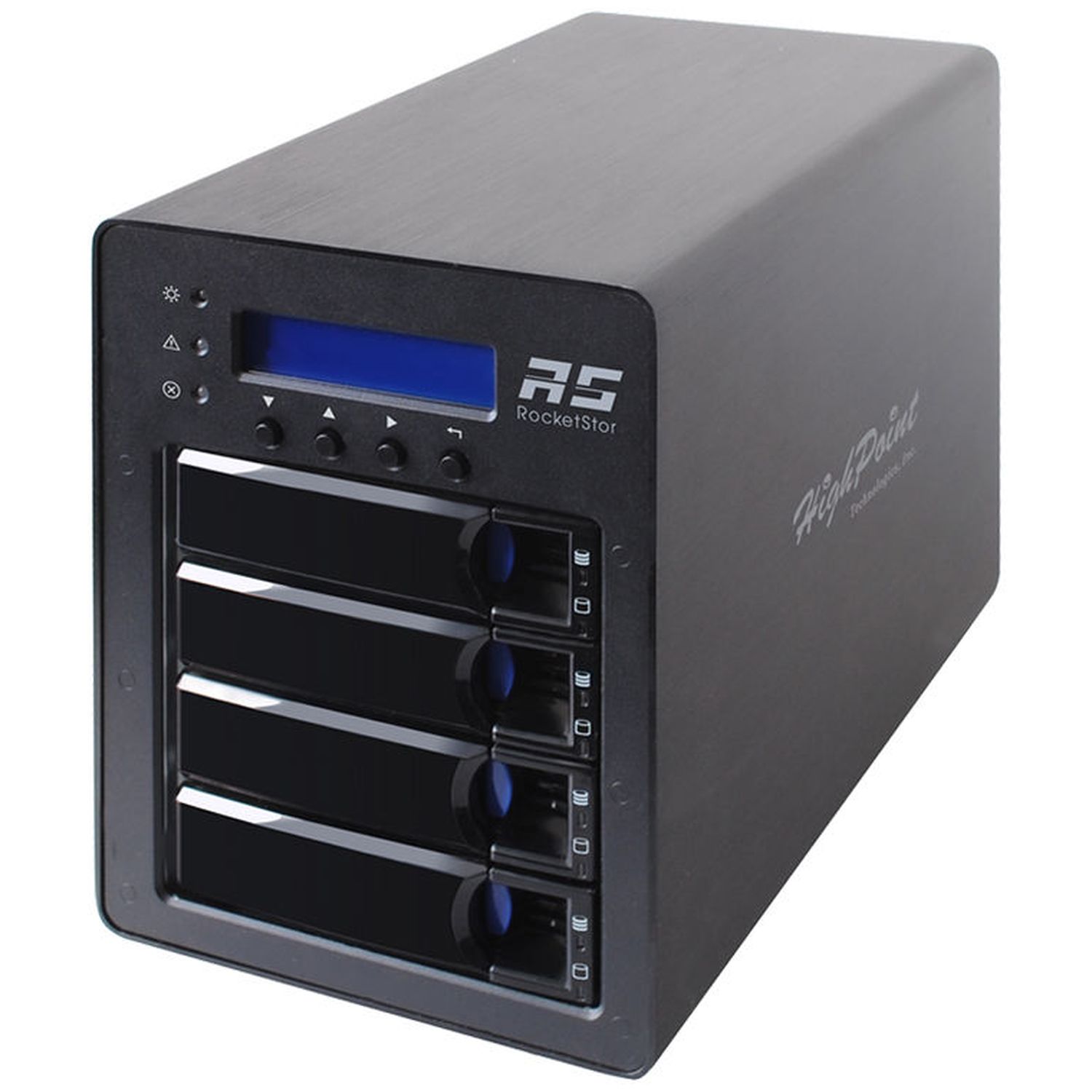

LED Indicators Status LEDs for each bay, power/fault
LCD Panel Front-mounted LCD for system diagnostics
Chassis Material Aluminum alloy
Mounting Options Desktop use, not rack-mountable
