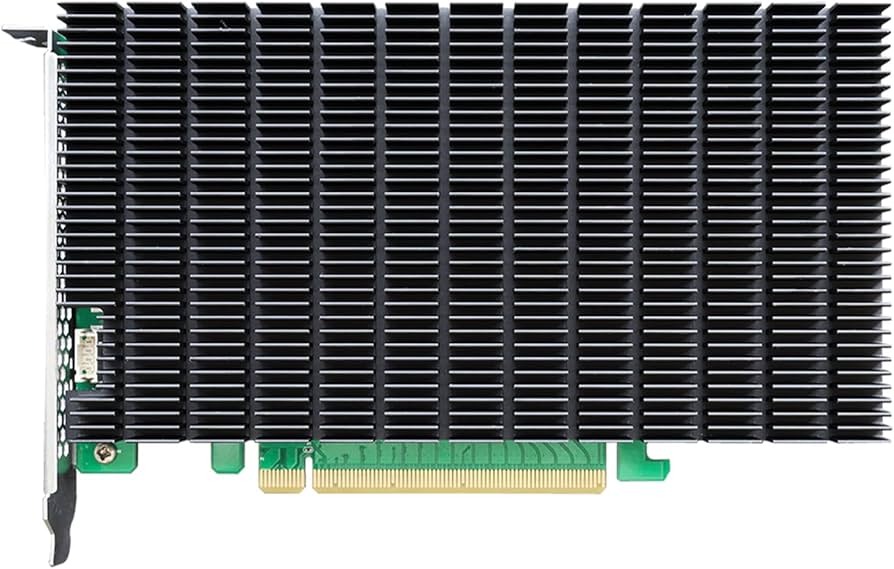

HighPoint SSD7104 PCIe 3.0 x16 4x M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7104 UPC#: 643653710423
1 5
Photo is for illustration purposes only. Actual product may be different.
$399.00
$399.00
Sale Sold out
Shipping calculated at checkout.
  • PCIe 3.0 x16 interface supports high-speed interconnect for storage
  • Supports up to four M.2 NVMe SSDs for high-performance RAID configurations
  • RAID levels 0, 1, 10, and single drive mode supported
  • Full-height form factor suitable for workstation and server deployment
  • Compatible with Windows, Linux, and macOS operating systems
  • Multiple RAID management interfaces: WebGUI, CLI, BIOS, and UEFI

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables ultra-fast storage solutions with support for four high-speed NVMe drives over PCIe 3.0 x16
  • Supports flexible RAID configurations and OS environments, including Windows, macOS, and Linux
  • Simplifies RAID setup and control through multiple management tools such as WebGUI, CLI, and UEFI

Product Overview

The HighPoint SSD7104 PCIe RAID controller provides high-speed connectivity for up to four M.2 NVMe SSDs via a PCIe 3.0 x16 interface, maximizing bandwidth and throughput. Compatible with Windows, Linux, and macOS, and supporting RAID levels 0, 1, 10, and single drive mode, it offers flexible deployment options. RAID setup and management are accessible through intuitive tools including WebGUI, CLI, BIOS, and UEFI. This full-height card, with compact dimensions, is ideal for professional environments where performance and reliability are critical.

Specifications

Product Overview
Product Type RAID Controller
Form Factor Full Height
Interface PCI Express 3.0 x16
Number of Devices Supported 4 x M.2 NVMe
Weight 0.45 lbs (approx.)
Power Requirements Up to 28W under full load
RAID Levels Supported RAID 0, 1, 10, Single Disk
Operating System Compatibility Windows 10+, Windows Server 2016+, Linux Kernel 3.10+, macOS 10.13+

Cloud Management & Licensing
Management Interface WebGUI, CLI, API, BIOS/UEFI-Level Management
Software RAID Management RAID Management Suite (HighPoint WebGUI, CLI)
License Required No; Software included

Physical & Environmental
Width 7.68 Inch
Depth 4.41 Inch
Height 0.81 Inch
Cooling Dedicated Aluminum Heat Sink with Low-noise Fan
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5%–85%, non-condensing
Storage Humidity 5%–95%, non-condensing

Wireless Features
Wireless Support

Interfaces
Interface Type PCIe 3.0 x16
Drive Interface NVMe (PCIe Gen3 x4 per drive)
Number of M.2 Ports 4
Supported Connector Key M-Key M.2 2280/22110
Maximum Transfer Rate Up to 14,000 MB/s (aggregate)
Hot Swap Support No

Advanced Security Features
Bootable RAID Support Yes (UEFI compatible)
TRIM Support Yes (RAID 0 & single disk)
SMART Monitoring Yes

Compliance & Origin
Country of Origin CHINA
TAA Compliant No
RoHS Compliance Yes
CE Certification Yes
FCC Certification Yes
REACH Compliance Yes
