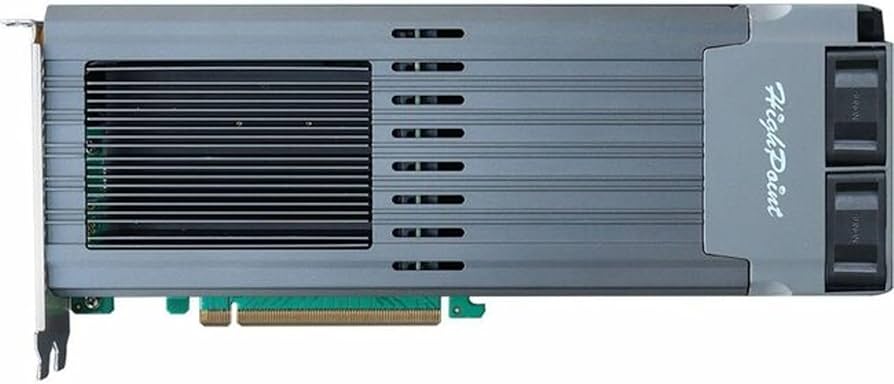

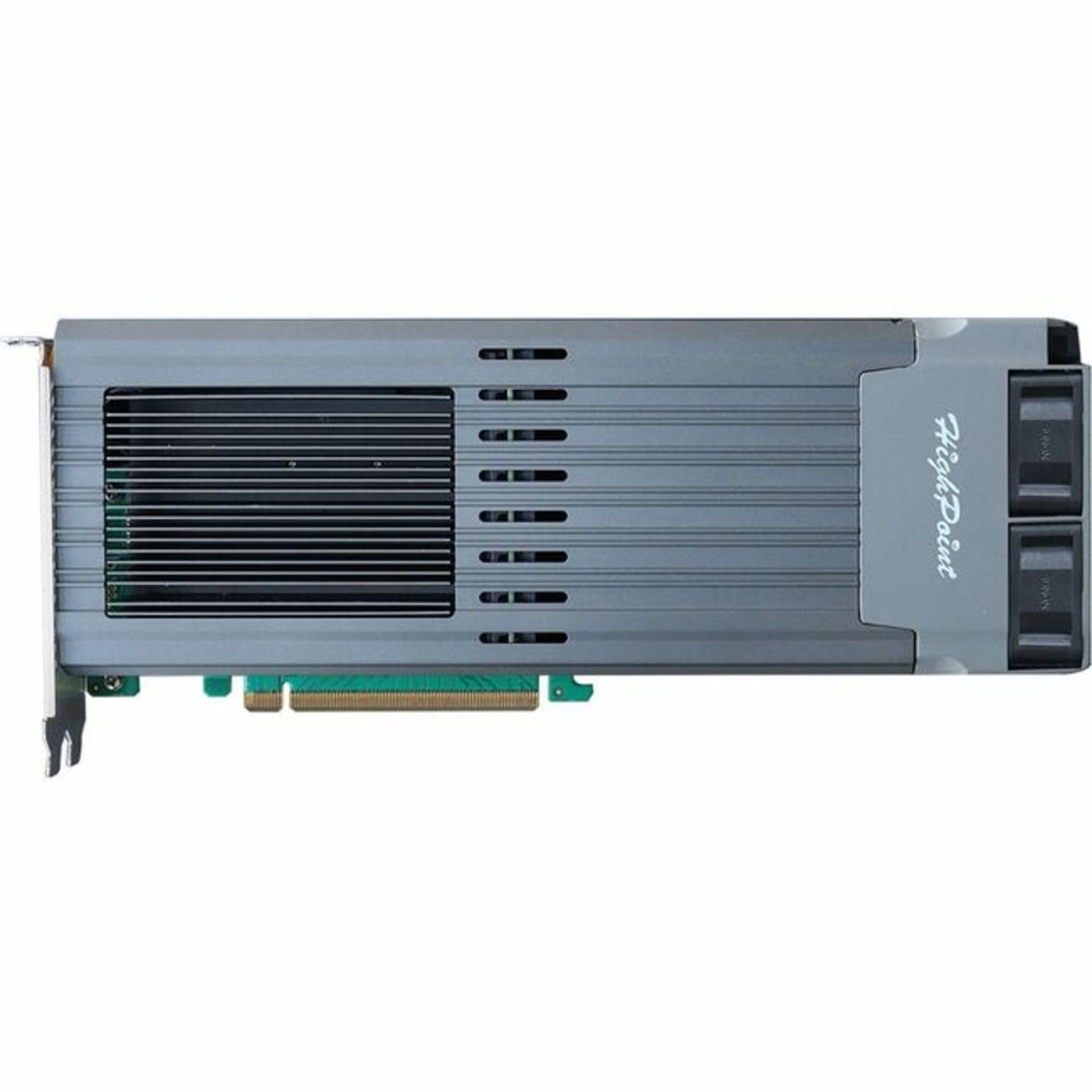

HighPoint SSD7749M PCIe 4.0 x16 8x M.2 NVMe RAID Controller

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: SSD7749M UPC#: 643653774913
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,099.00
$1,099.00
Sale Sold out
Shipping calculated at checkout.
  • - PCIe 4.0 x16 interface supporting high-speed data transfer
  • - 8x M.2 NVMe ports for scalable SSD expansion
  • - RAID 0, 1, and 10 support for performance and redundancy options
  • - Cross-platform compatibility with Windows 11, macOS, and Linux
  • - 250W power supply supporting 100–240V input
  • - Desktop form factor with RoHS compliance and 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports up to eight M.2 NVMe SSDs, providing massive high-speed storage expansion in a single card.
  • PCIe 4.0 x16 interface ensures optimal data throughput for intensive computing environments.
  • Compatible with Windows 11, macOS, and Linux, making it versatile across multiple system platforms.

Product Overview

The HighPoint SSD7749M is a high-performance RAID controller designed for enterprise and prosumer storage demands. Supporting up to eight M.2 NVMe SSDs via a PCIe 4.0 x16 interface, it enables outstanding throughput for data-intensive tasks and offers configurable RAID 0, 1, and 10 for optimal performance and data protection. Designed as a desktop enclosure, it comes with a 250W power adapter and operates across macOS, Linux, and Windows 11. A 2-year warranty and RoHS compliance round out this versatile, scalable storage solution.

Specifications

Product Overview
Product Type NVMe RAID Storage Enclosure
Enclosure Model HighPoint SSD7749M
Form Factor Desktop
Supported Drive Type M.2 NVMe SSD
Drive Bays 8x M.2 NVMe
RAID Support RAID 0, 1, 10
Power Adapter Included Yes
Power Adapter Output 250W
Power Input Requirements 100-240V ~ 5A 50/60Hz
Supported Operating Systems macOS, Linux, Windows 11
Warranty 2 Years
Color Grey

Physical & Environmental
Width 11.18 in (284 mm)
Depth 4.92 in (125 mm)
Height 1.53 in (39 mm)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 85% (non-condensing)
Cooling Integrated heatsink or passive (drive-dependent)

Cloud Management & Licensing
Management Interface Web GUI & CLI via OS utility
Software Included HighPoint RAID Management Suite
Cloud Access No integrated remote cloud management
Licensing Requirements None (standard RAID levels included)

Interfaces
Host Interface PCIe 4.0 x16
Internal Interfaces 8x M.2 NVMe
Maximum Theoretical Bandwidth Up to 256 Gb/s (32 GB/s) via PCIe 4.0 x16
Interface Standard PCI Express 4.0
Installation Interface PCIe Slot

Compliance & Origin
RoHS Compliant Yes
Country of Origin China
TAA Compliant No
Regulatory Approvals CE, FCC, RoHS

Advanced Security Features
RAID Protection Features RAID-level redundancy (RAID 1 & 10)
Hot-Swap Support No, depends on motherboard support
Data Integrity Features RAID redundancy & NVMe SMART monitoring
