Products Network Stuff HP Aruba 2930M 48G PoE+ 1-s...

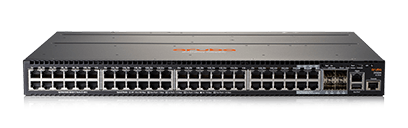

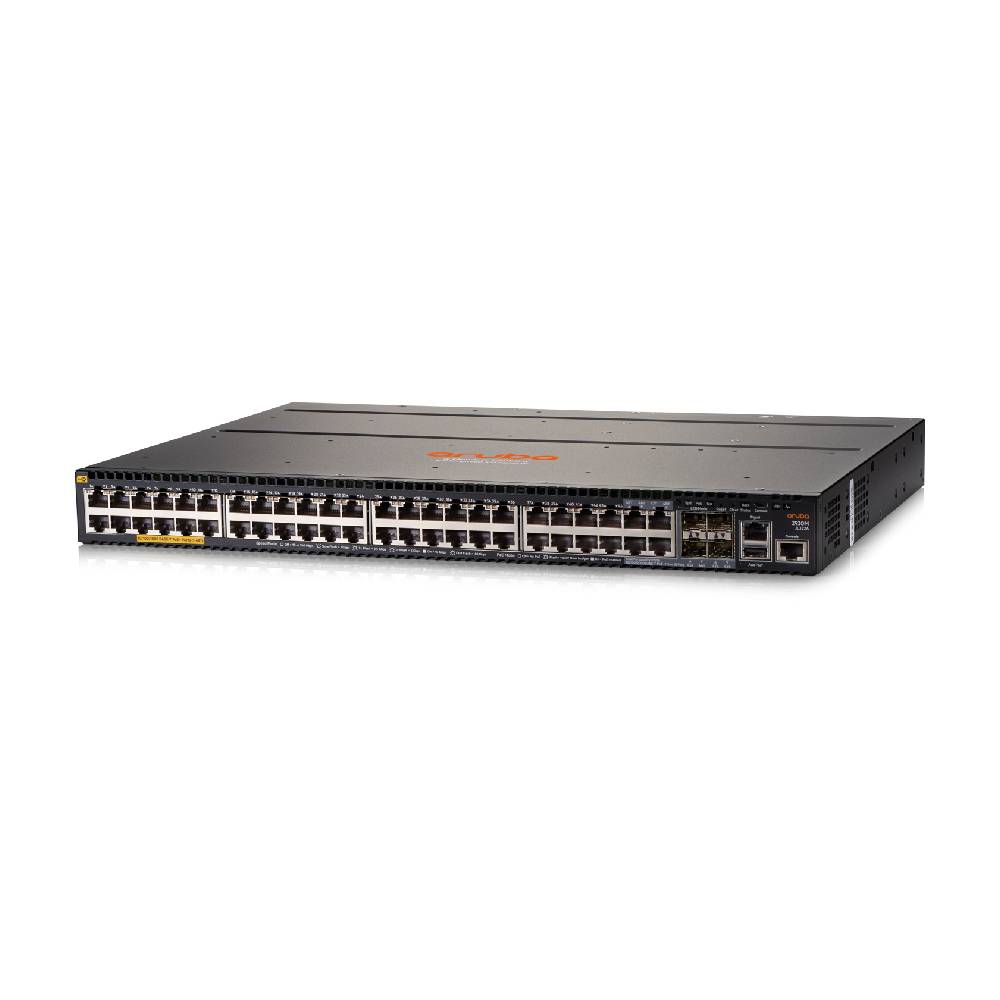

HP Aruba 2930M 48G PoE+ 1-slot Switch JL322A

VENDOR: HP Mfg Part#: JL322A UPC#: 190017071251
1 2
Photo is for illustration purposes only. Actual product may be different.
$3,593.42
$3,593.42
Sale Sold out
MSRP: $7,179.00
Shipping calculated at checkout.
  • 48-port Gigabit PoE+ configuration with 44 RJ-45 and 4 dual-personality ports
  • Supports IEEE 802.3at PoE+ with up to 30W per port and 1440W total power budget
  • Layer 3 dynamic routing support with RIP and OSPF capabilities
  • Up to 32,768 MAC address entries for large-scale network deployments
  • 1 GB DDR3 SDRAM and 4 GB eMMC flash for high-performance processing
  • Modular design with uplink and stacking module slots for scalability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports full PoE+ power delivery (up to 1440W), reducing the need for separate electrical infrastructure.
  • Layer 3 routing and robust VLAN capabilities offer scalability and efficient traffic management for complex networks.
  • Includes a limited lifetime warranty, providing long-term assurance and investment protection.

Product Overview

The HP Aruba 2930M 48G PoE+ 1-slot Switch (JL322A) is an advanced network switch engineered for enterprise-level access and aggregation needs. It features 44 RJ-45 autosensing 10/100/1000 PoE+ ports and 4 dual-personality ports that can be used as either BASE-T or SFP, offering robust configurability and flexibility. With support for IEEE 802.3at PoE+ on all ports (up to 30W per port and 1440W total power), it can power next-generation IP phones, access points, and security devices directly, reducing infrastructure costs significantly. The switch is powered by a dual-core ARM Cortex A9 CPU at 1016 MHz and includes 1 GB DDR3 SDRAM and 4 GB eMMC, delivering high responsiveness and efficient traffic processing. It supports jumbo frames up to 9220 bytes and includes advanced Layer 3 dynamic routing features such as RIP and OSPF.

Designed for high-performance environments, it supports low latency (under 3.4 μs), advanced VLAN tagging (with support for up to 2K VLANs and 4094 VLAN IDs), and SNMP remote management. It comes with one uplink module and one stacking module slot, supporting modular expansion and redundancy. The unit also includes an IEEE 802.1X authentication feature, MD5 encryption, and a comprehensive limited lifetime warranty, ensuring long-term value. With a compact design (1.73" x 17.42" x 12.77") and TAA compliance, the Aruba 2930M offers a reliable, efficient, and secure switching solution for growing network environments.

Specifications

Product Overview
Product Type Network Switch
Model Aruba 2930M 48G PoE+ 1-slot Switch
Series Aruba 2930M
Form Factor Rack-mountable - 1U
Processor Dual-core ARM Cortex A9 1016 MHz
Memory (RAM) 1 GB DDR3 SDRAM
Flash Storage 4 GB eMMC
Jumbo Frame Support Up to 9220 bytes
MAC Address Table Size 32,768 entries
Power Consumption - Operational 470 Watts
Maximum Power Consumption 1440 Watts (PoE)
PoE Budget 1440 Watts total; up to 30W per port

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Compliant Standards IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.3af, 802.3at
Warranty Limited Lifetime Warranty

Advanced Security Features
Authentication IEEE 802.1X with RADIUS support
Encryption Algorithm MD5
Routing Protocol Layer 3 Dynamic Routing (RIP, OSPF)

Interfaces
Total Ports 48
10/100/1000Base-T PoE+ Ports 44
Combo (Dual-Personality) Ports 4 (10/100/1000 Base-T PoE+ or 100/1000 Mbps SFP)
Uplink Module Slot 1
Stacking Module Slot 1
Interface Type RJ-45, SFP
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
VLAN Support IEEE 802.1Q; 4094 VLAN IDs and up to 2000 VLANs

Physical & Environmental
Width 17.42 in
Height 1.73 in
Depth 12.77 in
Weight 10.25 lbs
Operating Temperature Range 0 to 55 °C
Storage Temperature Range -40 to 70 °C

Cloud Management & Licensing
Remote Management Protocol SNMP
