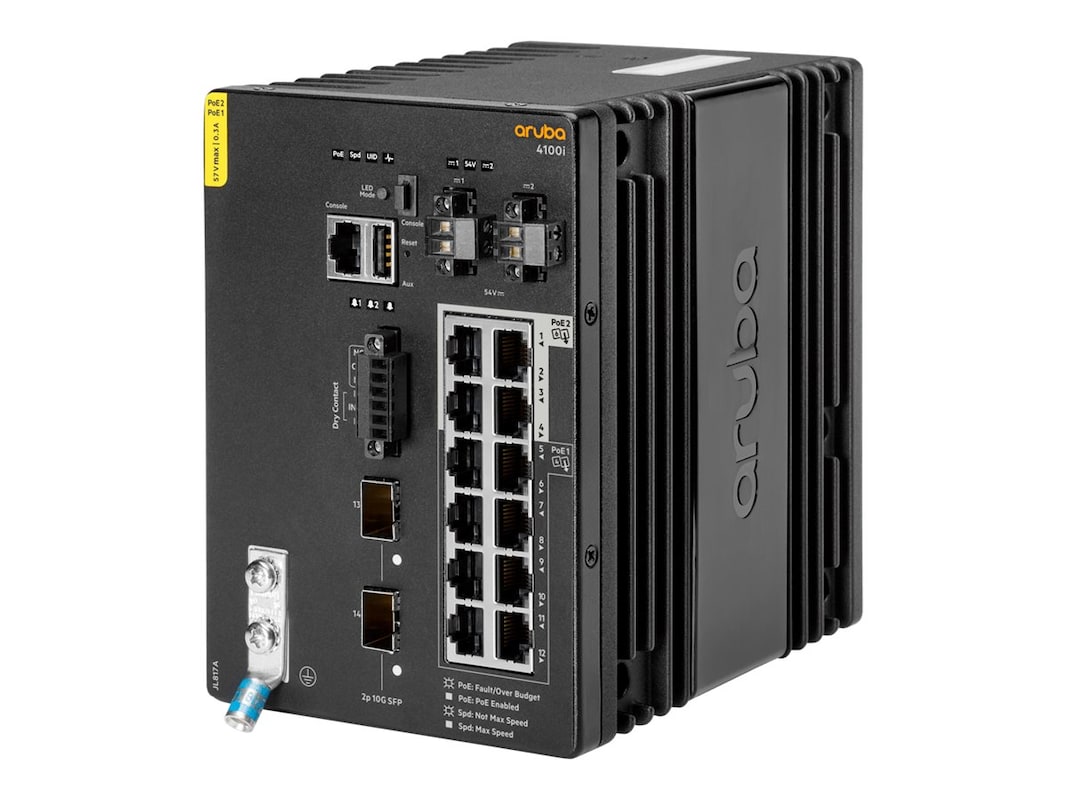

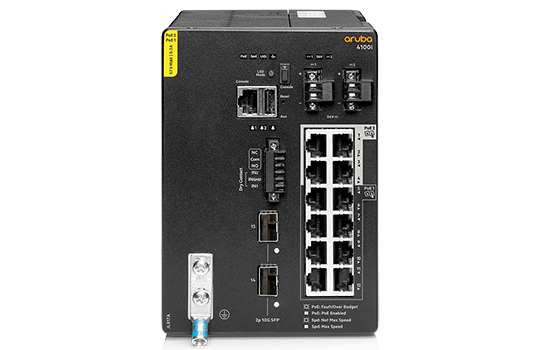

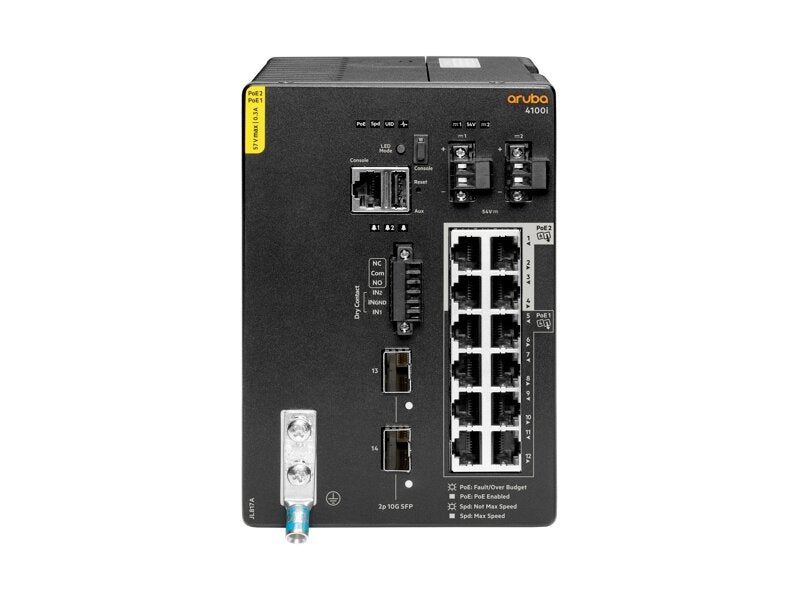

HP Aruba 4100i 12G CL4/6 PoE 2SFP+ DIN Switch JL817A

VENDOR: HP Mfg Part#: JL817A UPC#: 190017486871
1 4
Photo is for illustration purposes only. Actual product may be different.
$5,074.00
$5,074.00
Sale Sold out
MSRP: $6,409.00
Shipping calculated at checkout.
  • 12 Gigabit Ethernet ports: 4x Class 6 PoE (60W), 8x Class 4 PoE (30W)
  • 2x 1G/10G SFP+ uplink ports for high-speed fiber connectivity
  • Processor: Dual Core ARM Cortex A9, 1016 MHz
  • Memory: 4 GB DDR3 RAM and 32 GB eMMC flash
  • Advanced latency: 2.038 µs (10 Gbps), 2.390 µs (1 Gbps)
  • DIN-rail mountable, rugged design with -40°C to 60°C operating range

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Designed for industrial and edge deployments with extended temperature tolerance and DIN-rail form factor
  • PoE capability up to 60W per port supports high-power devices such as PTZ cameras and access points
  • Backed by a 5-year warranty, reducing maintenance costs and increasing operational continuity

Product Overview

The HP Aruba 4100i 12G CL4/6 PoE 2SFP+ DIN Switch (JL817A) delivers robust industrial connectivity with 12 Gigabit PoE ports (including Class 6 and Class 4 support) and 2 high-speed 1G/10G SFP+ uplink ports for scalable architecture. Featuring an ARM Cortex A9 processor, 4 GB RAM, and 32 GB flash, it ensures smooth data handling in challenging environments, with an operational temperature range from -40°C to 60°C. Certified TAA-compliant and backed by a 5-year warranty, it offers reliability and long-term value for critical edge and industrial network deployments.

Specifications

Product Overview
Product Type Managed Industrial Ethernet Switch
Model HPE Aruba Networking CX 4100i Switch
Manufacturer Part Number JL817A
UPC 190017486871
Form Factor DIN Rail Mountable
Processor Type ARM Cortex A9
RAM Installed 4 GB
Flash Memory Installed 32 GB
Weight 8.18 lbs.
Power Consumption (Typical) 22 Watt
Max Power Consumption 819 Watt
Power Requirements JL819A, JL820A, or JL821A Power Supplies

Wireless Features

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC Class A, VCCI, BSMI, UL, CB, RCM

Advanced Security Features
Network Security 802.1X authentication, MAC authentication, secure management via SSH/HTTPS
Access Control RADIUS, TACACS+
DHCP Snooping Supported
ARP Protection Dynamic ARP Inspection (DAI)
Port Security Supported
Storm Control Supported

Interfaces
Total Ports 17
Ethernet Ports (Class 6 PoE) 4 x 100M/1G Base-T (up to 60W per port)
Ethernet Ports (Class 4 PoE) 8 x 100M/1G Base-T (up to 30W per port)
SFP+ Uplink Ports 2 x 1G/10G SFP+
USB-C Console Port 1
RJ45 Console Port 1
USB Type-A Host Port 1
Alarm Socket 1
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired

Physical & Environmental
Width 6.3 in
Depth 4.4 in
Height 6.4 in
Operating Temperature (Min) -40°C
Operating Temperature (Max) 60°C
Humidity (Operating) 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface Aruba Central (cloud-based), Aruba CX Mobile App, Web GUI, CLI
Software Licensing Aruba Central subscription required for cloud management
Included Cloud Features Device monitoring, configuration, firmware upgrades, AI-based insights
