HP Aruba 8325-48Y8C FB 6 F 2 PS Switch, 48x25G SFP28, 8x100G QSFP28

VENDOR: HP Mfg Part#: JL624A#ABA UPC#: 190017327785
1 5

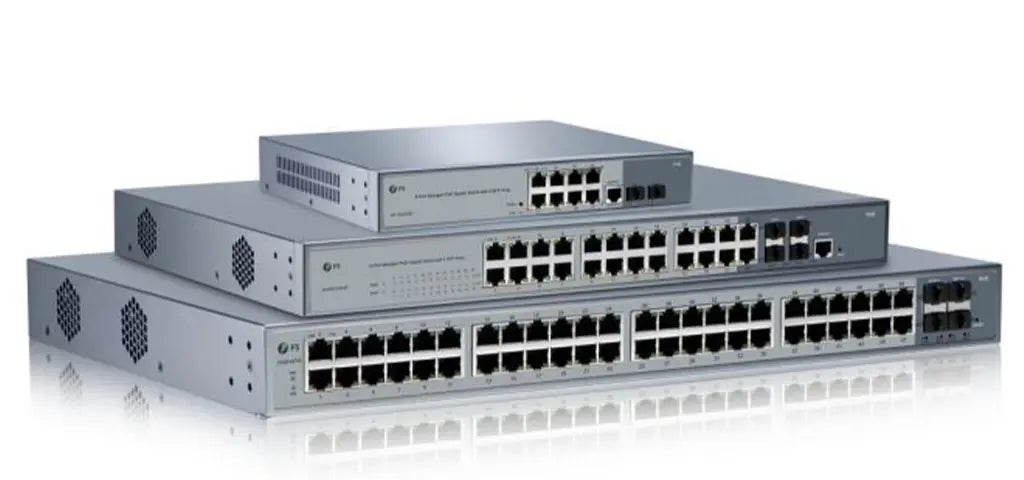

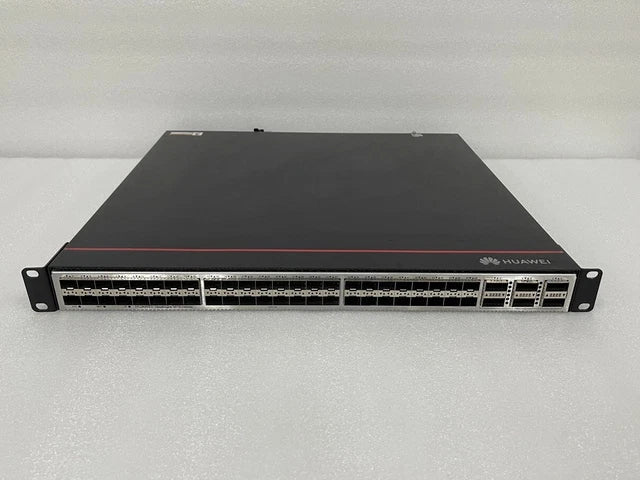

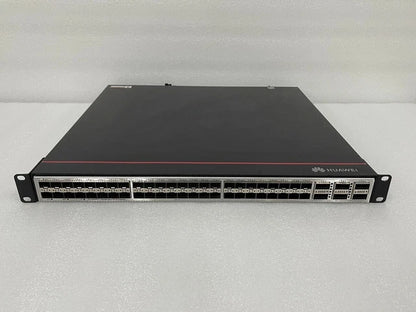

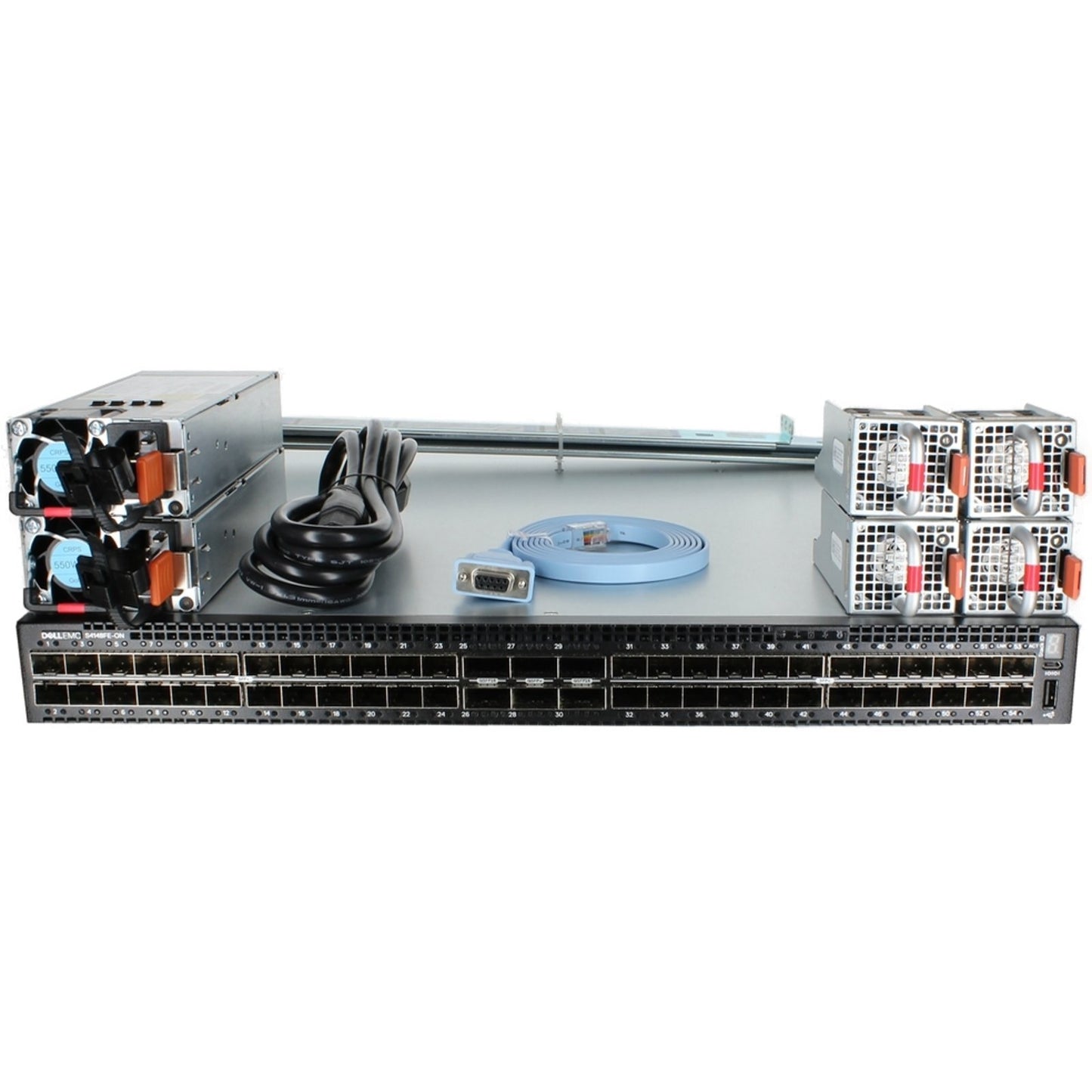

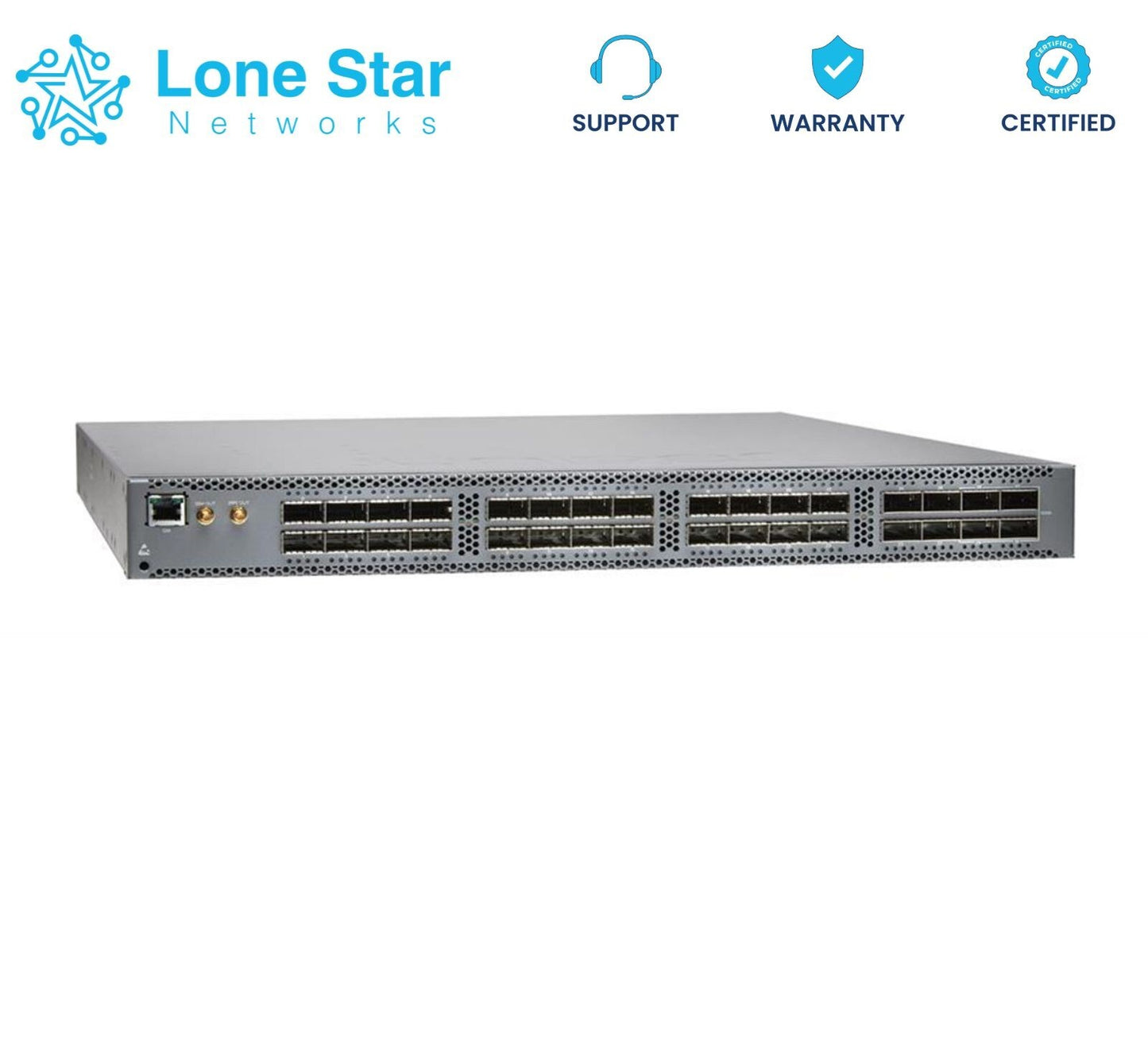

Photo is for illustration purposes only. Actual product may be different.
$36,928.81
$36,928.81
Sale Sold out
MSRP: $46,645.00
Shipping calculated at checkout.
  • 48 x 25G SFP28 and 8 x 100G QSFP28 ports for high-throughput connectivity
  • Advanced Layer 3 routing protocol support and jumbo frame compatibility
  • Powered by 2.2GHz CPU, with 16GB RAM, 64GB SSD, and 8GB flash memory
  • Operational power consumption of 550W on 100–240VAC input
  • Redundant fans and power supplies ensure high availability
  • SNMP-based remote management with support for 98304 MAC address entries

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers high-speed connectivity and port density with 48x25G and 8x100G interfaces for scalable deployments
  • Redundant power and fan components enhance network uptime and operational reliability
  • Backed by a robust 5-year warranty, ensuring long-term investment protection

Product Overview

The HP Aruba 8325-48Y8C FB 6 F 2 PS is a next-generation top-of-rack and core switch designed for demanding enterprise and data center environments. It features 48 high-speed 25G SFP28 ports and 8 ultra-fast 100G QSFP28 ports, enabling flexible, high-throughput connectivity ideal for spine-leaf architectures. With Layer 3 advanced routing and support for jumbo frames, this switch ensures efficient traffic management and scalability.

Powered by a 2.2GHz CPU with 16GB RAM, 64GB SSD storage, and 8GB flash memory, it delivers fast configuration and processing. The device supports redundancy through dual power supplies and fans, a 32MB packet buffer, and a 550W power draw with 100–240VAC input. It operates within a 0°C to 40°C temperature range and is TAA-compliant and RoHS-certified.

With centralized management via SNMP and a 5-year warranty, the Aruba 8325 switch offers reliability, performance, and future-ready scalability for growing network infrastructures.

Specifications

Product Overview
Product Type Top-of-rack and core switch
Model Aruba 8325-48Y8C FB 6 F 2 PS
Series Aruba CX 8325 Switch Series
Form Factor 1U rack-mountable
Weight 22.1 lbs.
Power Consumption (Max) 550 Watt
Power Supply Type Dual redundant hot-swappable power supplies
Voltage Required 100–240VAC
CPU 2.2 GHz x86 64-bit quad-core
RAM 16 GB
Flash Memory 8 GB
Internal Storage 64 GB SSD
Buffer Size 32 MB packet buffer

Wireless Features
Wireless Support No

Compliance & Origin
RoHS Compliance Yes
TAA Compliant Yes
Country of Origin Taiwan
Regulatory Compliance FCC, IC, CE, VCCI, BSMI, RCM

Advanced Security Features
Access Control Access Control Lists (ACLs)
Authentication 802.1X, MAC Authentication, Web Authentication
Encryption SSH, SSL, SNMPv3
Secure Management Role-based access control (RBAC), RADIUS/TACACS+
Port Security Yes

Interfaces
Total Port Count 56
25G SFP28 Ports 48
100G QSFP28 Ports 8
Port Interface Types (48) SFP28, (8) QSFP28
MAC Address Table Size 98,304 entries
Data Link Protocols 100 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate Up to 100 Gbps
Jumbo Frame Support Yes
Layers Supported Layer 2, Layer 3, Layer 3 Advanced Routing

Physical & Environmental
Width 17.26 in
Depth 21.1 in
Height 1.7 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Cooling Front-to-back airflow with redundant fans
Rack Units 1U

Cloud Management & Licensing
Management Interface SNMP, CLI, Web GUI, Aruba NetEdit, REST API
Cloud Management Supported via Aruba Central (license required)
License Model Perpetual with optional subscription for cloud features
