Products Network Stuff HP Aruba 8360-12C Prt2Pwr3F...

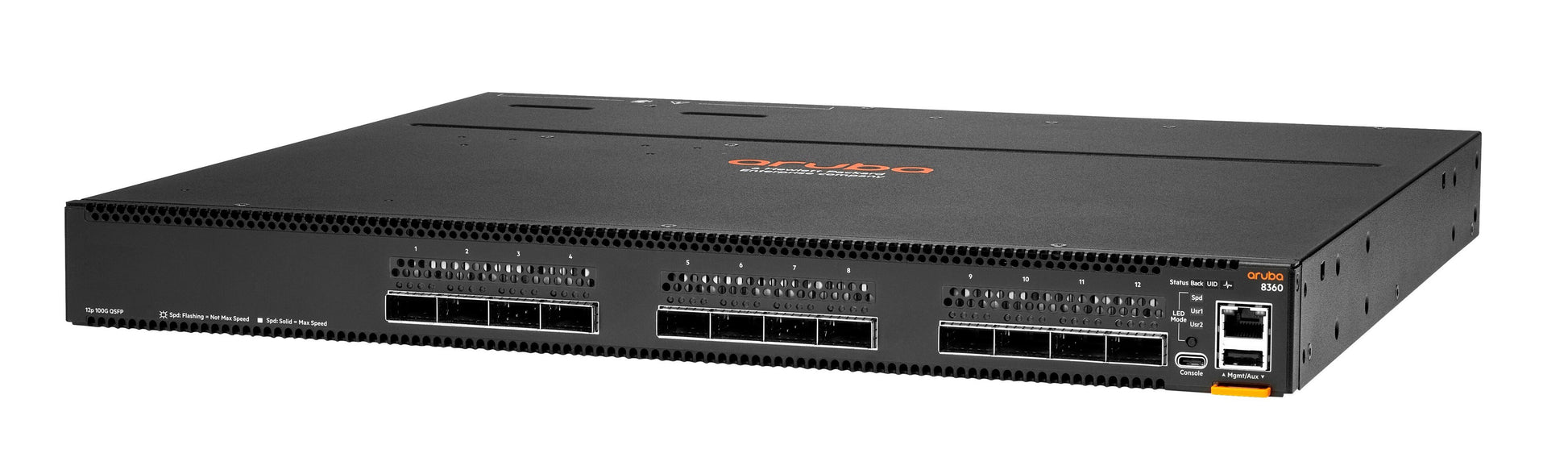

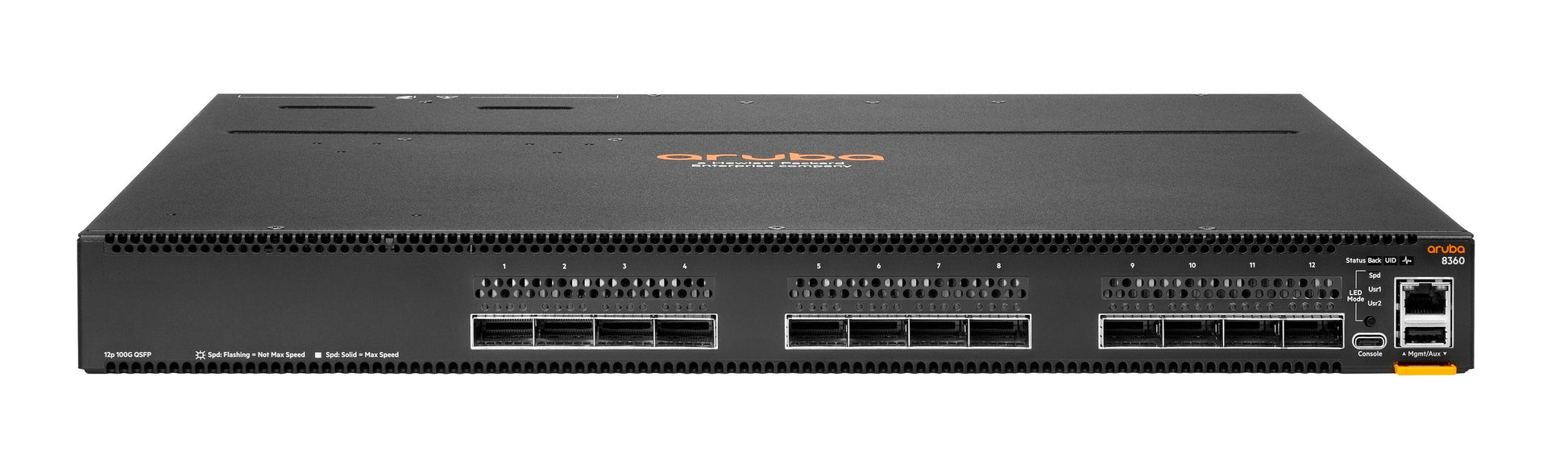

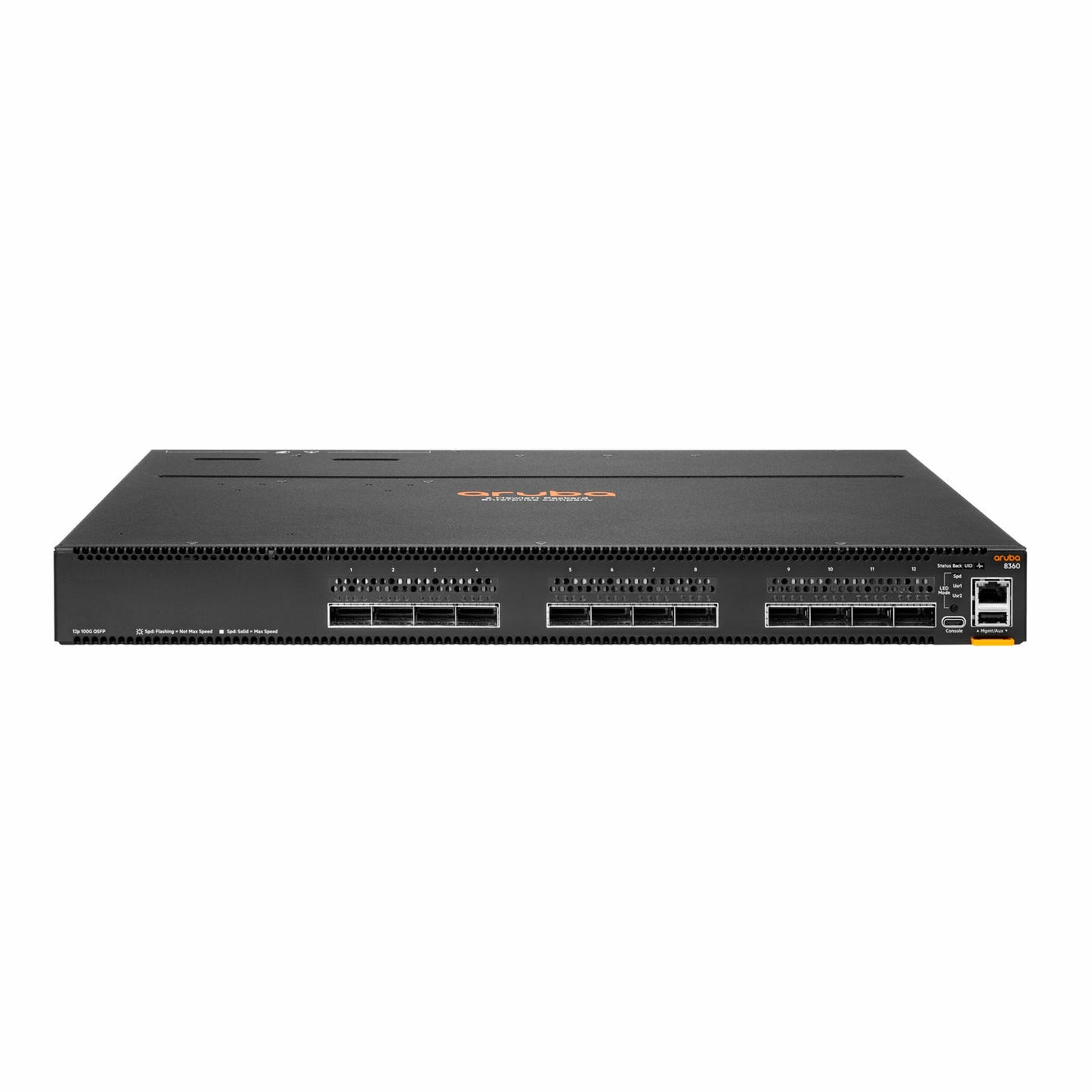

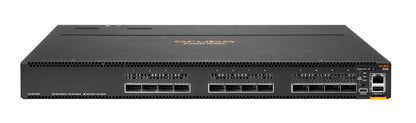

HP Aruba 8360-12C Prt2Pwr3F2PS Switch Bundle JL708A#ACJ

VENDOR: HP Mfg Part#: JL708A#ACJ UPC#: 190017405667
1 5
Photo is for illustration purposes only. Actual product may be different.
$28,513.05
$28,513.05
Sale Sold out
MSRP: $36,015.00
Shipping calculated at checkout.
  • 12-port network switch bundle for enterprise-grade deployment
  • Includes 2 power modules and 2 power supplies for high availability
  • Three cooling fans integrated for thermal efficiency
  • Assembled in Singapore, assuring controlled manufacturing standards
  • TAA compliant, suitable for government and regulated sectors

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Meets TAA compliance, making it ideal for federal and public sector contracts.
  • Designed for high-availability with redundant power supplies and fans for mission-critical networking.
  • Backed by Aruba’s reputation for reliability in enterprise and data center deployments.

Product Overview

The HP Aruba 8360-12C Prt2Pwr3F2PS bundle (Part Number JL708A#ACJ) is part of Aruba’s advanced switching portfolio, engineered for enterprise and data center applications demanding high throughput and operational resilience. Built to support modern network architectures, this switch bundle provides expanded port density and integrated power features to meet the ever-growing demands on core and aggregation layers.

Designed and assembled in Singapore and compliant with the Trade Agreements Act (TAA), this model is particularly suited for deployment in government and federally regulated environments. The bundle includes 12 ports, two power modules, three fans, and two power supply units, ensuring system continuity and optimized airflow management for thermally sensitive deployments.

Ideal for organizations requiring scalable, high-availability switching, the Aruba 8360 series supports integration into existing Aruba environments, offering investment protection and consistent network management. Whether for high-capacity campus backbones or mission-critical network aggregation, this bundle provides a foundation of proven Aruba reliability and performance.

Specifications

Product Overview
Product Type Layer 3 Modular Switch
Form Factor 1U rack-mountable
Product Series Aruba CX 8360 Series
Bundle Contents 12-port switch, 2 power modules, 3 fans, 2 power supplies
Redundant Power Yes
Hot-swappable Components Fans, power supplies
Weight Approximately 7.1 kg (15.7 lbs)
Power Requirements 100–240V AC, 50/60Hz
Power Consumption (Maximum) 190W

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CB, CE, FCC, VCCI, BSMI, EAC, UKCA

Advanced Security Features
Access Control Lists (ACL) Yes
Traffic Filtering Layer 2-4 access control
802.1X Authentication Yes
MACsec Encryption Yes (128-bit and 256-bit)
Role-Based Access Control Yes
DHCP Snooping Yes
IP Source Guard Yes
Dynamic ARP Inspection Yes
Port Security Yes

Interfaces
Port Configuration 12 x 40/100G QSFP28 ports
Total Ethernet Ports 12
Transceiver Slots 12 QSFP28
Maximum Throughput 2.4 Tbps
Switching Capacity 2.4 Tbps
Forwarding Rate 1,190 Mpps
MAC Address Table Size 128K entries
Packet Buffer Size 32 MB
Jumbo Frame Support Yes (up to 9216 bytes)

Physical & Environmental
Dimensions (W x D x H) 44 x 43.5 x 4.4 cm (17.32 x 17.13 x 1.73 in)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 95% non-condensing
Acoustic Noise 62 dB (typical)
MTBF 918,322 hours

Cloud Management & Licensing
Management Interface Aruba Network Analytics Engine (NAE), CLI, REST API, Web GUI
Operating System Aruba AOS-CX
Cloud Management Support Aruba Central compatible
Licensing Model Subscription-based for cloud features
Switch Software Features Dynamic Segmentation, Virtual Switching Framework (VSF), EVPN-VXLAN, BGP, OSPF, IS-IS
