HP Aruba 8360-12C Switch, 12-Port, 40GbE, JL709A#ARE

VENDOR: HP Mfg Part#: JL709A#ARE UPC#: 190017405957
1 3

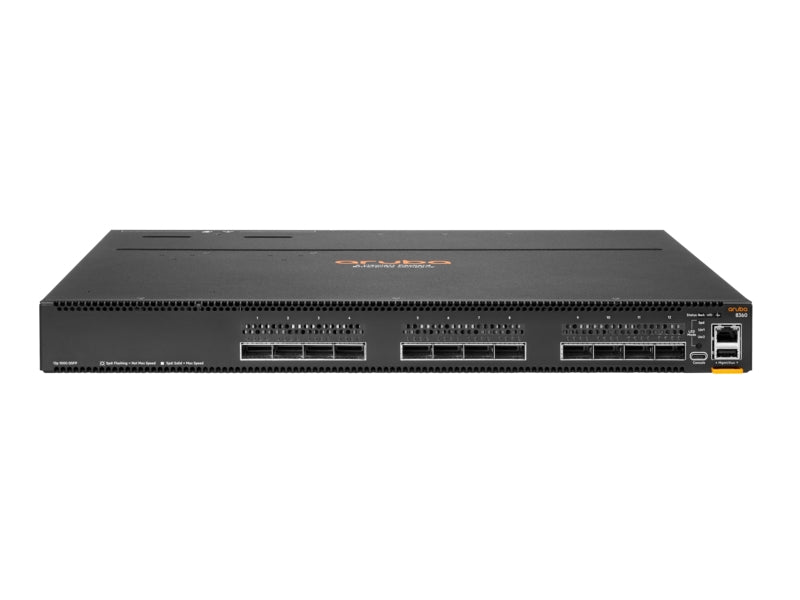

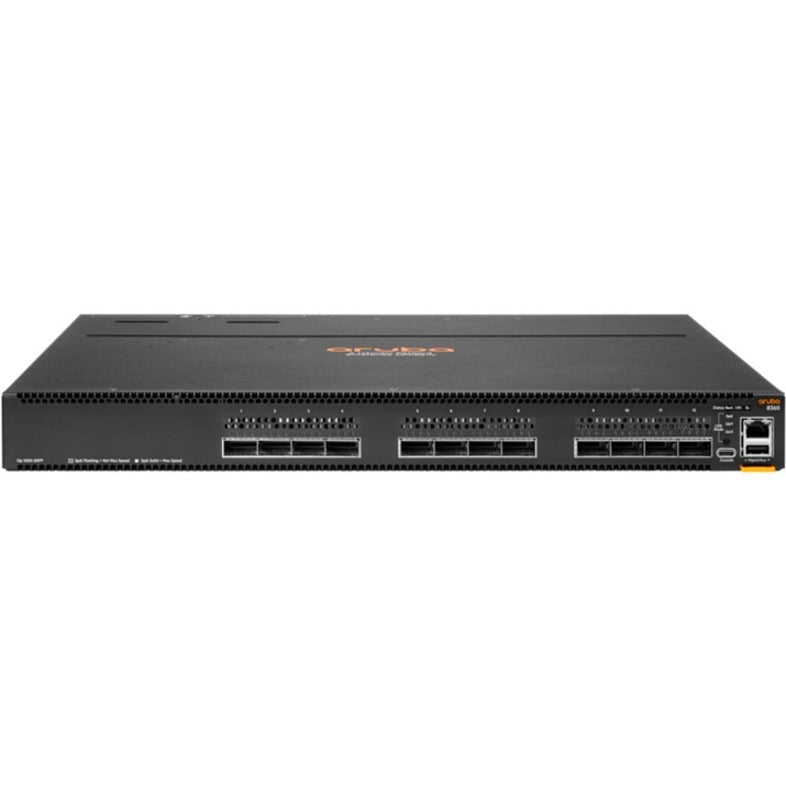

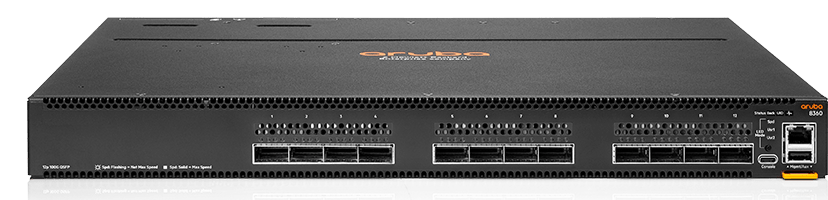

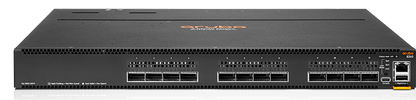

Photo is for illustration purposes only. Actual product may be different.
$28,513.05
$28,513.05
Sale Sold out
MSRP: $36,015.00
Shipping calculated at checkout.
  • 12 x 40 Gigabit Ethernet ports
  • 40Gbps total wired throughput
  • 16GB onboard memory, expandable to 32GB
  • TAA compliant for government use
  • Manufactured in Singapore
  • Bundled model: Pwr2Prt3F2PS

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-density 40GbE for demanding enterprise workloads.
  • TAA compliance ensures suitability for government and public sector bids.
  • Expandable memory configuration enables future-proofed scalability.

Product Overview

The HP Aruba 8360-12C (JL709A#ARE) is a next-generation switch engineered for advanced enterprise networking applications. With its 12-port configuration supporting 40 Gigabit Ethernet, this model delivers 40Gbps throughput—ideal for high-density traffic environments and mission-critical workloads. Whether deployed in data centers or campus aggregation layers, its performance aligns with the demands of cloud-scale and mobile-first infrastructures.

This model is TAA-compliant, making it suitable for government and public sector deployments. It includes 16GB of onboard memory and supports up to 32GB, allowing for enhanced processing of complex networking tasks. Manufactured in Singapore, it meets global quality standards. Though the specifics of the bundled configuration (Pwr2Prt3F2PS) are not detailed, it is tailored for flexible and reliable operation in modern network architectures.

While some technical specifications are not available, this switch is a solid choice for organizations aiming to build a scalable, high-performance network infrastructure with long-term ROI.

Specifications

Product Overview
Product Type Layer 3 Managed Ethernet Switch
Model HP Aruba 8360-12C
Part Number JL709A#ARE
Form Factor 1U Rack-mountable
Power Supply Dual Hot-swappable Power Supplies (AC or DC options)
Included Power Supplies PSU included (quantity may vary by bundle)
Power Consumption (Typical) 80W
Power Consumption (Maximum) 160W
Switching Capacity 960 Gbps
Forwarding Rate 714 Mpps
Memory 16 GB DDR4 SDRAM
Flash Storage 16 GB eMMC and 120 GB SSD
Expansion Slot Types 2x Integrated Fan Trays, Modular Power Supplies

Wireless Features

Compliance & Origin
Country of Origin Singapore
TAA Compliant Yes
Certifications UL, CSA, CB, CE, FCC Class A, VCCI, BSMI, C-Tick
RoHS Compliance Yes

Advanced Security Features
Access Control 802.1X, MAC-based authentication, Web-based authentication
Security Protocols RADIUS, TACACS+, SSH, SSL, SNMPv3
Policy-based Routing (PBR) Supported
Dynamic Segmentation Supported with Aruba ClearPass
Role-Based Access Control Yes
Encrypted Management Traffic Supported via SSH and HTTPS

Interfaces
Total Ports 12
Port Type QSFP+ (40GbE)
40 Gigabit Ethernet Ports 12 x 40GbE QSFP+
Data Transfer Rate per Port 40 Gbps
Aggregate Bandwidth 960 Gbps full duplex
Uplink Support Configurable via QSFP+ ports
USB Ports 1 x USB Type-A (out-of-band management)
Management Interface Ports 1 x RJ-45 console, 1 x RJ-45 management

Physical & Environmental
Dimensions (W x D x H) 43.97 x 50.8 x 4.39 cm
Weight 9.72 kg (21.43 lbs)
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Relative Humidity (Operating) 5% to 95%, non-condensing
Altitude (Operating) Up to 3,048 m (10,000 ft)
Cooling Front-to-back airflow with redundant fan trays
MTBF Over 1,000,000 hours

Cloud Management & Licensing
Network Management Aruba AOS-CX Network OS
Cloud Management Options Aruba Central (subscription required)
Management Access Web GUI, CLI, REST API, SNMP
License Requirements Some advanced features require additional licensing
