Products Memory, Storage and Components HPE 15.36TB NVMe RI SFF BC ...

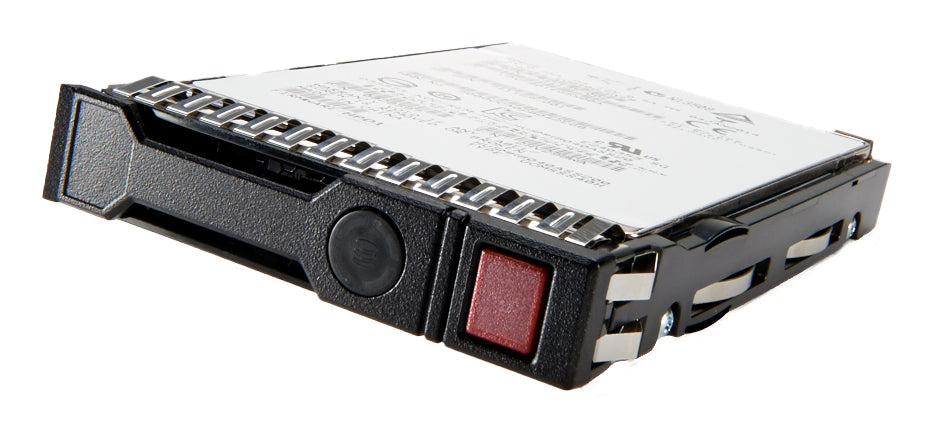

HPE 15.36TB NVMe RI SFF BC U.3 CM7 SSD

VENDOR: HP Mfg Part#: P63841-B21
1 1
Photo is for illustration purposes only. Actual product may be different.
$23,800.00
$23,800.00
Sale Sold out
Shipping calculated at checkout.
  • 15.36TB capacity in a 2.5-inch small form factor
  • NVMe U.3 interface for high-speed data access
  • Up to 1,225,944 IOPS random read and 326,121 IOPS random write
  • Read-intensive performance with 1 DWPD endurance
  • Hot-swappable with 25W power draw for operational efficiency
  • TAA compliant and covered by HPE's 3/0/0 warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for data-heavy applications with 15.36TB of high-speed NVMe storage.
  • Optimized for read-intensive environments with over 1.2 million IOPS performance.
  • Backed by HPE quality and a standard 3/0/0 warranty for enterprise confidence.

Product Overview

The HPE 15.36TB NVMe RI SFF BC U.3 CM7 SSD delivers high-capacity and high-speed read performance for enterprise environments. Featuring a 15.36TB capacity and a U.3 NVMe interface in a 2.5-inch form factor, it supports up to 1,225,944 IOPS read speed and 326,121 IOPS write speed. Its 1 DWPD endurance and 25W operational power make it ideal for read-intensive workloads like caching, email, social media, and boot/swap operations. With TAA compliance and a 3/0/0 warranty, it provides dependable ROI in data-driven installations.

Specifications

Product Overview
Product Type Solid State Drive (SSD)
Form Factor 2.5-inch SFF
Interface NVMe U.3
Capacity 15.36 TB
Drive Write Endurance (DWPD) 1
Power Consumption (Operational) 25 W
Hot Swap Support Yes
Target Workload Read-Intensive (RI)
Typical Use Cases Caching, social media, email, boot/swap
Model Number P63841-B21
Product Family HPE NVMe Read Intensive SSDs
Product Weight 0.68 kg

Physical & Environmental
Width 8.63 inch
Depth 9 inch
Height 5.75 inch
Weight 0.68 kg
Operating Temperature (Min) 0°C
Operating Temperature (Max) 60°C
Non-Operating Temperature (Min) -40°C
Non-Operating Temperature (Max) 85°C
Non-Operating Humidity (Max) 95% (non-condensing)
Shock (Operating) 1000 G/0.5 ms
Shock (Non-Operating) 1500 G/0.5 ms

Cloud Management & Licensing
Management Interface HPE Smart Carrier with status indicators
HPE SmartDrive Compatibility Yes
Tool-less Operation Supported via Smart Carrier

Interfaces
Interface Protocol NVMe 1.4
Interface Connector U.3 (Backplane Compatible)
Maximum 4KB Random Read IOPS 1,225,944 IOPS
Maximum 4KB Random Write IOPS 326,121 IOPS
Form Factor Interface SFF U.3 NVMe
Drive Interface Speed PCIe Gen4 x4

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications RoHS, CE, VCCI, FCC, UL
Warranty 3/0/0 (3-year limited warranty)
Environmental Certifications REACH Compliant
