Products Network Stuff IBM 64G 48-Port Fibre Chann...

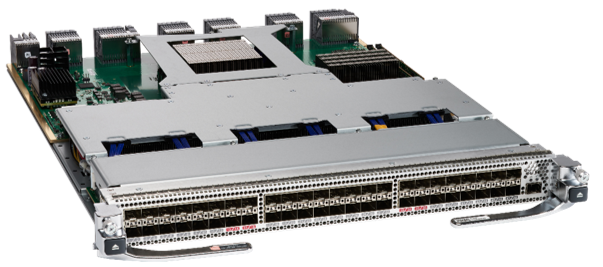

IBM 64G 48-Port Fibre Channel Module with 48x 64Gbps SW SFP+

VENDOR: CISCO Mfg Part#: 03FR192
1 2
Photo is for illustration purposes only. Actual product may be different.
$178,652.45
$178,652.45
Sale Sold out
MSRP: $262,023.59
Shipping calculated at checkout.
  • 48-port network module with 64Gbps per port speed
  • Plug-in module form factor for easy installation
  • Supports Fibre Channel and SFP+ interfaces
  • Gigabit Ethernet transport and data link protocol compatibility
  • TAA compliance ensures regulatory procurement alignment
  • Manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables ultra-fast 64Gbps throughput across 48 ports, ideal for data-intensive environments.
  • TAA compliance ensures suitability for government and enterprise-grade deployments.
  • Plug-in module design enables seamless integration into existing infrastructure.

Product Overview

The IBM 64G 48-Port Fibre Channel Module with 48x 64Gbps SW SFP+ is engineered for high-throughput enterprise environments. Offering 48 ports with 64Gbps each, this plug-in module delivers exceptional performance for fibre channel networking. Compatible with Gigabit Ethernet protocols and designed to support high-density, low-latency deployments, it’s also TAA compliant and manufactured in Mexico for regulatory assurance.

Specifications

Product Overview
Product Type Network Module
Form Factor Plug-In Module
Module Type Fibre Channel Switch Module
Designed For IBM Storage Networking SAN b-type platforms
Weight 1.6 kg
Power Requirements Typical 120W; Maximum 135W

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Compliance Standards RoHS, FCC Part 15 Class A
Certifications UL, CSA, CE Mark, VCCI, BSMI

Advanced Security Features
Authentication Role-based access control (RBAC), LDAP, RADIUS, TACACS+
Encryption In-flight encryption support (optional license)
Management Security HTTPS, SSHv2, SNMPv3
Zoning Support Yes, hardware-enforced zoning
Port Security DH-CHAP authentication

Interfaces
Ports 48 x Fibre Channel
Port Type SFP+
Installed Transceivers 48 x 64 Gbps SW SFP+
Data Transfer Rate 64 Gbps per port
Total Switching Capacity 3.2 Tbps
Interface Protocol Fibre Channel
Port Speed Options Auto-negotiation: 4/8/16/32/64 Gbps
Backplane Interface Ultra-low latency Fibre Channel switching fabric

Physical & Environmental
Dimensions (W x D x H) 35.56 cm x 29.21 cm x 3.48 cm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 10% to 85% (non-condensing)
Storage Humidity 10% to 90% (non-condensing)
Cooling Mechanism Air-cooled via chassis
MTBF Over 250,000 hours

Cloud Management & Licensing
Management Interface CLI, SNMP, and web-based GUI via chassis
Licensing Optional Feature and Performance licenses
Included Licenses Base port activation license for all 48 ports
Cloud Integration Supported through IBM b-type SAN management suites
