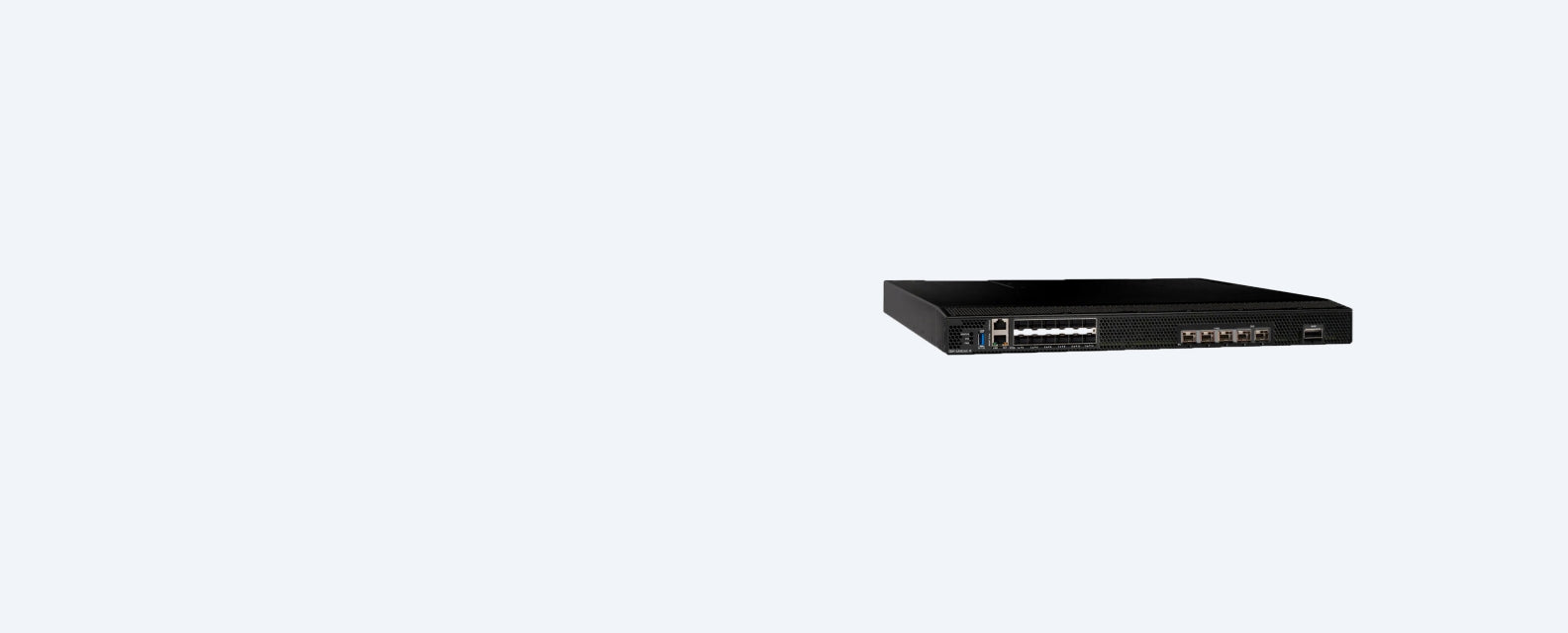

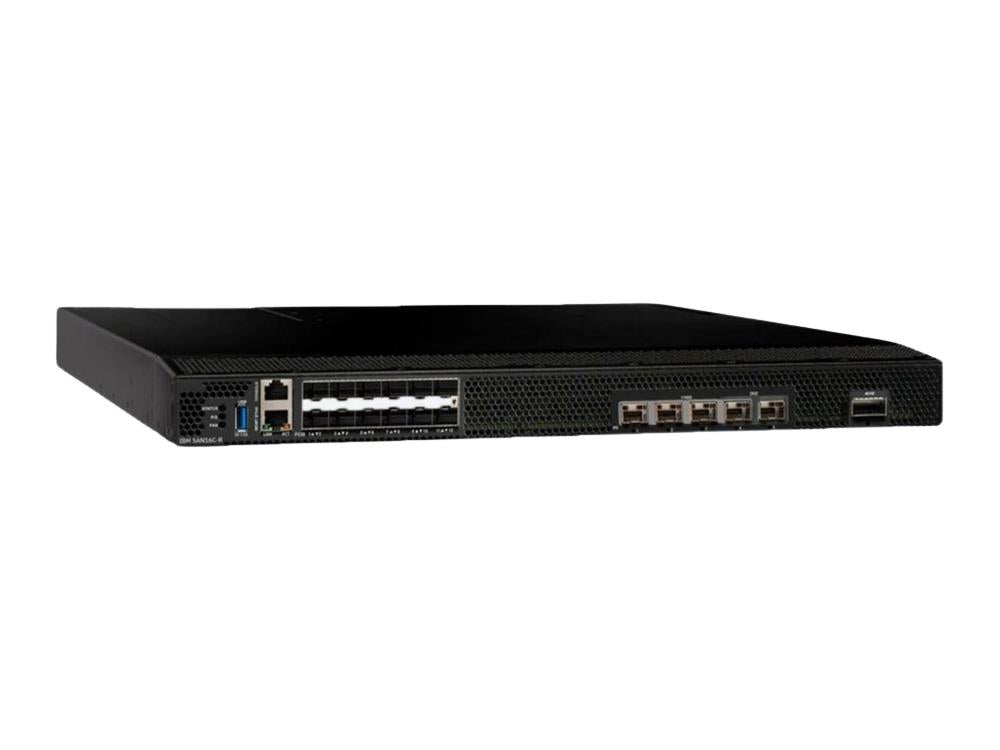

IBM SAN16C-R 32G Extension Switch – 4x32G FC, 2x1G FCIP, 1RU

VENDOR: CISCO Mfg Part#: 03FR026
  • The IBM SAN16C-R Extension Switch is a high-performance 1RU switch designed for enterprise storage networking. It features 4x32G Fibre Channel and 2x1G FCIP Ethernet interfaces, offering robust throughput up to 32Gbps. With advanced management capabilities and enterprise-grade security features, this switch ensures secure and efficient storage area networking.
1 1
Photo is for illustration purposes only. Actual product may be different.
$20,094.58
$20,094.58
Sale Sold out
MSRP: $29,228.49
Shipping calculated at checkout.
  • 4x32G Fibre Channel and 2x1G FCIP E interfaces for high-throughput SAN transport
  • 1RU rackmount design for space-efficient deployments
  • Remote management support via SSH, SNMP v3, HTTP, and HTTPS
  • Enterprise-grade security with AES encryption and RADIUS/TACACS+ authentication
  • Dual power supply configuration ensures power redundancy
  • Supports Inter-VSAN Routing for secure multi-zone communication
View full details

Key Benefits

Eye-Insights
  • Enables ultra-high-speed storage networking with 32Gbps Fibre Channel throughput for performance-critical environments
  • Secure and centralized network administration through advanced management protocols and encryption
  • Full TAA compliance and flexible IBM support plans allow for deployment in regulated industries and mission-critical use cases

Product Overview

The IBM SAN16C-R Extension Switch delivers ultra-fast 32Gbps fibre channel connectivity with 4x32G FC and 2x1G FCIP Ethernet interfaces. Housed in a 1RU form factor, it supports Inter-VSAN Routing and robust remote management via SSH, SNMPv3, HTTP, and HTTPS. Security is enforced through AES encryption and authentication protocols including RADIUS and TACACS+. With dual power supplies, multiple interface ports, and tolerance for varied environmental conditions, this switch is built for mission-critical enterprise storage networks. TAA compliance and flexible service options ensure it meets regulatory and operational requirements in government and corporate environments.

Specifications

Primary Information
Network Device Type Switch
Model SAN16C-R
Form Factor 1RU
Power / Device Type Power Supply
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Data Link Protocol Gigabit Ethernet
Power / Installed Qty 2
Features Inter-VSAN Routing (IVR); FCIP for remote SAN extension; Mainframe support; Advanced traffic management; Ease of management; Comprehensive solution for robust network security; Advanced diagnostics and troubleshooting tools; Advanced software packages

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
COO MEXICO
TAA compliance Yes
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
Remote Management Protocol SSH; SNMP 3; HTTP; HTTPS
Routing Protocol IPv6
Encryption Algorithm AES
Authentication Method RADIUS and TACACS+
Interfaces 4x32G FC and 2x1G FCIP E, Ethernet port, RS-232 port, USB port

Service&Support
Service & Support Type One-year, customer-replaceable unit (CRU), IBM On-Site Limited, 9x5 Next Business Day; 24×7 same-day maintenance service options are available

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 20.11 Inch
Height 1.72 Inch
Weight 9.8 Kg

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 4x32G FC and 2x1G FCIP E, Ethernet port, RS-232 port, USB port
