IBM SAN16C-R 32G Extension Switch Intake FRU, 1RU, 32 Gbps

VENDOR: CISCO Mfg Part#: 03FR029
1 1

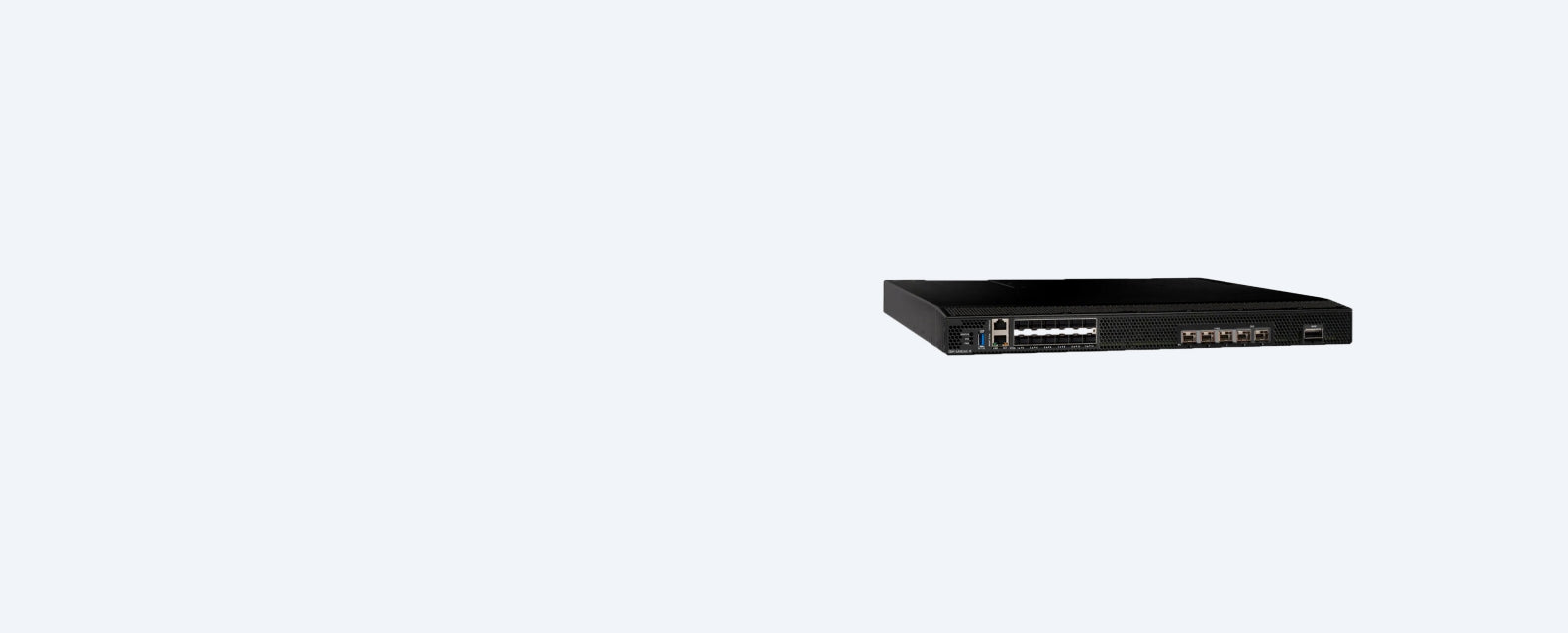

Photo is for illustration purposes only. Actual product may be different.
$9,015.20
$9,015.20
Sale Sold out
MSRP: $27,206.36
Shipping calculated at checkout.
  • 32 Gbps data transfer rate for high-speed fibre channel connectivity
  • 1RU form factor ideal for space-constrained data centers
  • Interfaces include Fibre Channel, Ethernet, RS-232, and USB
  • Supports SSH, SNMPv3, HTTPS for secure remote management
  • IPv6 routing with AES encryption and RADIUS/TACACS+ authentication
  • Dual installed power supplies for redundancy

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Optimized for enterprise environments with 32 Gbps throughput and robust protocol support
  • Secured management and authentication via SSH, HTTPS, AES, RADIUS, and TACACS+
  • Built for reliability with dual power units and extensive thermal operating ranges

Product Overview

The IBM SAN16C-R 32G Extension Switch Intake FRU, manufactured by Cisco, is a 1RU high-performance fibre channel switch designed for enterprise networks. It offers a robust 32 Gbps data transfer rate and supports a variety of wired interfaces, including Fibre Channel, Ethernet, RS-232, and USB. With embedded support for remote management and security protocols like SSH, SNMPv3, HTTPS, AES encryption, and RADIUS/TACACS+, it provides secure and scalable connectivity. Environmental durability spans from 0 to 40°C operating and -40 to 70°C storage temperature ranges. Key enterprise features include dual power supply redundancy and Inter-VSAN Routing (IVR), with compliance to TAA and IBM’s CRU and on-site service options for enhanced support.

Specifications

Product Overview
Manufacturer CISCO
Product Name IBM SAN16C-R 32G Extension Switch Intake FRU
Model SAN16C-R
Form Factor 1RU
Network Device Type Switch
Product Family Networking
Subcategory Switch
Type Fibre Channel Extension Switch
Weight 9.8 Kg
Power Supply Type Internal - Hot-swappable Redundant Power Supplies
Installed Power Supply Quantity 2
Voltage Required 100 - 240 VAC
Power Consumption (Max) 185 Watts

Physical & Environmental
Width 17.3 inch
Depth 20.11 inch
Height 1.72 inch
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Operating Humidity Range 10% to 85% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Cooling Type Front-to-Back Airflow (Intake)

Cloud Management & Licensing
Management Interface Cisco DCNM, CLI, GUI, SNMP, HTTPS
Remote Management Protocols SSH, SNMPv3, HTTP, HTTPS
License Type Optional Cisco MDS Enterprise License (for advanced features)
Included Features Inter-VSAN Routing (IVR), In-Service Software Upgrade (ISSU)

Interfaces
Data Transfer Rate 32 Gbps
Interface Types Fibre Channel, Gigabit Ethernet, RS-232, USB
Fibre Channel Ports 16 SFP+ Ports
10 Gigabit Ethernet Ports 2 Ports (SFP+)
Management Ports 1 x RJ-45 Console, 1 x USB, 1 x RJ-45 Management Ethernet
Expansion Slot Type SFP+
Out-of-Band Management 10/100 Management Ethernet Port, RS-232 Serial Console

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
Certifications RoHS, UL, CE, FCC Part 15, VCCI, EN55022

Advanced Security Features
Encryption Algorithm AES
Authentication Methods RADIUS, TACACS+
Access Control Role-Based Access Control (RBAC)
Security Management Secure Boot, SSH v2, SNMPv3, HTTPS
