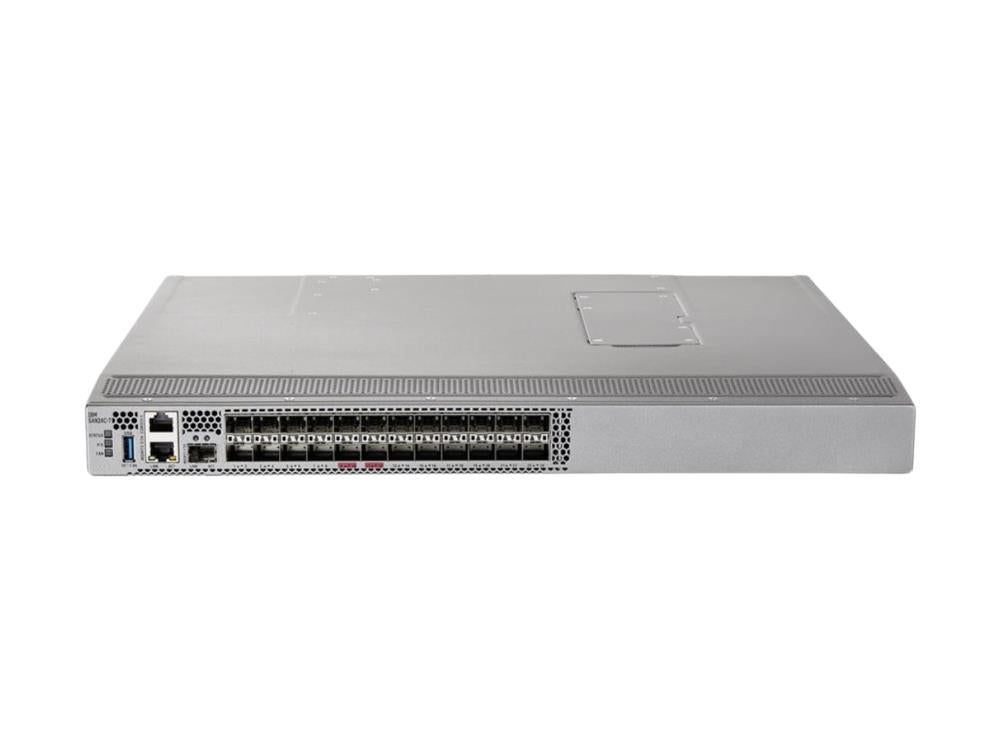

IBM SAN24C-7 64G 24-Port FC Fabric Switch PSE Base, Spare

VENDOR: CISCO Mfg Part#: 03FR188
1 1
Photo is for illustration purposes only. Actual product may be different.
$10,274.99
$10,274.99
Sale Sold out
MSRP: $15,069.98
Shipping calculated at checkout.
  • 64 Gbps data transfer rate enabling high bandwidth for storage applications
  • 24 Fibre Channel ports with additional 4 management/uplink ports (total 28 ports)
  • Compact 1RU form factor ideal for data center rack environments
  • Multiple interfaces: Fibre Channel, 10/100/1000 Ethernet, RS-232, USB
  • Secure-boot and anti-counterfeiting technology for enhanced hardware security
  • TAA compliant and manufactured in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-level Fibre Channel switching with 64 Gbps throughput to handle high-volume storage networks.
  • Compact 1RU size and multiple interface types provide flexibility for integration into existing IT infrastructures.
  • TAA compliance and advanced security features meet government and enterprise procurement standards.

Product Overview

The IBM SAN24C-7 64G 24-Port FC Fabric Switch PSE Base, Spare, manufactured by Cisco, delivers 64 Gbps data rates and supports 24 Fibre Channel ports within a compact 1RU chassis. Its comprehensive interface options—including Fibre Channel, Ethernet, RS-232, and USB—enhance its flexibility in enterprise deployments. Security is bolstered through secure-boot and anti-counterfeiting technology. Designed with a temperature operating range of 0 to 40°C and weighing 8.5 kg, the unit is built for the demands of data centers. Its TAA compliance supports procurement for public sector projects.

Specifications

Product Overview
Manufacturer CISCO
Model SAN24C-7
Product Name IBM SAN24C-7 64G 24-Port FC Fabric Switch PSE Base, Spare
Type Fibre Channel Fabric Switch
Form Factor 1RU
Weight 8.5 kg
Power Supply Type Hot-swappable AC power supplies
Redundant Power Supply Yes
AC Voltage Range 100–240 VAC
Frequency Required 50–60 Hz
Power Consumption (Typical) 105 W
Power Consumption (Maximum) 160 W

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Mexico
TAA Compliance Yes
RoHS Compliance Yes
EMC Standards FCC Part 15 Class A, ICES-003 Class A
Safety Certifications UL 60950-1, IEC 60950-1, EN 60950-1
CE Marking Yes

Advanced Security Features
Security Features Secure Boot, Anti-counterfeiting technology
Role-Based Access Control Yes
Access Control Lists (ACLs) Yes
Fabric Binding and Device Authentication Yes

Interfaces
Total Number of Ports 28
Fibre Channel Ports 24 x 64 Gbps Fibre Channel
Management Ethernet Ports 2 x 10/100/1000BASE-T
Console Port 1 x RS-232 (RJ-45)
USB Port 1 x USB 2.0 Type-A
Interface Types Fibre Channel, Ethernet, RS-232, USB
Port Speed 64 Gbps line rate with backward compatibility to 32/16/8 Gbps
Aggregate Switch Bandwidth 1.535 Tbps
Packet Buffer Memory 32 MB per ASIC

Physical & Environmental
Width 17.3 inch (439.42 mm)
Height 1.72 inch (43.7 mm)
Depth 18 inch (457.2 mm)
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 10% to 85% (non-condensing)
Storage Humidity Range 5% to 93% (non-condensing)
Cooling Front-to-back or back-to-front airflow
Mounting Type Rack-mountable

Cloud Management & Licensing
Management Interface CLI, Cisco Data Center Network Manager (DCNM)
Licensing Model Base and Optional Advanced Features Licenses
Included Software Cisco NX-OS
