Products Network Stuff IBM SAN24C-7 64G 24-Port FC...

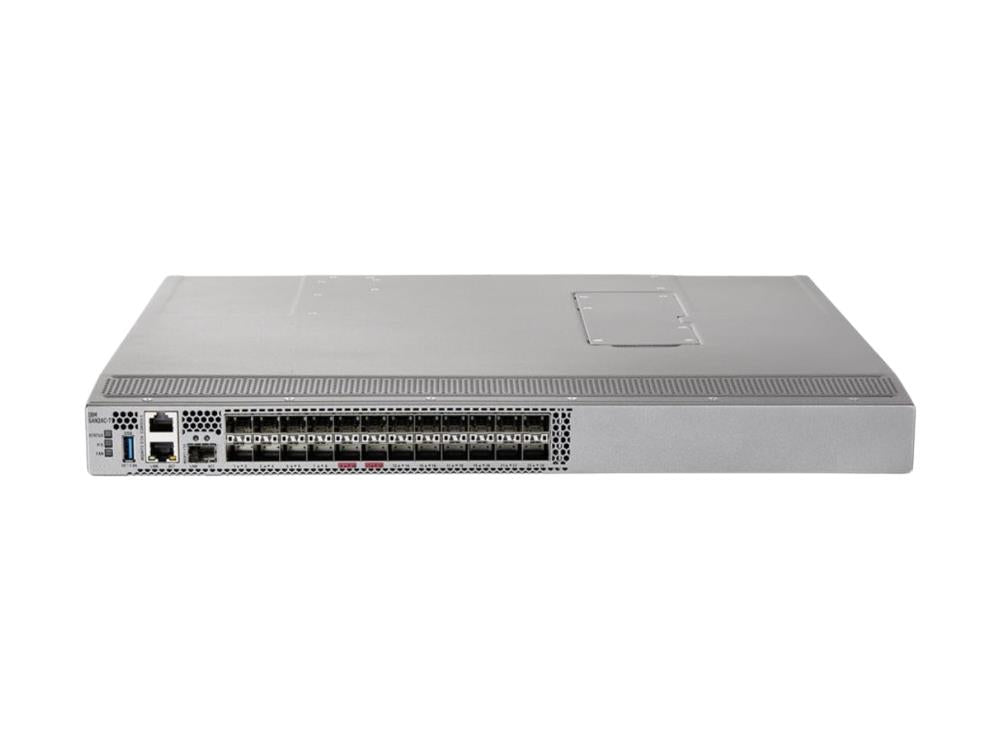

IBM SAN24C-7 64G 24-Port FC Fabric Switch PSI Base, Spare

VENDOR: CISCO Mfg Part#: 03FR189
1 1
Photo is for illustration purposes only. Actual product may be different.
$10,274.99
$10,274.99
Sale Sold out
MSRP: $15,069.98
Shipping calculated at checkout.
  • 28-port Fibre Channel switch with 64 Gbps data transfer rate
  • 1RU compact form factor ideal for rack environments
  • Multiple interface options: Fibre Channel, 10/100/1000 Ethernet, RS-232, USB
  • Secure-boot and anti-counterfeiting technologies integrated
  • TAA-compliant for government and regulated industry use
  • Operating temperature range from 0°C to 40°C with extended storage limits

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • High performance 64 Gbps Fibre Channel throughput supports fast, reliable storage networking.
  • Compact 1RU design allows easy integration into dense data center racks.
  • Built-in security features like secure-boot and anti-counterfeiting enhance infrastructure integrity.

Product Overview

The IBM SAN24C-7 64G 24-Port FC Fabric Switch PSI Base is a high-performance Fibre Channel switch designed for enterprise SAN operations. Featuring 28 total ports and a 64 Gbps transfer rate within a compact 1RU form factor, it facilitates efficient storage networking. Integrated secure-boot and anti-counterfeiting technologies help ensure operational integrity, while compliance with TAA regulations makes it ideal for government and regulated industries. Suited for a range of deployments, this switch provides strong performance and environmental resilience.

Specifications

Product Overview
Manufacturer CISCO
Product Name IBM SAN24C-7 64G 24-Port FC Fabric Switch PSI Base, Spare
Part Number 03FR189
Model SAN24C-7
Type Fibre Channel Fabric Switch
Form Factor 1RU
Connectivity Technology Wired
Weight 8.5 Kg
Power Supply Type Internal Power Supply
Input Voltage 100 to 240 VAC
Power Supply Redundancy Optional Redundant Power Supplies
Hot-Swap Power Supply Support Yes

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
FCC Compliance Class A
UL Certification Yes
CSA Certified Yes

Advanced Security Features
Secure Boot Yes
Anti-counterfeit Technology Enabled
Role-Based Access Control (RBAC) Yes
AAA Support TACACS+, RADIUS
Access Control Lists (ACLs) Yes
Port Security Yes
Authenticated Network Access Yes
Logging and Monitoring Syslog, RMON, SNMP traps

Interfaces
Total Ports 28
Fibre Channel Ports 24 x 64 Gbps Fibre Channel
Ethernet Management Ports 2 x 10/100/1000BASE-T
Console Ports 1 x RS-232
USB Ports 1 x USB 2.0 Type-A
Data Transfer Rate 64 Gbps
Port Speed Auto Negotiation Yes
Data Link Protocol Fibre Channel, Ethernet
Backplane Bandwidth Up to 2.56 Tbps
Forwarding Bandwidth Up to 1.3 Tbps
Switching Capability Cut-through and Store-and-forward

Physical & Environmental
Width 17.3 Inch
Depth 18 Inch
Height 1.72 Inch
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 10% to 85% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Acoustic Noise Level < 65 dB
Cooling Type Front-to-rear airflow (fan-based)

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, Cisco DCNM
SNMP Support Yes
Web-Based Management Yes
Supported Management Protocols Telnet, SSHv2, SNMPv1/2/3, RMON
Configuration Management Cisco Data Center Network Manager
Licensing Model Base and optional Performance/Enterprise licenses
