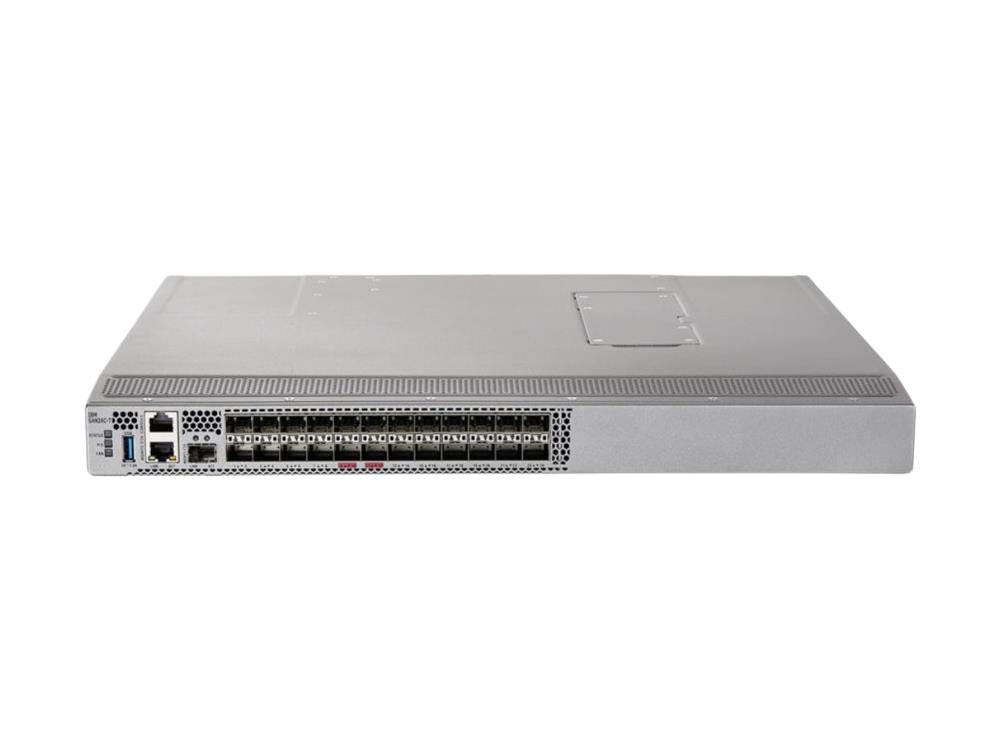

IBM SAN24C-7 64G 24-Port FC Fabric Switch with 24x 32G Optics

VENDOR: CISCO Mfg Part#: 03FR185
  • The IBM SAN24C-7 is a high-performance 64G Fibre Channel switch designed to provide robust, scalable, and secure connectivity. Equipped with 24 32G optics and featuring 28 total ports, this switch offers enterprise-class performance in a compact 1RU form factor. Ideal for data-intensive environments requiring reliable storage networking.
1 1
Photo is for illustration purposes only. Actual product may be different.
$39,857.49
$39,857.49
Sale Sold out
Shipping calculated at checkout.
  • 64 Gbps data transfer rate for high-performance SAN operations
  • 28 networking ports including 24 Fibre Channel ports with 32G optics
  • Compact 1RU rackmount form factor optimized for data center deployment
  • Advanced secure-boot and anti-counterfeiting technology
  • Wide operating temperature range (0°C to 40°C)
  • Multiple connectivity options: Fibre Channel, Ethernet, RS-232, USB
View full details

Key Benefits

Eye-Insights
  • Delivers blazing-fast Fibre Channel speeds up to 64 Gbps, ideal for enterprise storage networks
  • Equipped with advanced security features including secure-boot, enhancing data integrity and trust
  • Space-efficient 1RU design with 28 flexible ports helps reduce rack space and operational costs

Product Overview

The IBM SAN24C-7 delivers a powerful combination of performance, scalability, and reliability for modern SAN environments. With 24 Fibre Channel ports featuring 32G optics and a total of 28 ports, it supports up to 64 Gbps data transfer rates, ideal for high-throughput demands. Housed in a 1RU form factor, it is space-efficient and includes advanced hardware security features such as secure-boot. Operating temperatures range from 0°C to 40°C, with storage support from -40°C to 70°C, ensuring robust field deployments. Multiple interface options, including Ethernet, Fibre Channel, RS-232, and USB, allow for broad compatibility in enterprise networks.

Specifications

Primary Information
Network Device Type Switch
Model SAN24C-7
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 64 Gbps
Networking / Ports Qty 28
Data Link Protocol Gigabit Ethernet
Power / Device Type Power Supply
Features Secure-boot and anti-counterfeiting technology; Fully integrated SAN analytics; Dynamic Ingress Rate Limiting; Intelligent services; Sophisticated diagnostics tools; Buffer-to-Buffer State Change Notification

Interfaces / Ports
Interfaces Fibre Channel , 10/100/1000 Ethernet port, RS-232 port, USB port
10/100/1000BASE-T Ports 2

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
10/100/1000BASE-T Ports 2
Interfaces Fibre Channel , 10/100/1000 Ethernet port, RS-232 port, USB port

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 18 Inch
Height 1.72 Inch
Weight 8.5 Kg

UNSPSC Code
UNSPSC Code 43222612
