Products Network Stuff IBM SAN32C-6 24-Port 32G Sw...

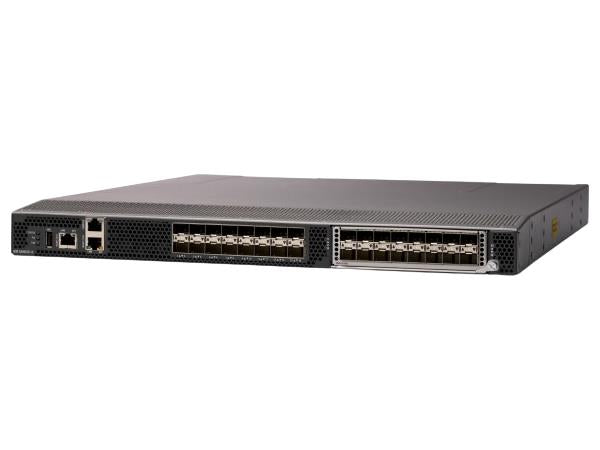

IBM SAN32C-6 24-Port 32G Switch with SFP, Exhaust - 03FR065

VENDOR: CISCO Mfg Part#: 03FR065
  • No_media_available
1 0
Photo is for illustration purposes only. Actual product may be different.
$25,001.90
$25,001.90
Sale Sold out
MSRP: $36,669.44
Shipping calculated at checkout.
  • - 24-port 32Gbps Fibre Channel switch in compact 1RU form factor
  • - Equipped with 36 total ports, including 2x 10/100/1000BASE-T management interfaces
  • - Supports SNMPv3, SSH, and HTTPS for secure remote management
  • - AES encryption with RADIUS and TACACS+ authentication
  • - Includes Fibre Channel, Ethernet, RS-232, and USB interfaces
  • - Operates between 0°C to 40°C; TAA compliant and built in Mexico

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Offers high 32Gbps Fibre Channel throughput, ideal for demanding SAN environments
  • - Secure and simplified management with SNMPv3, SSH, HTTPS and strong authentication protocols
  • - Backed by IBM’s enterprise support options, including on-site and same-day maintenance plans

Product Overview

The IBM SAN32C-6 is a 24-port enterprise fabric switch delivering 32Gbps fibre channel performance in a compact 1RU chassis. Manufactured by Cisco and backed by IBM's enterprise-class support, it is optimized for high-speed and high-density SAN deployments. Supporting advanced security protocols such as AES encryption, RADIUS, and TACACS+ authentication, the unit is TAA compliant and built for secure data center environments.

This wired switch provides 36 ports (24 active SFP+ at launch), with additional Ethernet management ports and interfaces including RS-232 and USB. It supports remote configuration via SNMPv3, SSH, and HTTPS, simplifying administration while maintaining enhanced security. Operating within a 0–40°C range and featuring LED status indicators, the unit is built for uptime and performance. Its form factor (17.3"W x 20.11"D x 1.72"H) and exhaust airflow design make it ideal for space-constrained data environments.

The IBM SAN32C-6 is ideal for enterprise data centers requiring efficient SAN connectivity, low latency, and robust maintenance support with service options tailored to business needs.

Specifications

Product Overview
Manufacturer CISCO
Model SAN32C-6
Product Name IBM SAN32C-6 24-Port 32G Switch with SFP, Exhaust
Manufacturer Part Number 03FR065
Product Type Fibre Channel SAN Switch
Form Factor 1RU
Connectivity Technology Wired
Power Supply Type Hot-swappable redundant power supplies (AC or DC variants)
Power Requirements 100–240V AC, 50–60Hz
Power Consumption (Typical) 130W (typical)
Weight Approximately 16.05 lbs (7.28 kg) with two PSUs and fans

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Safety Certification UL, CSA, IEC60950-1, EN60950-1
EMC Certification FCC Part 15 Class A, EN55032 Class A, EN55024
Environmental Standards RoHS-compliant

Advanced Security Features
Authentication Support RADIUS, TACACS+
Encryption Protocols AES Encryption
Role-Based Access Control (RBAC) Yes
Secure Boot and Firmware Validation Yes
Network Access Control Port security and device identity verification

Interfaces
Total Ports 36
Active Ports at Launch 24
Port Type SFP+ Fibre Channel
Maximum Port Speed 32 Gbps
Data Link Protocol Fibre Channel
10/100/1000BASE-T Ports 2
Console Ports 1 x RS-232 (RJ-45)
USB Ports 1 x USB Type A
Cabling Type Optical fiber

Physical & Environmental
Width 17.3 in (439.42 mm)
Depth 20.11 in (510.79 mm)
Height 1.72 in (43.69 mm)
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Min Storage Temperature -40°C
Max Storage Temperature 70°C
Operating Humidity Range 10% to 85% (non-condensing)
Storage Humidity Range 5% to 95% (non-condensing)
Airflow Direction Port-side exhaust airflow
Status Indicators LED indicators for port status and system health

Cloud Management & Licensing
Management Interface CLI via SSH, HTTPS GUI, SNMPv3
Remote Management Protocols SSH, SNMPv3, HTTPS
Supported Management Tools Cisco Data Center Network Manager (DCNM)
Licensing Model Base and Optional Advanced Features Licensing
Included Licenses Base switch license
