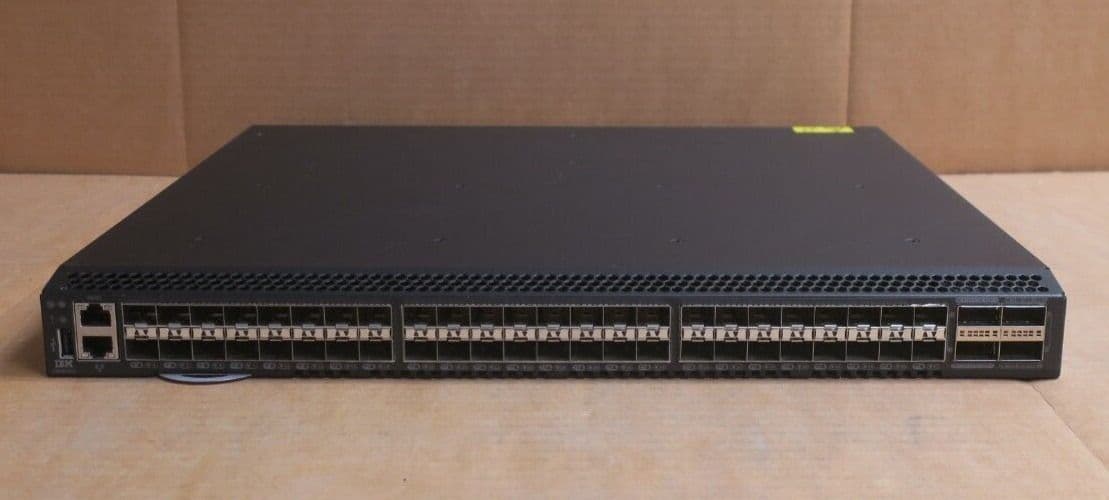

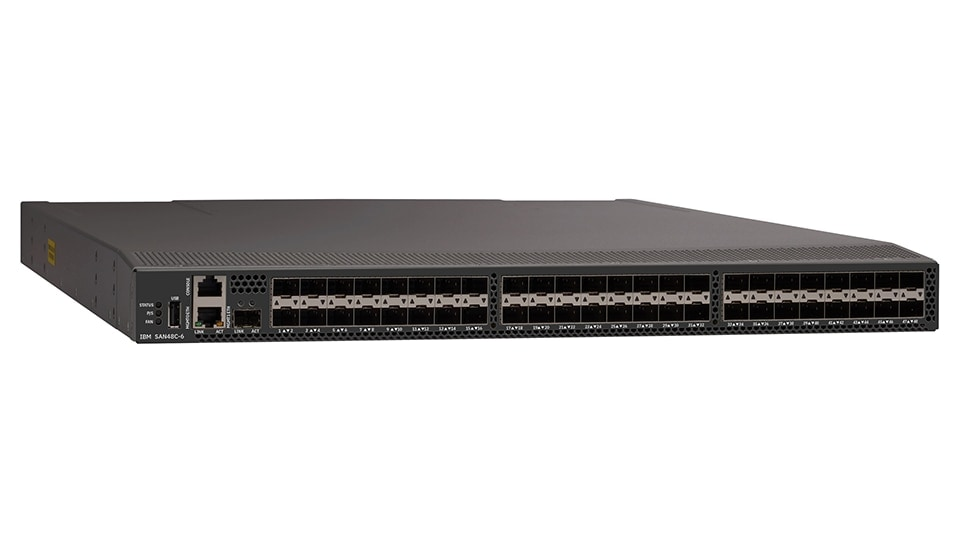

IBM SAN48C-6 32G 48-Port FC Fabric Switch

VENDOR: CISCO Mfg Part#: 02JD725
1 3
Photo is for illustration purposes only. Actual product may be different.
$18,522.11
$18,522.11
Sale Sold out
MSRP: $27,165.75
Shipping calculated at checkout.
  • 32 Gbps Fibre Channel data transfer rate for high-speed SAN connectivity
  • 48 Fibre Channel ports among a total of 52 ports for scalable deployments
  • 1RU form factor designed for space-constrained data centers
  • Interfaces include Fibre Channel, RJ-45, RS-232, and USB
  • SNMP remote management and LED status indicators for visibility
  • TAA compliant and operating temperature range from 0°C to 40°C

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed SAN fabric integration with 32 Gbps Fibre Channel performance
  • Consolidates infrastructure with a 48-port scalable design in a 1RU footprint
  • Engineered for enterprise environments with remote SNMP management and multi-interface support

Product Overview

The IBM SAN48C-6 32G 48-Port FC Fabric Switch delivers ultra-fast 32 Gbps Fibre Channel performance in a compact 1RU form factor, tailored for enterprise storage networks. Offering 52 ports including 48 Fibre Channel interfaces, it is built for high-density connectivity and SAN fabric consolidation. It features SNMP-based management, diverse interface support (RJ-45, RS-232, USB), and provides dependability in varied environmental conditions. With TAA compliance and redundant 650W power, this switch is designed to power mission-critical applications efficiently.

Specifications

Product Overview
Manufacturer CISCO
Product Name IBM SAN48C-6 32G 48-Port FC Fabric Switch
Manufacturer Part Number 02JD725
Model SAN48C-6
Network Device Type Switch
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Weight 21.2 lbs (9.6 kg)
Power Requirements 100 to 240 VAC, 50/60 Hz
Power Provided Dual redundant 650W power supplies

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, Cisco Data Center Network Manager (DCNM), SNMPv3
Remote Management Protocols SNMP v1, v2c, v3; Telnet; SSH; HTTPS
Licensing Model Port Activation Licensing (POD - Ports On Demand)
Included Licenses Base switch comes with 24 active ports enabled
Cloud Monitoring Support Via Cisco DCNM for centralized SAN management

Physical & Environmental
Width 17.3 in (439.42 mm)
Depth 22.3 in (566.42 mm)
Height 1.72 in (43.7 mm)
Min Operating Temperature 0 °C (32 °F)
Max Operating Temperature 40 °C (104 °F)
Min Storage Temperature -40 °C (-40 °F)
Max Storage Temperature 70 °C (158 °F)
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing
Cooling System Redundant hot-swappable fans, front-to-back airflow

Interfaces
Total Ports 52
Fibre Channel Ports 48 x 32-Gbps auto-negotiating FC ports (SFP+)
SFP+ Uplink Expansion Ports 4 ports
Interface Types Fibre Channel, RJ-45, RS-232, USB
Console Port 1 x RJ-45
USB Ports 1 x USB 2.0 Type-A
Management Port 1 x 10/100/1000 Ethernet (RJ-45)
Out-of-Band Management 1 x RJ-45
Data Link Protocol Fibre Channel
Port Speed Auto-sensing 8/16/32 Gbps

Advanced Security Features
Role-Based Access Control (RBAC) Yes
Secure Management SSH, HTTPS, SNMPv3
Port Security Yes
Fibre Channel Zoning Support Yes - hardware-enforced
Secure Boot and BIOS Authentication Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications and Standards FCC Part 15 Class A, ICES-003 Class A, UL 60950-1, RoHS
