IBM SAN48C-6 32G FC Switch with 24 Optics, 48-Port, 1RU

VENDOR: CISCO Mfg Part#: 02JD726
  • The IBM SAN48C-6 is a high-performance 32G Fibre Channel fabric switch designed for scalable SAN deployments. With 48 ports and 24 pre-installed 32G optics, this compact 1RU unit provides enterprise-level connectivity and enhanced manageability through SNMP. Ideal for data centers requiring dense Fibre Channel configurations and lower TCO.
1 1

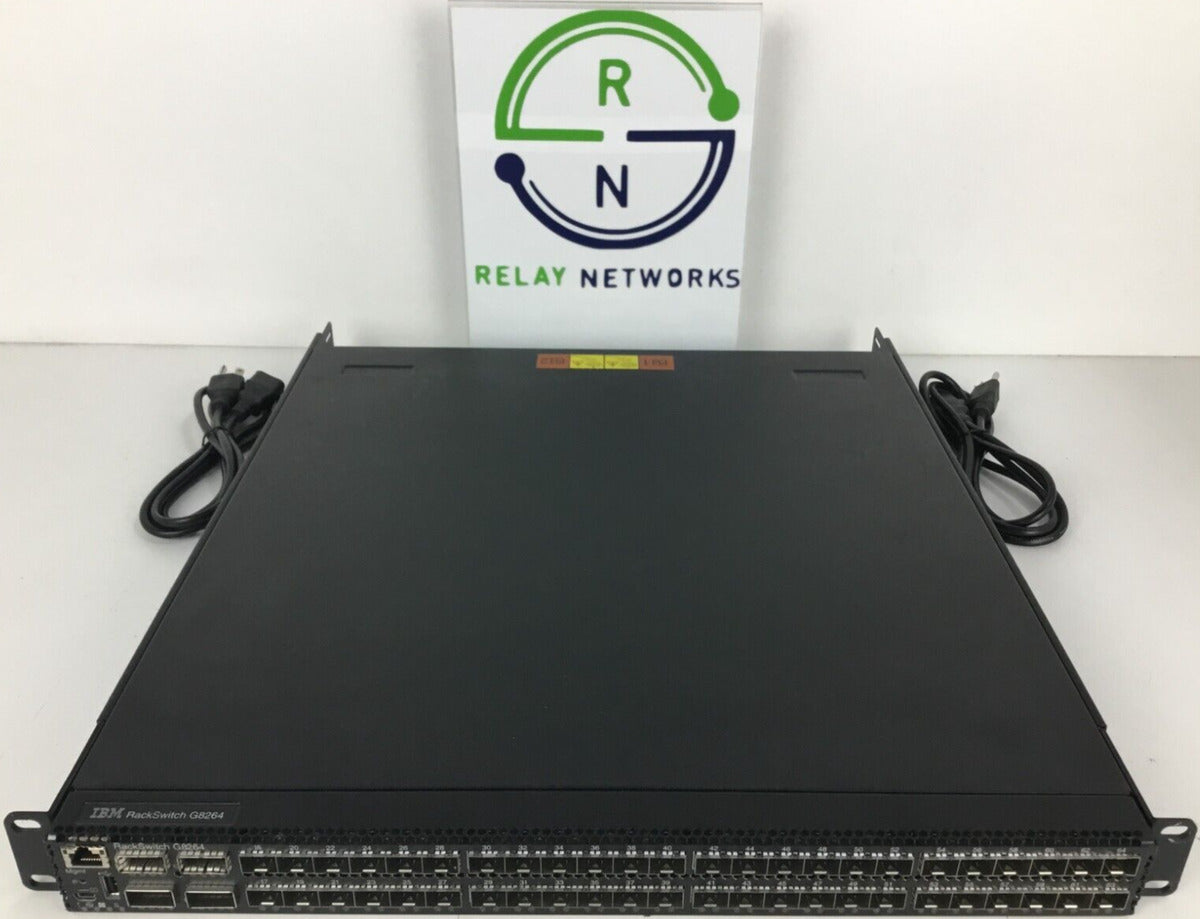

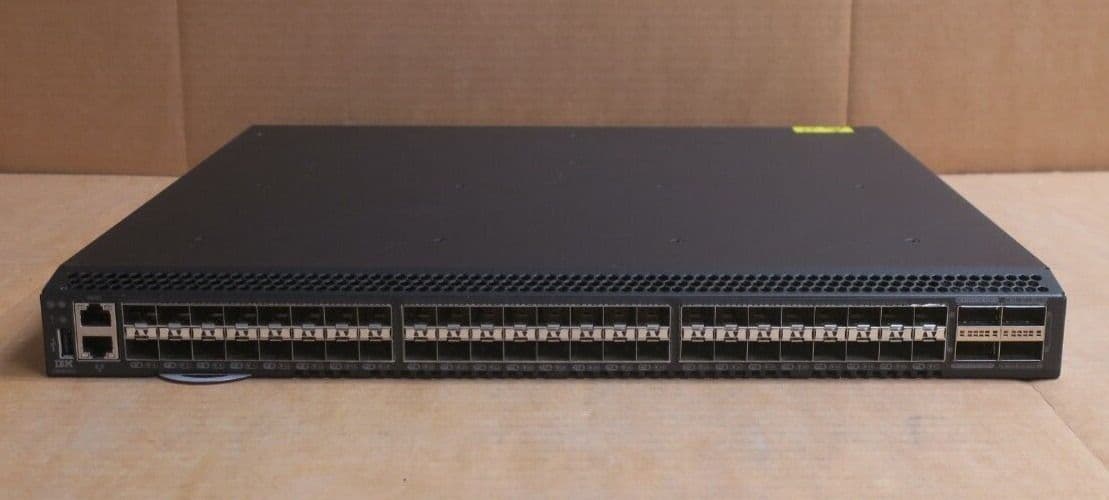

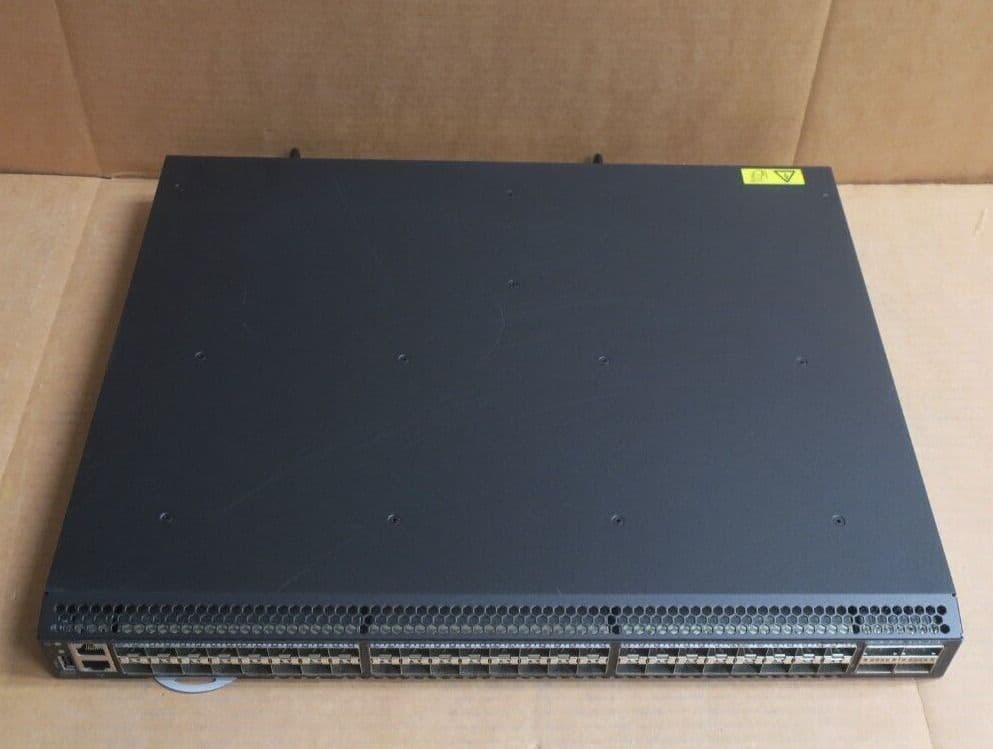

Photo is for illustration purposes only. Actual product may be different.
$33,951.52
$33,951.52
Sale Sold out
Shipping calculated at checkout.
  • 48 x 32G Fibre Channel ports for high-bandwidth SAN connectivity
  • Includes 24 pre-installed 32G optics for plug-and-play deployment
  • 1RU form factor enables compact, dense rack integration
  • Supports SNMP for streamlined remote management and monitoring
  • Connectivity via Fibre Channel, RJ-45, RS-232, and USB interfaces
  • Operates within 0°C to 40°C range and supports TAA compliance
View full details

Key Benefits

Eye-Insights
  • Optimized for SAN consolidation to reduce total cost of ownership (TCO)
  • Includes 24 optics, providing immediate 32G connectivity with no additional configuration
  • Compact 1RU design saves rack space while delivering high port density

Product Overview

The IBM SAN48C-6 is a 48-port, 32G Fibre Channel switch in a compact 1RU form factor, ideal for dense SAN environments. It includes 24 pre-installed 32G optics and delivers 32 Gbps data transfer. Interface options span Fibre Channel, RJ-45, RS-232, and USB, with SNMP support for efficient remote management. Compatible with voltage ranges of 100–240 VAC via a 650W power supply, it's TAA-compliant and designed for operation in varied environmental conditions, making it a robust solution for enterprise data centers.

Specifications

Primary Information
Network Device Type Switch
Model SAN48C-6
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Networking / Ports Qty 52
Data Link Protocol Gigabit Ethernet
Status Indicators LED Indicators
Power / Device Type Power Supply
Power / Provided (W) 650 Watt
Power / Voltage Required 100 to 240 VAC
Features Lowers TCO with SAN consolidation; Leverages IBM Storage Networking c-type family components; Provides enterprise-class availability; Transforms businesses with enterprise cloud deployment; Simplifies IT management; Supports robust security; Offers advanced diagnostics and troubleshooting tools

Interfaces / Ports
Interfaces Fibre Channel, RJ-45, RS-232, USB

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
Remote Management Protocol SNMP
Interfaces Fibre Channel, RJ-45, RS-232, USB

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 22.3 Inch
Height 1.72 Inch

UNSPSC Code
UNSPSC Code 43222612
