Products Network Stuff IBM SAN96C-6 32G 96-Port FC...

IBM SAN96C-6 32G 96-Port FC Fabric Switch + 48 32G Optics

VENDOR: CISCO Mfg Part#: 02JD732
1 1

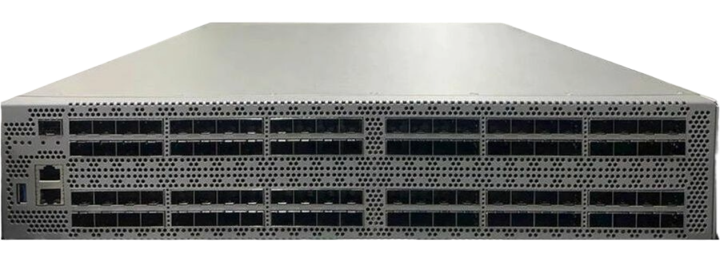

Photo is for illustration purposes only. Actual product may be different.
$37,729.04
$37,729.04
Sale Sold out
MSRP: $113,859.92
Shipping calculated at checkout.
  • • 96 SFP+ Fibre Channel ports with 48 x 32G optics included
  • • 32 Gbps data transfer rate for high-speed SAN networking
  • • Multi-interface support: FC, Ethernet, RS-232, USB
  • • Secure remote management via SSH, SNMPv3, and HTTPS
  • • AES encryption with RADIUS and TACACS+ authentication
  • • Compact 1RU form factor with 600W power supply

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • • Supports dense, high-performance SANs with 96-port scalability and 32G bandwidth
  • • Enterprise-grade security features including AES encryption and centralized authentication
  • • Remote management flexibility with multi-protocol access for streamlined administration

Product Overview

The IBM SAN96C-6 32G 96-Port FC Fabric Switch + 48 32G Optics is a powerful data center networking solution tailored for mission-critical storage area networks. Designed in a compact 1RU form factor, it supports up to 96 SFP+ Fibre Channel ports with included 48x 32G optics, enabling scalable bandwidth and high-throughput SAN connectivity. With a total of 100 available port connections and a consistent data rate of 32 Gbps, it's built to handle dense workloads and large-scale deployments with ease.

Featuring multi-protocol remote management support including SSH, SNMPv3, and HTTPS, the SAN96C-6 provides secure out-of-band administration. Enhanced with AES encryption and RADIUS/TACACS+ authentication, it ensures data integrity and access control. Interfaces include Fibre Channel, 10/100/1000 Ethernet, RS-232, and USB for versatile integrations. The device is powered by a 600W power supply and operates within a temperature range of 0°C to 40°C, withstanding storage conditions from -40°C to 70°C. LED status indicators and TAA compliance underscore its data center-grade design.

Backed by next-generation Cisco ASICs, the SAN96C-6 is optimized for performance and energy efficiency. It is a robust choice for enterprises seeking to modernize their Fibre Channel infrastructure with reliable and scalable switching capability.

Specifications

Product Overview
Manufacturer Cisco
Model Name SAN96C-6
Manufacturer Part Number 02JD732
Product Type Fibre Channel Fabric Switch
Form Factor 1RU
Included Optics 48 x 32G SFP+
Switch Capacity 6.4 Tbps
Forwarding Rate 3.2 Bpps
Switching Fabric Non-blocking
Power Supply Type AC
Power Supply 600W
Voltage Required 100 to 240 VAC
Redundant Power Support Yes

Wireless Features

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliant Yes
Certifications UL, CE, FCC Part 15 Class A

Advanced Security Features
Encryption Protocol AES
Authentication Methods RADIUS, TACACS+
Secure Management Access Yes, via SSH/HTTPS
Port Security Yes
Enhanced Zoning Yes
Traffic Isolation Yes
FIPS 140-2 Compliance Yes

Interfaces
SFP+ Ports 96
10/100/1000BASE-T Ports 2
Console Ports 1 x RS-232
Management Interfaces 1 x USB, 1 x RJ-45 Ethernet
Total Port Count 100
Interface Types Fibre Channel, Ethernet, USB, RS-232
Port Speed 32 Gbps Fibre Channel
Data Link Protocol Gigabit Ethernet

Physical & Environmental
Width 17.3 in (43.9 cm)
Depth 22.3 in (56.6 cm)
Height 1.72 in (4.37 cm)
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Cooling Front-to-back airflow
LED Status Indicators Yes

Cloud Management & Licensing
Remote Management Protocols SSH, SNMPv3, HTTPS
Management Software Compatibility Cisco Data Center Network Manager (DCNM)
Command Line Interface (CLI) Yes
API Support Yes (XML and REST APIs)
